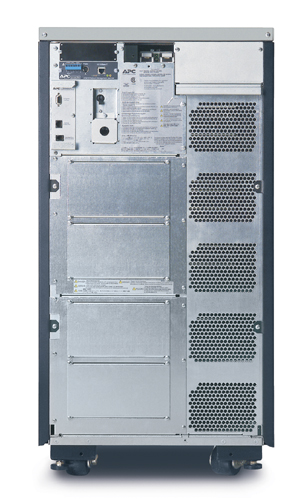

APC (SYA16K16I) SYMMETRA LX 16KVA > 16KVA NW1 TOWER, 220/230/240V OR 380/400/415V
Power & UPS > UPS Systems
- Brand: APC
- Category: UPS Systems
- SKU: SYA16K16I
- MPN: SYA16K16I
APCAPC Symmetra LX 16kVA Scalable to 16kVA N+1 Tower, 220/230/240V or…
- SKU
- CNZ-DD-042513
- MPN
- SYA16K16I
Overview
High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
Key features
- Output power capacity: 16 kVA
- Output power: 11200 W
- Emergency Power Off (EPO): Yes
- AC outlet types: Hardwire
- Typical backup time at full load: 7.5 min
- Typical backup time at half load: 20.3 min
- Replacement battery cartridge: SYBT5
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 45 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Weight: 308 kg
- Harmonized System (HS) code: 85078000
- Total carbon footprint (kg of CO2e): 53926.34
- I/O ports: Available Smart Slot Interface Quantity - 1
Pre-Installed SmartSlot Cards - AP9619
- Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
- Interface: DB-9 RS-232, Smart-Slot
- Output connections: (1) Hard Wire 3-wire (H N + G)
- Input connection type: Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Dimensions (WxDxH): 480 x 730 x 940 mm
- Nominal output voltage: 230 V
- Output voltage note: Configurable for 220: 230 or 240 nominal output voltage
Specifications
Battery
| Typical backup time at full load | 7.5 min |
|---|
| Typical backup time at half load | 20.3 min |
|---|
| Replacement battery cartridge | SYBT5 |
|---|
Features
| Output power capacity | 16 kVA |
|---|
| Output power | 11200 W |
|---|
| Emergency Power Off (EPO) | Yes |
|---|
Logistics data
| Harmonized System (HS) code | 85078000 |
|---|
| Total carbon footprint (kg of CO2e) | 53926.34 |
|---|
Other features
| I/O ports | Available Smart Slot Interface Quantity - 1
Pre-Installed SmartSlot Cards - AP9619 |
|---|
| Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
|---|
| Interface | DB-9 RS-232, Smart-Slot |
|---|
| Output connections | (1) Hard Wire 3-wire (H N + G) |
|---|
| Input connection type | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
|---|
| Dimensions (WxDxH) | 480 x 730 x 940 mm |
|---|
| Nominal output voltage | 230 V |
|---|
| Output voltage note | Configurable for 220: 230 or 240 nominal output voltage |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
