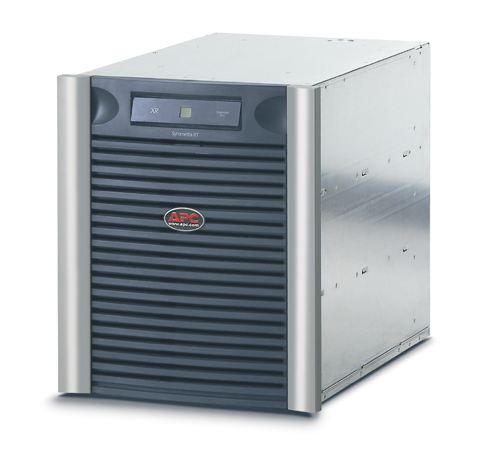

APC Symmetra LX 8kVA Scalable to 8kVA N+1 Rack-mount, 220/230/240V…

Overview

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.

Output power capacity: 8 kVA
Output power: 5600 W
Emergency Power Off (EPO): Yes
AC outlet types: IEC 60320
Typical backup time at full load: 7.5 min
Typical backup time at half load: 20.2 min
Replacement battery cartridge: SYBT5
Product colour: Black
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Weight: 178 kg
Harmonized System (HS) code: 85078000
Total carbon footprint (kg of CO2e): 30526.44
I/O ports: Available Smart Slot Interface Quantity - 1 Pre-Installed SmartSlot Cards - AP9619
Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Interface: DB-9 RS-232, Smart-Slot
Output connections: (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (6) IEC 320 C19
Input connection type: Hard Wire 3 wire (1PH+N+G)
Dimensions (WxDxH): 470 x 690 x 570 mm
Nominal output voltage: 230 V
Output voltage note: Configurable for 220: 230 or 240 nominal output voltage

At a glance

Product colour	Black
Typical backup time at full load	7.5 min
Typical backup time at half load	20.2 min
Replacement battery cartridge	SYBT5
Output power capacity	8 kVA
Output power	5600 W
Emergency Power Off (EPO)	Yes
Harmonized System (HS) code	85078000

Product colour	Black

Typical backup time at full load	7.5 min
Typical backup time at half load	20.2 min
Replacement battery cartridge	SYBT5

Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	30526.44

I/O ports	Available Smart Slot Interface Quantity - 1 Pre-Installed SmartSlot Cards - AP9619
Battery type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Interface	DB-9 RS-232, Smart-Slot
Output connections	(1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (6) IEC 320 C19
Input connection type	Hard Wire 3 wire (1PH+N+G)
Dimensions (WxDxH)	470 x 690 x 570 mm
Nominal output voltage	230 V
Output voltage note	Configurable for 220: 230 or 240 nominal output voltage

AC outlet types	IEC 60320

Weight	178 kg

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
