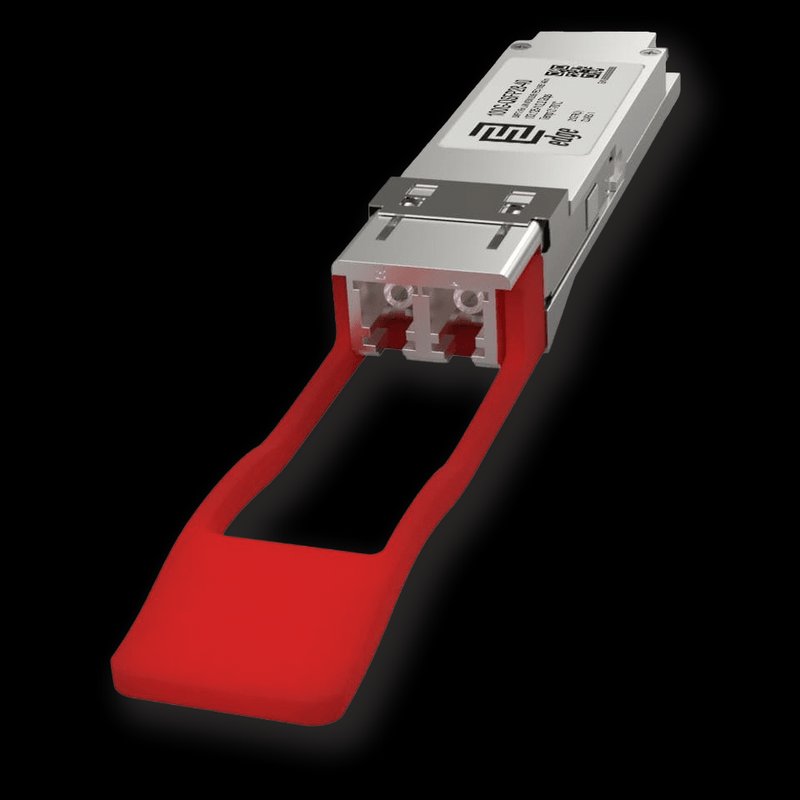

Aruba 100G QSFP28 LC ER4L 40km SMF XCVR

SKU: CNZ-IM-033384
MPN: JL743A
Rating: No reviews yet

Aruba 100G QSFP28 LC ER4L 40km SMF XCVR — ARUBA

Overview

HPE Aruba Networking 100G QSFP28 LC ER4L 40km SMF Transceiver

At a glance

Power	+3.3V single power supply
DDM/DOM	Supported
Connector	Double LC/UPC
Compliance	CE, RoHS, Class 1 FDA and IEC60825-1 Laser Safety Compliant, IEEE 802.3ba, IEEE 802.3bm, 100GBASE-ER4 Lite, 128GFC Gen 6, OTN OTU4, QSFP28 MSA, SFF-8636 (Management Interface for 4-lane modules), SFF-8665
Media Type	Single-Mode Fiber (SMF)
Modulation	NRZ (Non-Return to Zero)
Fiber Count	Duplex
Form Factor	QSFP28

All 31 specifications

Specifications

Power

Power	+3.3V single power supply

DDM/DOM

DDM/DOM	Supported

Connector

Connector	Double LC/UPC

Compliance

Compliance	CE, RoHS, Class 1 FDA and IEC60825-1 Laser Safety Compliant, IEEE 802.3ba, IEEE 802.3bm, 100GBASE-ER4 Lite, 128GFC Gen 6, OTN OTU4, QSFP28 MSA, SFF-8636 (Management Interface for 4-lane modules), SFF-8665

Media Type

Media Type	Single-Mode Fiber (SMF)

Modulation

Modulation	NRZ (Non-Return to Zero)

Fiber Count

Fiber Count	Duplex

Form Factor

Form Factor	QSFP28

RX Wavelength

RX Wavelength	4-channel LAN WDM (1295.56/1300.05/1304.58/1309.14 nm)

Receiver Type

Receiver Type	APD Photodiode

TX Wavelength

TX Wavelength	4-channel LAN WDM (1295.56/1300.05/1304.58/1309.14 nm)

Maximum Distance

Maximum Distance	40 km

Transmitter Type

Transmitter Type	EML Laser

RX Wave Bandwidth

RX Wave Bandwidth	4 LAN WDM Seperated 1310 nm Lanes (15.66 nm 1294.53 – 1310.19nm) (L0 Tx center 1295.56nm, L1 Tx center 1300.05nm, L2 Tx center 1304.58nm, L3 Tx center 1309.14nm)

Receiver Overload

Receiver Overload	-1 dBm

Relative Humidity

Relative Humidity	5 to 85%

Temperature Range

Temperature Range	Standard 0°-70°C

Tx Wave Bandwidth

Tx Wave Bandwidth	4 LAN WDM Seperated 1310 nm Lanes (15.66 nm 1294.53 – 1310.19nm) (L0 Tx center 1295.56nm, L1 Tx center 1300.05nm, L2 Tx center 1304.58nm, L3 Tx center 1309.14nm)

Average Link Budget

Average Link Budget	22 dB

Storage Temperature

Storage Temperature	-40° to 85°C

Supported Data Rate

Supported Data Rate	112 Gbps

Extinction Ratio (Min)

Extinction Ratio (Min)	4 dB

Power Consumption (Max)

Power Consumption (Max)	4.5 W

Forward Error Correction (FEC)

Forward Error Correction (FEC)	Host FEC Supported

Supported Ethernet Applications

Supported Ethernet Applications	100G Ethernet (103.125 Gbps)

Average Launch Power (Max) Each Lane

Average Launch Power (Max) Each Lane	4 dBm

Average Launch Power (Min) Each Lane

Average Launch Power (Min) Each Lane	-2 dBm

Supported Fiber Channel Applications

Supported Fiber Channel Applications	4x 32G Fiber Channel (112.2Gbps)

Average Receiver Sensitivity (Max) Each Lane

Average Receiver Sensitivity (Max) Each Lane	-18 dBm

Average Receiver Sensitivity (Min) Each Lane

Average Receiver Sensitivity (Min) Each Lane	-21 dBm

Optical Transport Network (OTN) Applications

Optical Transport Network (OTN) Applications	OTU4 (112 Gbps)
