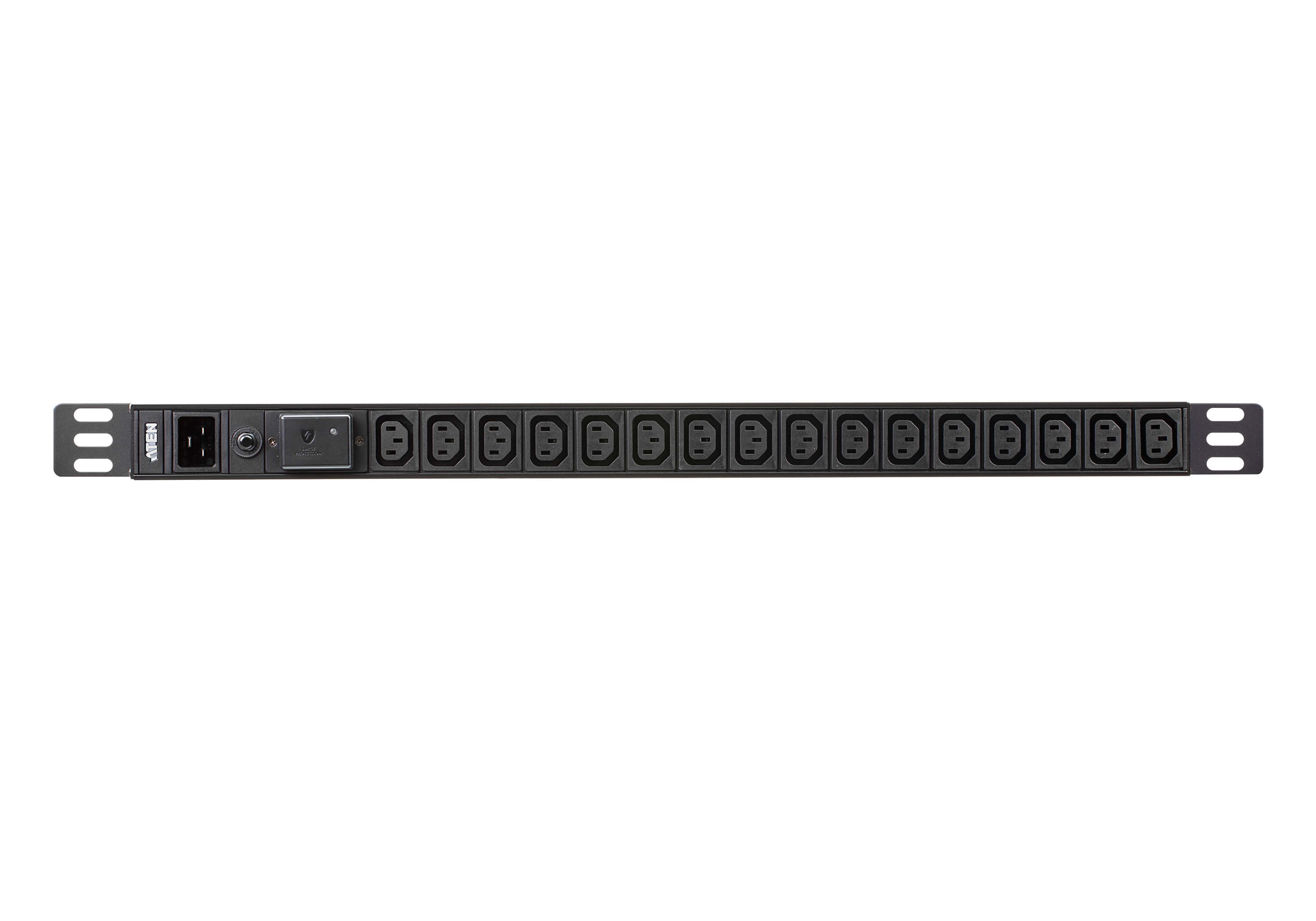

ATEN 0U 16-PORT BASIC PDU WITH SURGE PROTECTION

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: PE0216SG-AT-G
  • MPN: PE0216SG-AT-G
ATEN

ATEN 0U Basic PDU with Surge Protection

SKU
CNZ-DD-040360
MPN
PE0216SG-AT-G

Overview

ATEN's Basic PDU family is extended with 0U members containing 16 outlets and available in IEC or NEMA socket configurations. The compact aluminum housing gives a sleek, yet robust look while minimizing installation space for work space efficiency. Thanks to the built-in surge protection module, the IT devices connected to the PDU are well-protected from sudden surges in electricity; plus, the equipment downtime is reduced as a result of the overcurrent protection design. The Basic PDUs are tailored made for individuals who are in need of industrial-grade, easy-to-deploy power distribution unit in data centers, server rooms, and network wiring closets.
1 x power distribution unit
1 x power cord
1 x L-shaped mounting kit
1 x user instructions

Key features

  • PDU types: Basic
  • Rack capacity: 0U
  • Housing material: Aluminium
  • Product colour: Black
  • AC outlets quantity: 16 AC outlet(s)
  • Power plug: C20 coupler
  • AC outlet types: C13 coupler
  • Cable length: 3 m
  • Nominal input voltage: 100-240 V
  • AC input frequency: 50-60 Hz
  • Maximum current: 16 A
  • Load capacity: 3840 VA
  • Power protection features: Over current
  • Surge protection: Yes
  • Certification: CE A CE,LVD
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating altitude: 0 - 3000 m
  • Non-operating altitude: 0 - 3000 m
  • Width: 715.6 mm
  • Depth: 44.4 mm
  • Height: 60 mm
  • Weight: 1.66 kg
  • Cables included: AC

Specifications

Power

Nominal input voltage100-240 V
AC input frequency50-60 Hz
Maximum current16 A
Load capacity3840 VA
Power protection featuresOver current
Surge protectionYes

Design

PDU typesBasic
Rack capacity0U
Housing materialAluminium
Product colourBlack

Features

Cable length3 m

Certificates

CertificationCE A CE,LVD

Logistics data

Master (outer) case net weight1.66 kg
Master (outer) case width187 mm
Master (outer) case length730 mm
Master (outer) case height166 mm
Master (outer) case gross weight2.08 kg
Products per master (outer) case1 pc(s)

Packaging data

Package weight2.08 kg
Package width187 mm
Package depth730 mm
Package height166 mm

Packaging content

Cables includedAC
ManualYes

Ports & interfaces

AC outlets quantity16 AC outlet(s)
Power plugC20 coupler
AC outlet typesC13 coupler

Weight & dimensions

Width715.6 mm
Depth44.4 mm
Height60 mm
Weight1.66 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating altitude0 - 3000 m
Non-operating altitude0 - 3000 m
