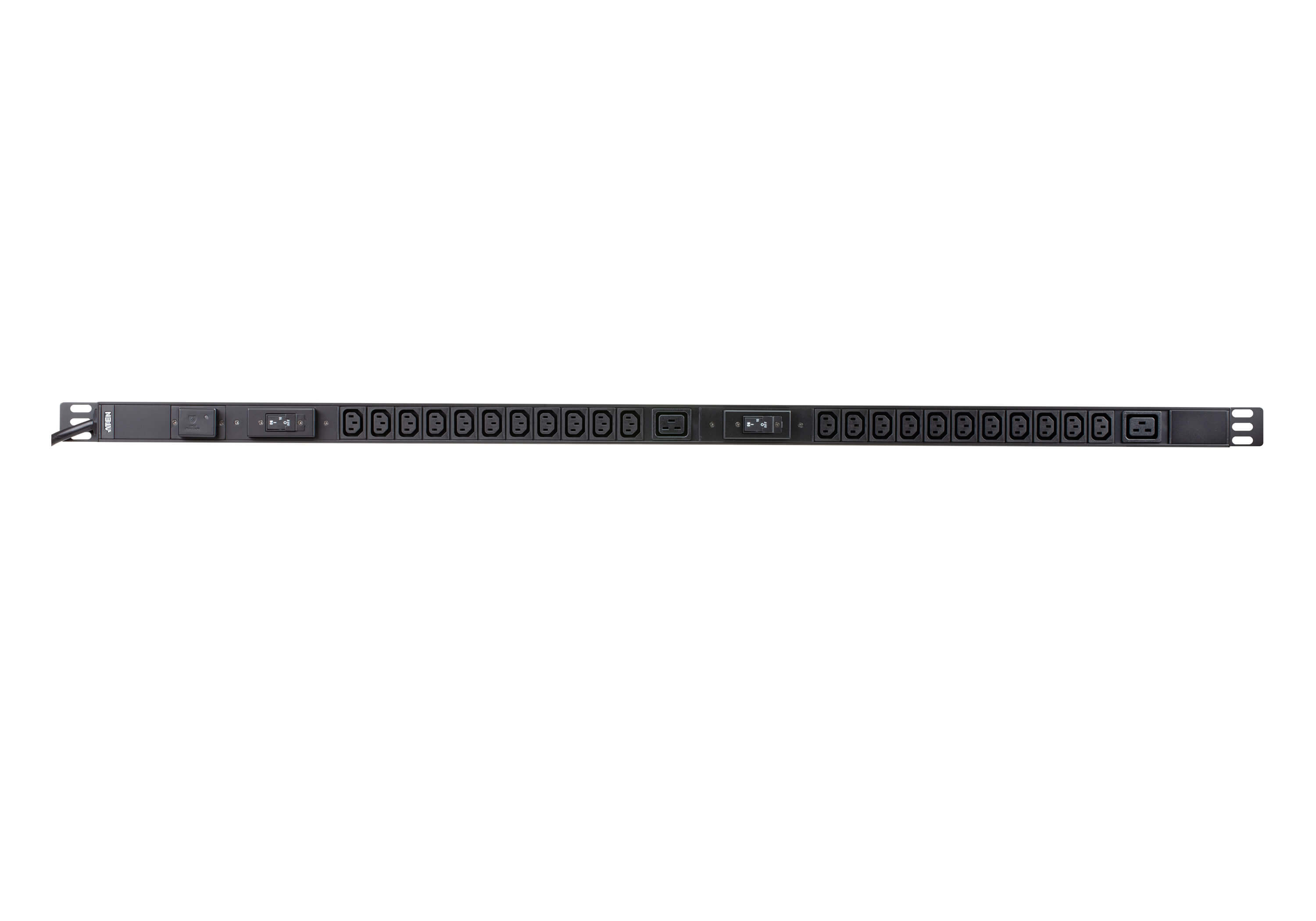

ATEN 0U 24-PORT BASIC PDU WITH SURGE PROTECTION

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: PE0324SG-AT
  • MPN: PE0324SG-AT
ATEN

ATEN 0U Basic PDU with Surge Protection

SKU
CNZ-DD-040364
MPN
PE0324SG-AT

Overview

ATEN's Basic PDU family is extended with 0U members containing 24 outlets and available in IEC or NEMA socket configurations. The compact aluminum housing gives a sleek, yet robust look while minimizing installation space for work space efficiency. Thanks to the built-in surge protection module, the IT devices connected to the PDU are well-protected from sudden surges in electricity; plus, the equipment downtime is reduced as a result of the overcurrent protection design. The Basic PDUs are tailored made for individuals who are in need of industrial-grade, easy-to-deploy power distribution unit in data centers, server rooms, and network wiring closets.
1 x power distribution unit
1 x L-shaped mounting kit
1 x user instructions

Key features

  • PDU types: Basic
  • Rack capacity: 0U
  • Housing material: Aluminium
  • Product colour: Black
  • AC outlets quantity: 24 AC outlet(s)
  • Power plug: IEC 60309
  • AC outlet types: C13 coupler, C19 coupler
  • Cable length: 3 m
  • Nominal input voltage: 100-240 V
  • AC input frequency: 50-60 Hz
  • Maximum current: 32 A
  • Load capacity: 7680 VA
  • Power protection features: Over current
  • Surge protection: Yes
  • Certification: CE A CE, LVD
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating altitude: 0 - 3000 m
  • Non-operating altitude: 0 - 3000 m
  • Width: 1199.8 mm
  • Depth: 44.4 mm
  • Height: 60 mm
  • Weight: 2.52 kg
  • Manual: Yes

Specifications

Power

Nominal input voltage100-240 V
AC input frequency50-60 Hz
Maximum current32 A
Load capacity7680 VA
Power protection featuresOver current
Surge protectionYes

Design

PDU typesBasic
Rack capacity0U
Housing materialAluminium
Product colourBlack

Features

Cable length3 m

Certificates

CertificationCE A CE, LVD

Logistics data

Master (outer) case net weight2.52 kg
Master (outer) case width125 mm
Master (outer) case length1408 mm
Master (outer) case height146 mm
Master (outer) case gross weight4.16 kg
Products per master (outer) case1 pc(s)

Packaging data

Package weight4.16 kg
Package width125 mm
Package depth1408 mm
Package height146 mm

Packaging content

ManualYes

Ports & interfaces

AC outlets quantity24 AC outlet(s)
Power plugIEC 60309
AC outlet typesC13 coupler, C19 coupler

Weight & dimensions

Width1199.8 mm
Depth44.4 mm
Height60 mm
Weight2.52 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating altitude0 - 3000 m
Non-operating altitude0 - 3000 m

Questions

$683.09inc GST
