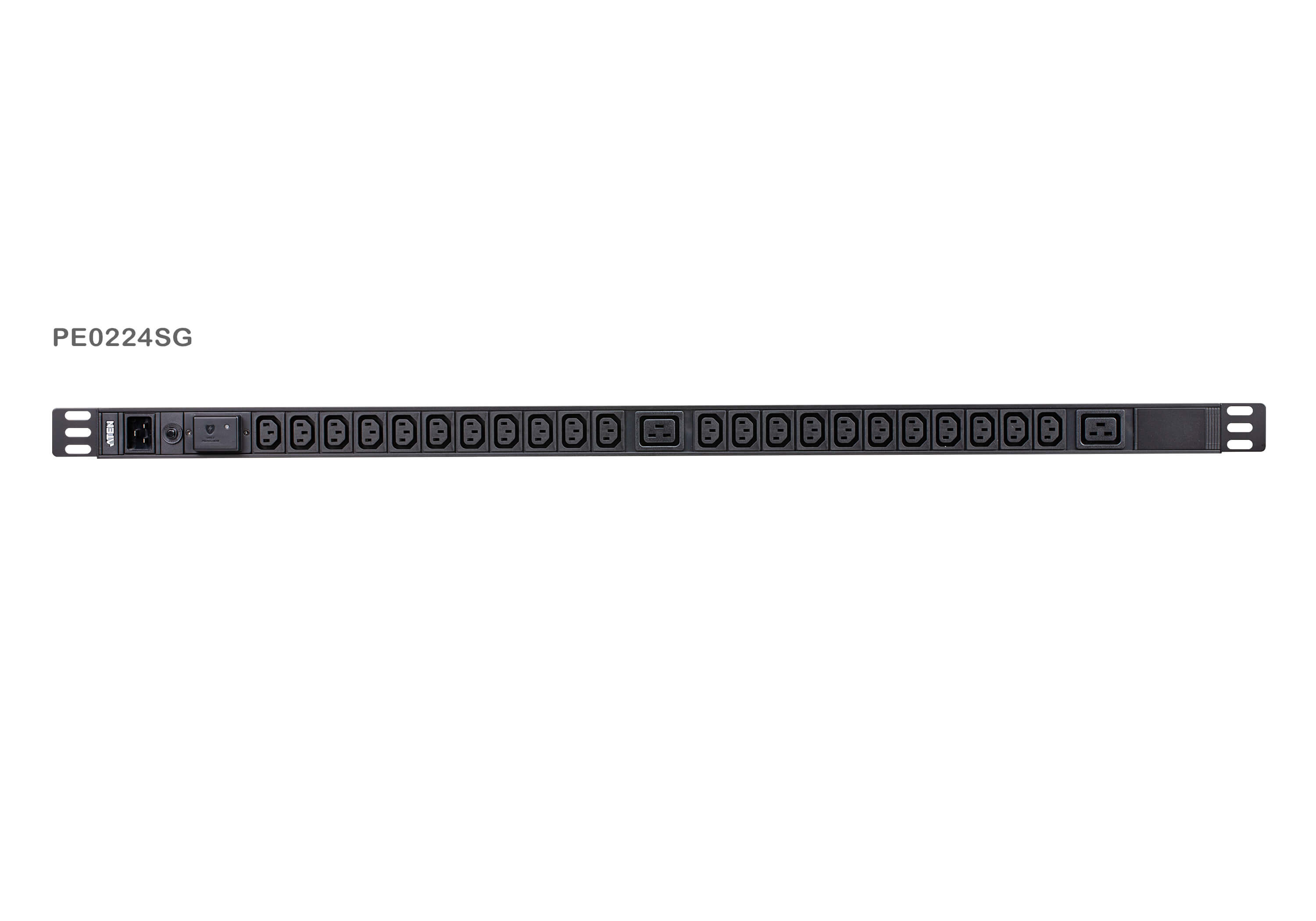

ATEN 0U 24-PORT BASIC PDU WITH SURGE PROTECTION

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: PE0224SG-AT-G
  • MPN: PE0224SG-AT-G
ATEN

ATEN 0U Basic PDU with Surge Protection

Our SKU
MPN
Barcode

Overview

ATEN's Basic PDU family is extended with 0U members containing 24 outlets and available in IEC or NEMA socket configurations. The compact aluminum housing gives a sleek, yet robust look while minimizing installation space for work space efficiency. Thanks to the built-in surge protection module, the IT devices connected to the PDU are well-protected from sudden surges in electricity; plus, the equipment downtime is reduced as a result of the overcurrent protection design. The Basic PDUs are tailored made for individuals who are in need of industrial-grade, easy-to-deploy power distribution unit in data centers, server rooms, and network wiring closets.
1 x power distribution unit
1 x power cord
1 x L-shaped mounting kit
1 x user instructions

Key features

  • PDU types: Basic
  • Rack capacity: 0U
  • Housing material: Aluminium
  • Product colour: Black
  • AC outlets quantity: 24 AC outlet(s)
  • Power plug: IEC 320
  • AC outlet types: C13 coupler, C19 coupler
  • Cable length: 3.048 m
  • Nominal input voltage: 100-240 V
  • AC input frequency: 50-60 Hz
  • Maximum current: 16 A
  • Block 1 output current: 10 A
  • Block 2 output current: 16 A
  • Load capacity: 3840 VA
  • Maximum input current per phase: 16 A
  • Surge protection: Yes
  • Certification: CE
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating altitude: 0 - 3000 m
  • Non-operating altitude: 0 - 3000 m
  • Width: 44.4 mm
  • Depth: 966.8 mm
  • Height: 60 mm

Specifications

Power

Nominal input voltage100-240 V
AC input frequency50-60 Hz
Maximum current16 A
Block 1 output current10 A
Block 2 output current16 A
Load capacity3840 VA
Maximum input current per phase16 A
Surge protectionYes

Design

PDU typesBasic
Rack capacity0U
Housing materialAluminium
Product colourBlack

Features

Cable length3.048 m

Certificates

CertificationCE

Logistics data

Master (outer) case net weight2.05 kg
Master (outer) case width146 mm
Master (outer) case length1177 mm
Master (outer) case height166 mm
Master (outer) case gross weight2.81 kg
Products per master (outer) case1 pc(s)

Packaging data

Package weight2.81 kg
Package width145 mm
Package depth1177 mm
Package height166 mm

Packaging content

Cables includedAC

Ports & interfaces

AC outlets quantity24 AC outlet(s)
Power plugIEC 320
AC outlet typesC13 coupler, C19 coupler

Weight & dimensions

Width44.4 mm
Depth966.8 mm
Height60 mm
Weight2.05 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating altitude0 - 3000 m
Non-operating altitude0 - 3000 m

Questions

$320.84inc GST
