ATEN 16 PORT 0U 16A SMART PDU, 14XC13 + 2XC19

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: PE8216G-AX-G
  • MPN: PE8216G-AX-G
ATEN

ATEN 16A 16 Outlet Switched + Metered PDU + Free Eco PDU Manager…

SKU
CNZ-DD-040372
MPN
PE8216G-AX-G

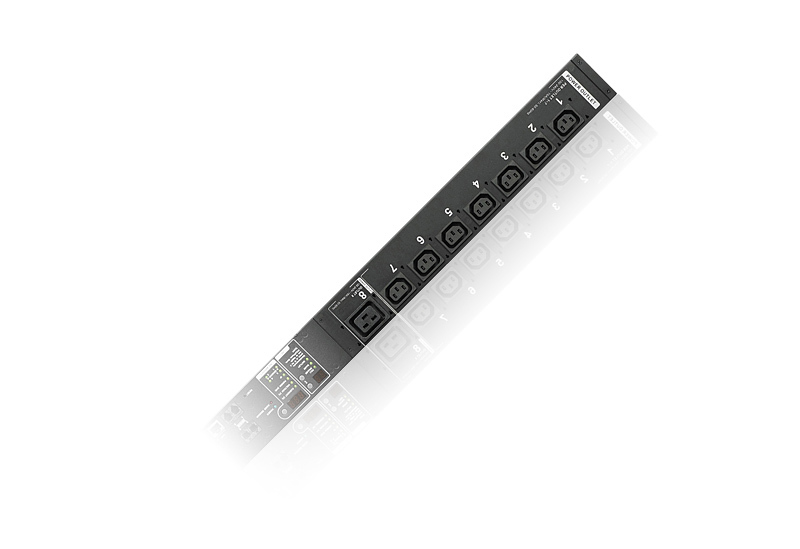

ATEN 16 PORT 0U 16A SMART PDU, 14XC13 + 2XC19 — ATEN

Overview

As part of its NRGence line, ATEN has developed a new generation of green energy power distribution units (eco PDUs) to effectively increase the efficiency of data center power usage. The NRGence PE8216 eco PDUs are intelligent PDUs that contain 16 AC outlets and are available in various IEC socket configurations. Models in the advanced PE8 ranges feature NRGence's proactive overload protection, which automatically powers off the last outlet that caused the current overload.

NRGence eco PDUs provide secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors.

NRGence eco PDUs offer remote power control combined with real-time power measurement — allowing you to control and monitor the power status of devices attached to the PDUs, either at the PDU device, bank, or outlet level, depending on the model, from practically any location via a TCP/IP connection.
1x PE8216 eco PDU
1x Power Cord
1x Rack Mount Kit
1x CD-ROM (Manual, eco Sensors Software)
1x User Instructions

Key features

  • PDU types: Metered, Switched
  • Housing material: Metal
  • Product colour: Black
  • AC outlets quantity: 16 AC outlet(s)
  • Power plug: C20 coupler
  • AC outlet types: C13 coupler, C19 coupler
  • LED indicators: Yes
  • Cable length: 1.6 m
  • Management platform: SNMP v1/v2/v3
  • Nominal input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Maximum current: 16 A
  • Nominal output voltage: 100 - 240 V
  • Load capacity: 3680 VA
  • Certification: TUV-CB, CE-LVD, CE
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 66 mm
  • Depth: 1324.8 mm
  • Height: 44 mm
  • Weight: 4.47 kg
  • Package weight: 6.22 kg
  • Package width: 187 mm

Specifications

Power

Nominal input voltage100 - 240 V
AC input frequency50 - 60 Hz
Maximum current16 A
Nominal output voltage100 - 240 V
Load capacity3680 VA

Design

PDU typesMetered, Switched
Housing materialMetal
Product colourBlack

Features

LED indicatorsYes
Cable length1.6 m

Certificates

CertificationTUV-CB, CE-LVD, CE

Logistics data

Master (outer) case net weight4.47 kg
Master (outer) case width187 mm
Master (outer) case length1415 mm
Master (outer) case height179 mm
Master (outer) case gross weight6.21 kg
Products per master (outer) case1 pc(s)

Packaging data

Package weight6.22 kg
Package width187 mm
Package depth1415 mm
Package height179 mm

Ports & interfaces

AC outlets quantity16 AC outlet(s)
Power plugC20 coupler
AC outlet typesC13 coupler, C19 coupler

Management features

Management platformSNMP v1/v2/v3

Weight & dimensions

Width66 mm
Depth1324.8 mm
Height44 mm
Weight4.47 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
