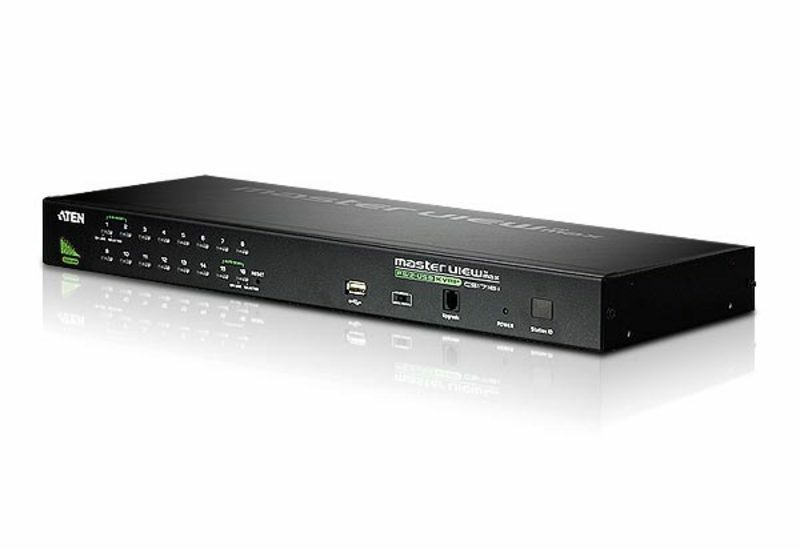

ATEN 16-PORT PS/2 USB VGA KVMP SWITCH
Networking > Network Accessories
- Brand: ATEN
- Category: Switches
- SKU: CS1716A-AT-U
- MPN: CS1716A-AT-U
−5%
Overview
The CS1716A KVM switch is a control unit that allows access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor). A single CS1716A can control up to 16 computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 512 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis.
1x KVM Switch with Standard Rack Mounting Kit
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Firmware Upgrade Cable
1x Foot Pad Set(4 PCS)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
1x KVM Switch with Standard Rack Mounting Kit
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Firmware Upgrade Cable
1x Foot Pad Set(4 PCS)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
Key features
- Number of computers controlled: 512
- Keyboard port type: USB, PS/2
- Mouse port type: USB, PS/2
- Video port type: VGA
- VGA (D-Sub) ports quantity: 17
- Console ports: USB A, VGA (D-Sub)
- Console USB ports quantity: 1
- DC-in jack: Yes
- HD type: QXGA
- Maximum resolution: 2048 x 1536 pixels
- Scan interval: 1,255 s
- DDC2B support: Yes
- Hot-Plug support: Yes
- Daisy chain: Yes
- Firmware upgradeable: Yes
- Rack mounting: Yes
- Rack capacity: 1U
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Push button: Yes
- Hot keys: Yes
- Built-in display: No
- On Screen Display (OSD): Yes
Specifications
Power
| Power source | DC |
|---|---|
| Input voltage | 5.3 V |
| Power consumption (typical) | 6.6 W |
Design
| Rack mounting | Yes |
|---|---|
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Built-in display | No |
|---|---|
| On Screen Display (OSD) | Yes |
Performance
| HD type | QXGA |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
| Scan interval | 1,255 s |
| DDC2B support | Yes |
| Hot-Plug support | Yes |
| Daisy chain | Yes |
| Firmware upgradeable | Yes |
Packaging data
| Package width | 116 mm |
|---|---|
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 4 kg |
Sustainability
| Compliance certificates | RoHS |
|---|
Packaging content
| Cables included | KVM |
|---|---|
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Rack mount kit | Yes |
Ports & interfaces
| Number of computers controlled | 512 |
|---|---|
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 17 |
| Console ports | USB A, VGA (D-Sub) |
| Console USB ports quantity | 1 |
| DC-in jack | Yes |
System requirements
| Windows operating systems supported | Yes |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Weight & dimensions
| Width | 437.2 mm |
|---|---|
| Depth | 159.9 mm |
| Height | 44 mm |
| Weight | 3.61 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
