ATEN 160W 8" COAXIAL CEILING LOUDSPEAKER

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: AS108-AT
  • MPN: AS108-AT
ATEN

ATEN AS108 White Wired 80 W

Our SKU
MPN
Barcode

Overview

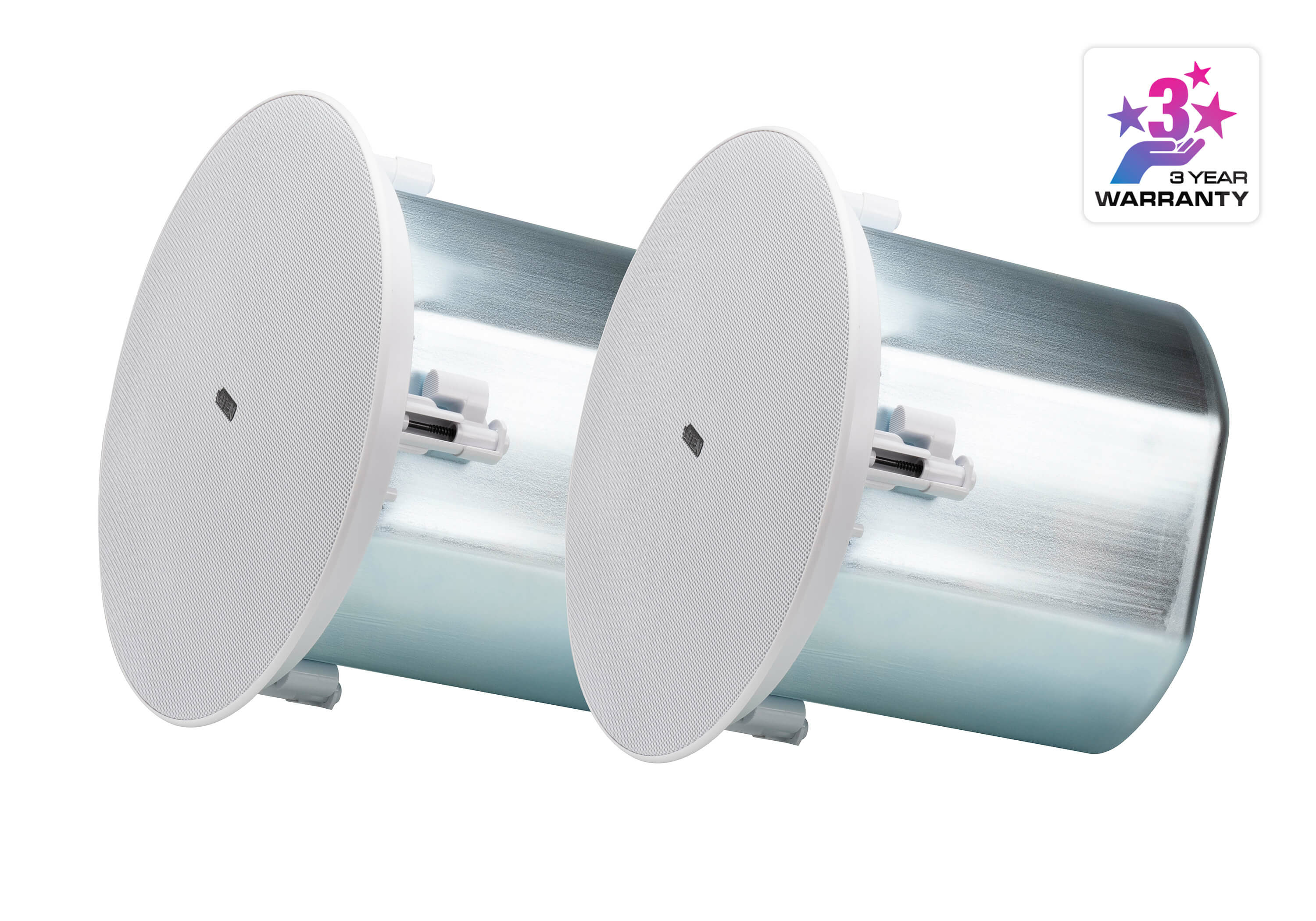

The AS108 comes in a pair of 8" coaxial 2-way ceiling loudspeakers that deliver decent sonic performance. Each speaker ships with a 8" woofer, 20 mm dome tweeter, and 80W RMS, 160W peak (8Ω) power handling capability. Excellent and consistent sound quality is ensured by taking advantages of its 65 - 20 kHz bandwidth and wide coverage, allowing less speakers used to cover the listening area to lower the cost of the system installed.

The loudspeaker contains a matching transformer, running comfortably on 70 / 100 V lines or at 8 Ω to suit various application demands. Phase issues are minimized as a result of the adoption of the coaxial neodymium magnetic driver, making sound waves with various frequency bands easier to be added together instead of canceling each other out. Made of UL94-V0-compliant flame retardant materials, the housing, together with the Zinc-plated steel backcan, improve safety for applications where flame and fire protection is of the highest importance. When it comes to installation, each speaker features a cutout template for quick and easy post construction installation and can be secured with its dog-leg mounting system. The paintable magnetic grille assures effortless installation and cleaning while giving unobtrusive appearance in any room design.

AS108 is ideal for residence and enterprise-grade audio applications, such as auditoriums, houses of worship, sports venues, and any small or mid-sized public address systems that require a clear and intelligible sound solution without compromise on life safety.

Key features

  • Speaker placement: Ceiling-mountable
  • Tweeter: Yes
  • Tweeter diameter: 2 cm
  • RMS rated power: 80 W
  • Frequency range: 65 - 20000 Hz
  • Sensitivity: 90 dB
  • Total Harmonic Distortion (THD): 5%
  • Recommended usage: Universal
  • Product colour: White
  • Housing material: Plastic
  • Certification: CE, WEEE, RoHs
  • Connectivity technology: Wired
  • Transformer taps: 10,20,40,80 W
  • Width: 309 mm
  • Depth: 309 mm
  • Height: 248 mm
  • Weight: 5.8 kg
  • Package width: 397 mm
  • Package depth: 785 mm
  • Package height: 259 mm
  • Package weight: 18 kg
  • Quantity per pack: 2 pc(s)
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C

Specifications

Audio

RMS rated power80 W
Frequency range65 - 20000 Hz
Sensitivity90 dB
Total Harmonic Distortion (THD)5%

Power

Transformer taps10,20,40,80 W

Performance

Recommended usageUniversal
Product colourWhite
Housing materialPlastic
CertificationCE, WEEE, RoHs

Loudspeakers

Speaker placementCeiling-mountable
TweeterYes
Tweeter diameter2 cm

Logistics data

Harmonized System (HS) code85182100
Master (outer) case width397 mm
Master (outer) case length785 mm
Master (outer) case height259 mm
Master (outer) case gross weight18 kg
Master (outer) case net weight11.4 kg

Other features

Country of originChina

Packaging data

Package width397 mm
Package depth785 mm
Package height259 mm
Package weight18 kg

Packaging content

Quantity per pack2 pc(s)

Ports & interfaces

Connectivity technologyWired

Weight & dimensions

Width309 mm
Depth309 mm
Height248 mm
Weight5.8 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Questions

$1,072.94inc GST
