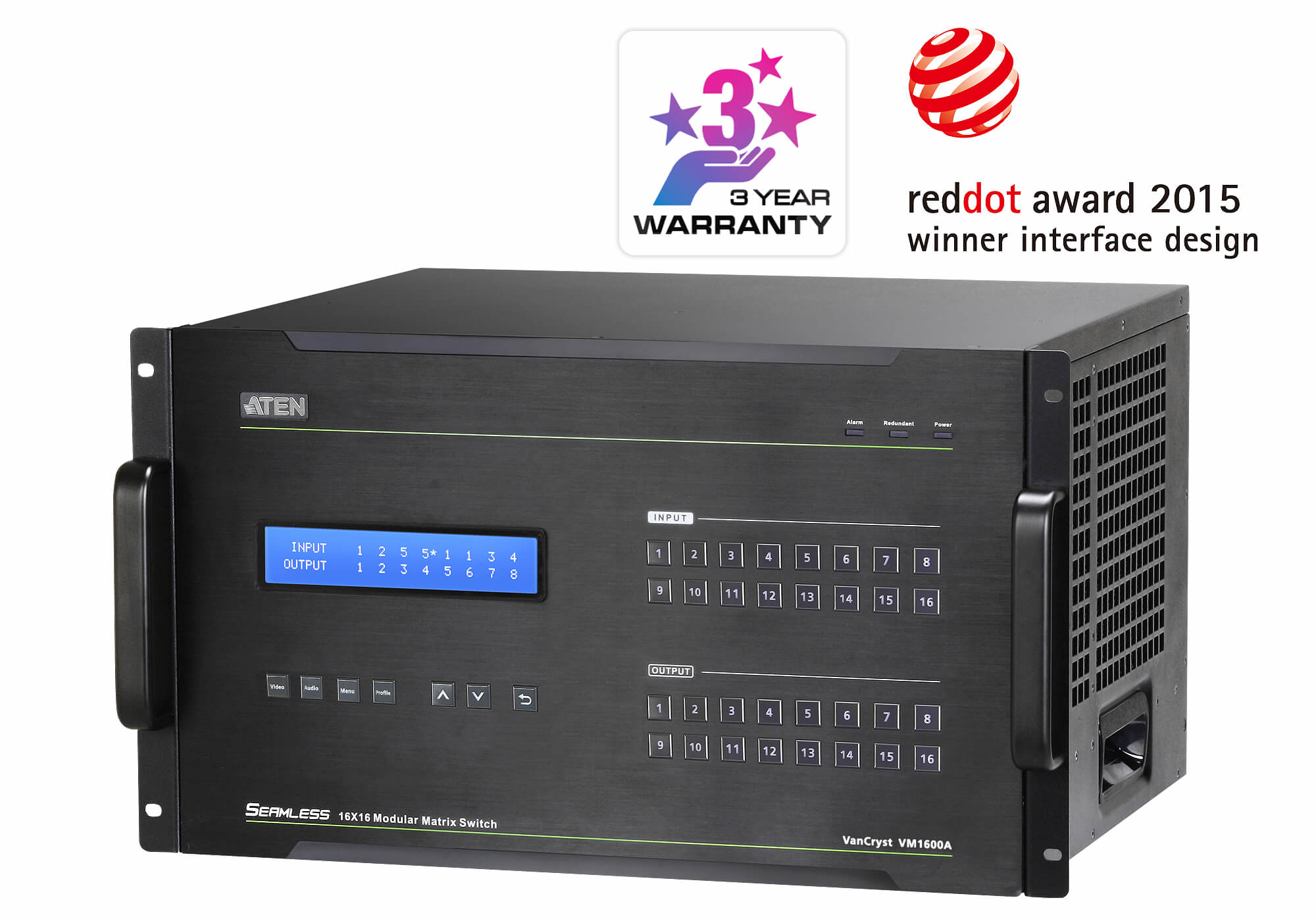

ATEN 16X16 MODULAR DIGITAL MATRIX WITH SCALER
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VM1600A-AT-U
- MPN: VM1600A-AT-U
−14%
Overview
The ATEN Modular Matrix Solution Series comprises the VM1600A/VM3200 Modular Matrix Switch in tandem with a range of hot-swappable I/O boards. The solution offers real-time control and advanced access to manage 16/32 video sources and 16/32 displays simultaneously, through modular I/O boards in a single chassis. Empowered by ATEN Seamless Switch™ technology, the VM1600A/VM3200 video matrix switches incorporate a speed-progressive video switching function and a unique scaler that integrates seamlessly with video wall systems.
The ATEN Modular Matrix Solution is easily expandable and ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers, and any application that requires customizable, high-speed A/V signal routing.
Boasting a sophisticated and intuitive design to deliver the best audio/visual distribution and control, reliability and lowest maintenance costs, the solution also incorporates ATEN’s Red Dot Award-winning GUI that can be accessed from anywhere over a network or the internet. Configuring a video wall or digital signage installation has never been easier.
The ATEN Modular Matrix Solution is easily expandable and ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers, and any application that requires customizable, high-speed A/V signal routing.
Boasting a sophisticated and intuitive design to deliver the best audio/visual distribution and control, reliability and lowest maintenance costs, the solution also incorporates ATEN’s Red Dot Award-winning GUI that can be accessed from anywhere over a network or the internet. Configuring a video wall or digital signage installation has never been easier.
Key features
- HDMI ports quantity: 32
- RJ-45 input ports: 1
- RS-232 ports: 1
- Material: Metal
- Product colour: Black
- HDCP: Yes
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- Bandwidth: 15.2 Gbit/s
- LED indicators: Yes
- Maximum resolution: 4096 x 2160 pixels
- 3D: Yes
- HD type: 4K Ultra HD
- Rack capacity: 6U
- HDCP version: 2.2
- AC adapter input voltage: 100 - 240 V
- AC adapter frequency: 50/60 Hz
- Power consumption (typical): 460 W
- Width: 482 mm
- Depth: 466.6 mm
- Height: 265.9 mm
- Weight: 15.1 kg
- User guide: Yes
- Cables included: AC
- Operating temperature (T-T): 0 - 40 °C
Specifications
Power
| AC adapter input voltage | 100 - 240 V |
|---|---|
| AC adapter frequency | 50/60 Hz |
| Power consumption (typical) | 460 W |
Features
| Material | Metal |
|---|---|
| Product colour | Black |
| HDCP | Yes |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Bandwidth | 15.2 Gbit/s |
| LED indicators | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| 3D | Yes |
| HD type | 4K Ultra HD |
| Rack capacity | 6U |
| HDCP version | 2.2 |
Packaging content
| User guide | Yes |
|---|---|
| Cables included | AC |
Ports & interfaces
| HDMI ports quantity | 32 |
|---|---|
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
Weight & dimensions
| Width | 482 mm |
|---|---|
| Depth | 466.6 mm |
| Height | 265.9 mm |
| Weight | 15.1 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
