ATEN 2-PORT 4K DISPLAYPORT USB-C CABLE KVM SWITCH WITH REMOTE PORT SELECTOR

Networking > Network Accessories

  • Brand: ATEN
  • Category: Switches
  • SKU: US3312-AT
  • MPN: US3312-AT
ATEN

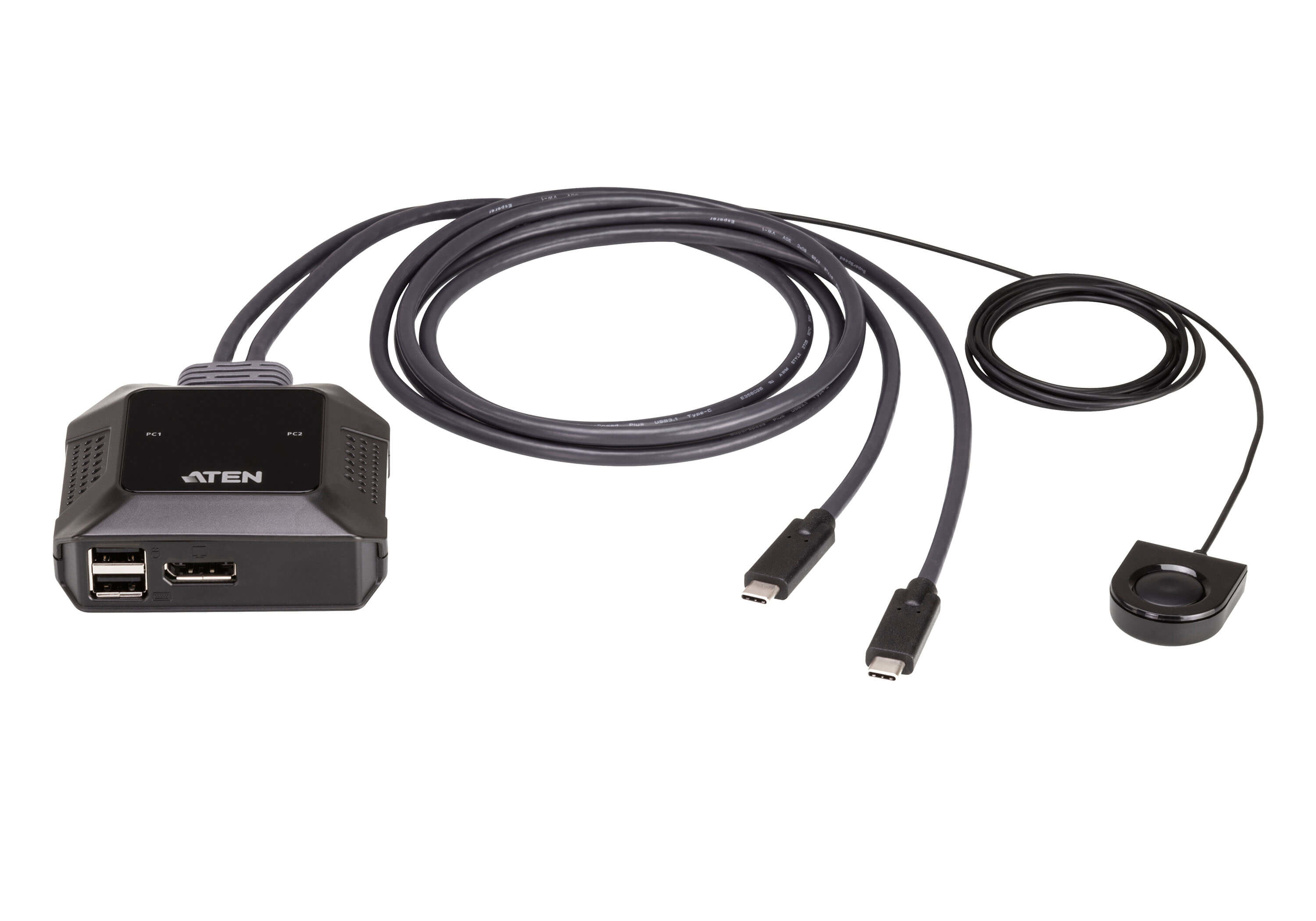

ATEN 2-Port USB-C 4K DisplayPort KVM Switch with Remote Port Selector

Our SKU
MPN
Barcode

Overview

ATEN US3312 2-Port USB-C 4K DisplayPort KVM Switch with Remote Port Selector is developed for easy control and fast switch between two USB-C device sources from a single set of keyboard, mouse, and monitor. With cables coming already mounted on to it, the USB bus-powered US3312 supports two USB and one DisplayPort downstream ports, along with USB peripheral sharing capability. Containing a hook and an external remote port selector, the switch box can be placed anywhere to keep the workstation tidy while allowing users to instantly swap peripherals between the connected PCs and ensuring uninterrupted data transmission from a single user station. It supports resolutions up to True 4K (4096 x 2160 @ 60 Hz) to ensure that every detail of the video is displayed in the crisp and sharp UHD quality. The US3312 is a plug-and-play device that not only enhances the efficiency of multi-tasking, but also saves desktop space.

Key features

  • Number of computers controlled: 2
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DisplayPort
  • DisplayPort version: 1.2
  • Console ports: DisplayPort, USB A
  • Console USB ports quantity: 2
  • Console DisplayPorts ports quantity: 1
  • USB connector type: USB Type-C
  • HD type: 4K DCI
  • Maximum resolution: 4096 x 2160 pixels
  • Video bandwidth: 60 Hz
  • Rack mounting: No
  • Product colour: Black
  • Housing material: Plastic
  • Wired remote switch: Yes
  • Cable length: 1.2 m
  • Remote switch cable length: 1.8 m
  • LED indicators: Yes
  • Certification: true-4k
  • Built-in display: No
  • Power source: DC
  • Input voltage: 5 V
  • Power consumption (typical): 0.74 W

Specifications

Power

Power sourceDC
Input voltage5 V
Power consumption (typical)0.74 W

Design

Rack mountingNo
Product colourBlack
Housing materialPlastic
Wired remote switchYes
Cable length1.2 m
Remote switch cable length1.8 m
LED indicatorsYes
Certificationtrue-4k

Display

Built-in displayNo

Performance

HD type4K DCI
Maximum resolution4096 x 2160 pixels
Video bandwidth60 Hz

Logistics data

Country of originChina

Other features

CompatibilityVC925,VC965,VC985,VC986,UCE260,UCE60,UE250,UE150,2L-7D02DP,2L-7D03DP,VS194,VE901,VB905,VC986B,2L-7D03DP-1,2L-7D04DP,US3310,US3342,CS52DP

Packaging data

Package weight270 g

Packaging content

Packaging content1x 2-Port USB-C 4K DisplayPort KVM Switch with Remote Port Selector 1x user instructions

Ports & interfaces

Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPort version1.2
Console portsDisplayPort, USB A
Console USB ports quantity2
Console DisplayPorts ports quantity1
USB connector typeUSB Type-C

Weight & dimensions

Width84.2 mm
Depth83.4 mm
Height29.9 mm
Weight190 g

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Questions
