ATEN 2 PORT USB 2.0 VGA KVMP SWITCH WITH OSD AND AUDIO Networking > Network Accessories

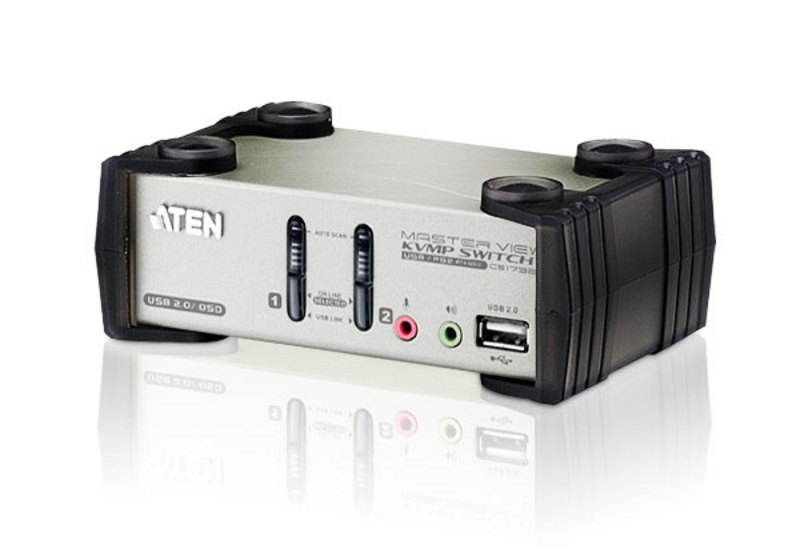

Brand: ATEN Category: Switches SKU: CS1732B-AT-U MPN: CS1732B-AT-U Home Switches ATEN ATEN ATEN CS1732B-AT-U KVM switch Black, Metallic Overview Specifications Questions Overview The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
Key features Number of computers controlled: 2 Keyboard port type: USB, PS/2 Mouse port type: USB, PS/2 Video port type: VGA Console ports: 3.5mm headphone, 3.5mm mic USB hub: Yes USB 2.0 Type-A hub ports quantity: 2 Audio connections: Yes Headphone outputs: 4 Number of microphone inputs: 4 DC-in jack: Yes HD type: QXGA Maximum resolution: 2048 x 1536 pixels Video bandwidth: 60 Hz Scan interval: 1,255 s DDC2B support: Yes Firmware upgradeable: Yes Product colour: Black, Metallic Housing material: Metal Cable length: 1.2 m LED indicators: Yes Push button: Yes Hot keys: Yes On Screen Display (OSD): Yes At a glance Power source DC Input voltage 5.3 V Power consumption (typical) 2.5 W Product colour Black, Metallic Housing material Metal Cable length 1.2 m LED indicators Yes Push button Yes
All 43 specifications Specifications Power Power source DC Input voltage 5.3 V Power consumption (typical) 2.5 W
Design Product colour Black, Metallic Housing material Metal Cable length 1.2 m LED indicators Yes Push button Yes Hot keys Yes
Display On Screen Display (OSD) Yes
Performance HD type QXGA Maximum resolution 2048 x 1536 pixels Video bandwidth 60 Hz Scan interval 1,255 s DDC2B support Yes Firmware upgradeable Yes
Packaging data Package width 62 mm Package depth 283 mm Package height 173 mm Package weight 1.34 kg
Packaging content Cables included KVM Quick installation guide Yes Manual Yes
Ports & interfaces Number of computers controlled 2 Keyboard port type USB, PS/2 Mouse port type USB, PS/2 Video port type VGA Console ports 3.5mm headphone, 3.5mm mic USB hub Yes USB 2.0 Type-A hub ports quantity 2 Audio connections Yes Headphone outputs 4 Number of microphone inputs 4 DC-in jack Yes
System requirements Windows operating systems supported Yes Mac operating systems supported Yes
Weight & dimensions Width 140 mm Depth 88 mm Height 55.5 mm Weight 1.15 kg
Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 80%
$255.29 inc GST
