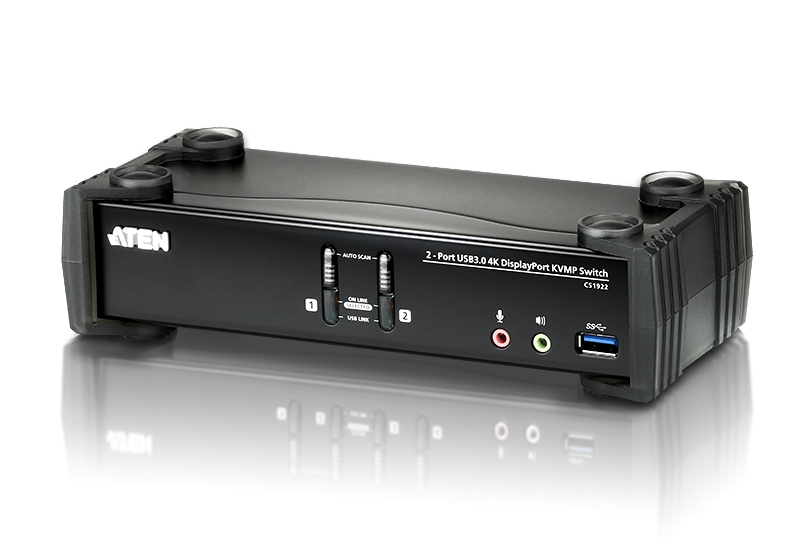

ATEN 2 PORT USB 3.0 4K DISPLAYPORT KVMP SWITCH
Networking > Network Accessories
- Brand: ATEN
- Category: Switches
- SKU: CS1922-AT-U
- MPN: CS1922-AT-U
−5%
Overview
The ATEN CS1922 2-Port USB 3.0 4K DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology for the increasing demand of higher video quality and transfer speeds on modern computers. The ATEN CS1922 offers an unprecedented performance of delivering 4K resolution, the next generation USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates and enhanced user-friendly operations.
1x CS1922 2-Port USB 3.0 4K DisplayPort KVMP™ Switch
2x LIN5-20K1-K13G DisplayPort Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cable
2x LIN5-0205-21DG Audio Cable
1x 0AD8-8005-40MG Power Adapter
1x LIN2-418K-E12G Power Cord
1x User Instructions
1x CS1922 2-Port USB 3.0 4K DisplayPort KVMP™ Switch
2x LIN5-20K1-K13G DisplayPort Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cable
2x LIN5-0205-21DG Audio Cable
1x 0AD8-8005-40MG Power Adapter
1x LIN2-418K-E12G Power Cord
1x User Instructions
Key features
- Number of computers controlled: 4
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DisplayPort
- DisplayPorts quantity: 3
- Console ports: 3.5mm mic, DisplayPort, USB B
- Console USB ports quantity: 2
- USB hub: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
- USB connector type: USB Type-B
- Audio connections: Yes
- Headphone outputs: 4
- Number of microphone inputs: 4
- DC-in jack: Yes
- HD type: 4K Ultra HD
- Maximum resolution: 4096 x 2160 pixels
- Scan interval: 1,99 s
- HDCP: Yes
- Hot-Plug support: Yes
- Product colour: Black
- Housing material: Metal, Plastic
- LED indicators: Operation, USB
- Push button: Yes
- Built-in display: No
Specifications
Power
| Power source | DC |
|---|---|
| Output voltage | 5 V |
| Power consumption (typical) | 2 W |
| External power adapter | Yes |
Design
| Product colour | Black |
|---|---|
| Housing material | Metal, Plastic |
| LED indicators | Operation, USB |
| Push button | Yes |
Display
| Built-in display | No |
|---|
Performance
| HD type | 4K Ultra HD |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Scan interval | 1,99 s |
| HDCP | Yes |
| Hot-Plug support | Yes |
Packaging data
| Package width | 100 mm |
|---|---|
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.86 kg |
Packaging content
| Cables included | Audio (3.5mm), DisplayPort, USB |
|---|---|
| Manual | Yes |
| AC adapter included | Yes |
Ports & interfaces
| Number of computers controlled | 4 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 3 |
| Console ports | 3.5mm mic, DisplayPort, USB B |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 4 |
| Number of microphone inputs | 4 |
| DC-in jack | Yes |
System requirements
| Windows operating systems supported | Yes |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Weight & dimensions
| Width | 88 mm |
|---|---|
| Depth | 210 mm |
| Height | 55.5 mm |
| Weight | 1.42 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Questions
