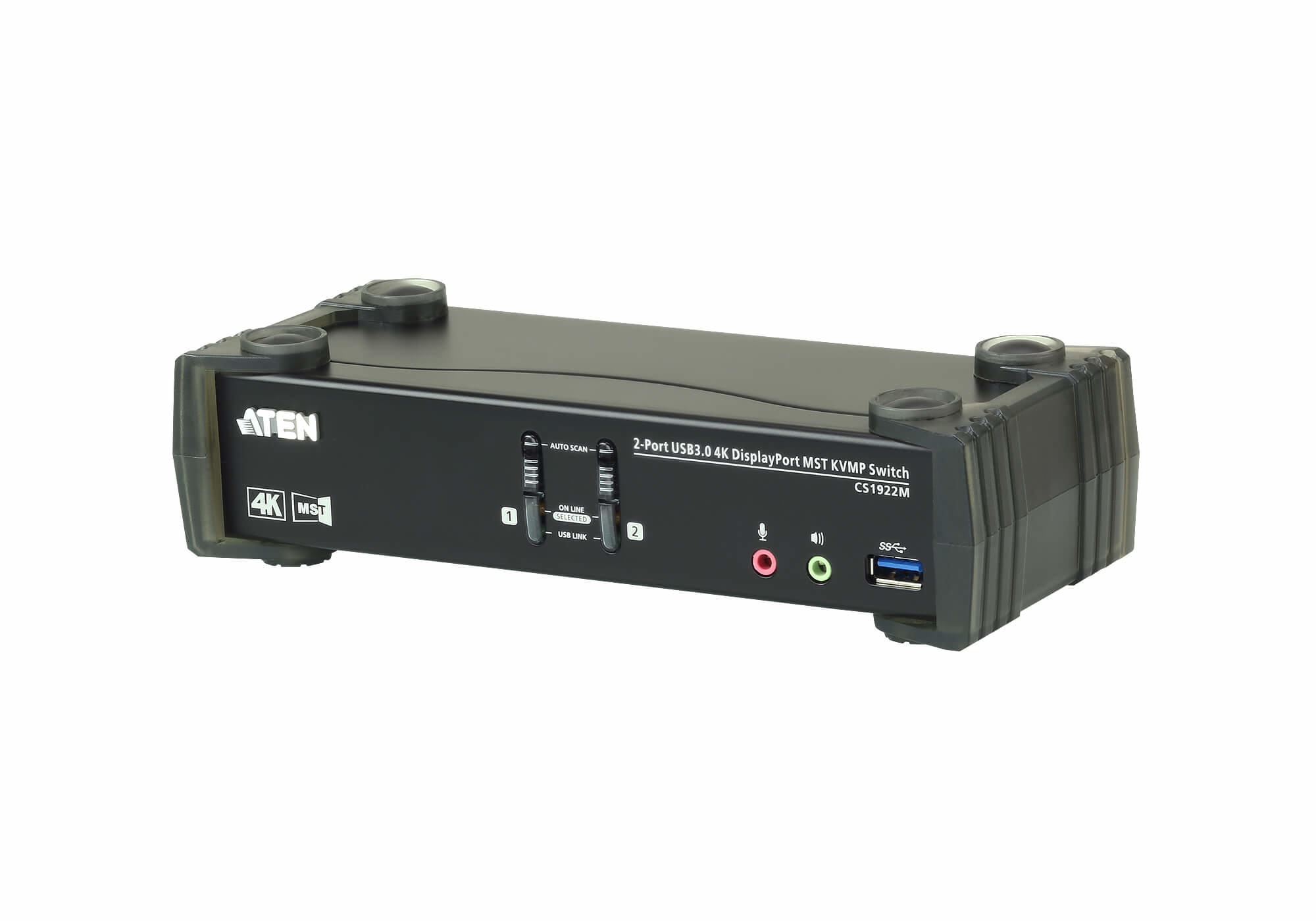

ATEN 2 PORT USB 3.0 4K DISPLAYPORT KVMP SWITCH WITH BUILD IN MST HUB
Networking > Network Accessories
- Brand: ATEN
- Category: Switches
- SKU: CS1922M-AT-U
- MPN: CS1922M-AT-U
−5%
Overview
Incorporating the latest Multi-Stream Transport (MST) technology, the CS1922M 2-Port USB 3.0 4K DisplayPort MST KVMP™ Switch is the world's first DisplayPort KVM switch with a built-in MST hub. The CS1922M enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections.
1x 2-Port USB 3.0 4K DisplayPort MST KVMP™ Switch
2x LIN5-20K1-K13G DisplayPort 1.2 Cables (1.5m/5ft)
2x LIN6-11C1-E12G USB Cables (USB 3.0-A to USB 3.0-B; 1.8m/6ft)
4x LIN5-0205-21DG/CD Audio Cables (1.8m/6ft)
1x LIN2-418K-E12G / 0AD8-8005-40MG Power Adapter
1x User Instructions
1x 2-Port USB 3.0 4K DisplayPort MST KVMP™ Switch
2x LIN5-20K1-K13G DisplayPort 1.2 Cables (1.5m/5ft)
2x LIN6-11C1-E12G USB Cables (USB 3.0-A to USB 3.0-B; 1.8m/6ft)
4x LIN5-0205-21DG/CD Audio Cables (1.8m/6ft)
1x LIN2-418K-E12G / 0AD8-8005-40MG Power Adapter
1x User Instructions
Key features
- Number of computers controlled: 2
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DisplayPort
- DisplayPorts quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 2
- Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
- Console USB ports quantity: 2
- USB hub: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
- USB connector type: USB Type-A, USB Type-B
- Audio connections: Yes
- Headphone outputs: 4
- Number of microphone inputs: 4
- DC-in jack: Yes
- HD type: 4K Ultra HD
- Maximum resolution: 4096 x 2160 pixels
- Video bandwidth: 60 Hz
- Scan interval: 1,5,99 s
- Firmware upgradeable: Yes
- Product colour: Black
- Housing material: Metal, Plastic
- LED indicators: Yes
- Push button: Yes
Specifications
Power
| Power source | DC |
|---|---|
| Input voltage | 5 V |
| Power consumption (typical) | 4.09 W |
Design
| Product colour | Black |
|---|---|
| Housing material | Metal, Plastic |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Built-in display | No |
|---|
Performance
| HD type | 4K Ultra HD |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,99 s |
| Firmware upgradeable | Yes |
Packaging data
| Package width | 100 mm |
|---|---|
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.84 kg |
Packaging content
| Quick installation guide | Yes |
|---|---|
| Manual | Yes |
Ports & interfaces
| Number of computers controlled | 2 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 4 |
| Number of microphone inputs | 4 |
| DC-in jack | Yes |
Weight & dimensions
| Width | 210 mm |
|---|---|
| Depth | 88 mm |
| Height | 55.5 mm |
| Weight | 560 g |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Questions
$907.34inc GST
