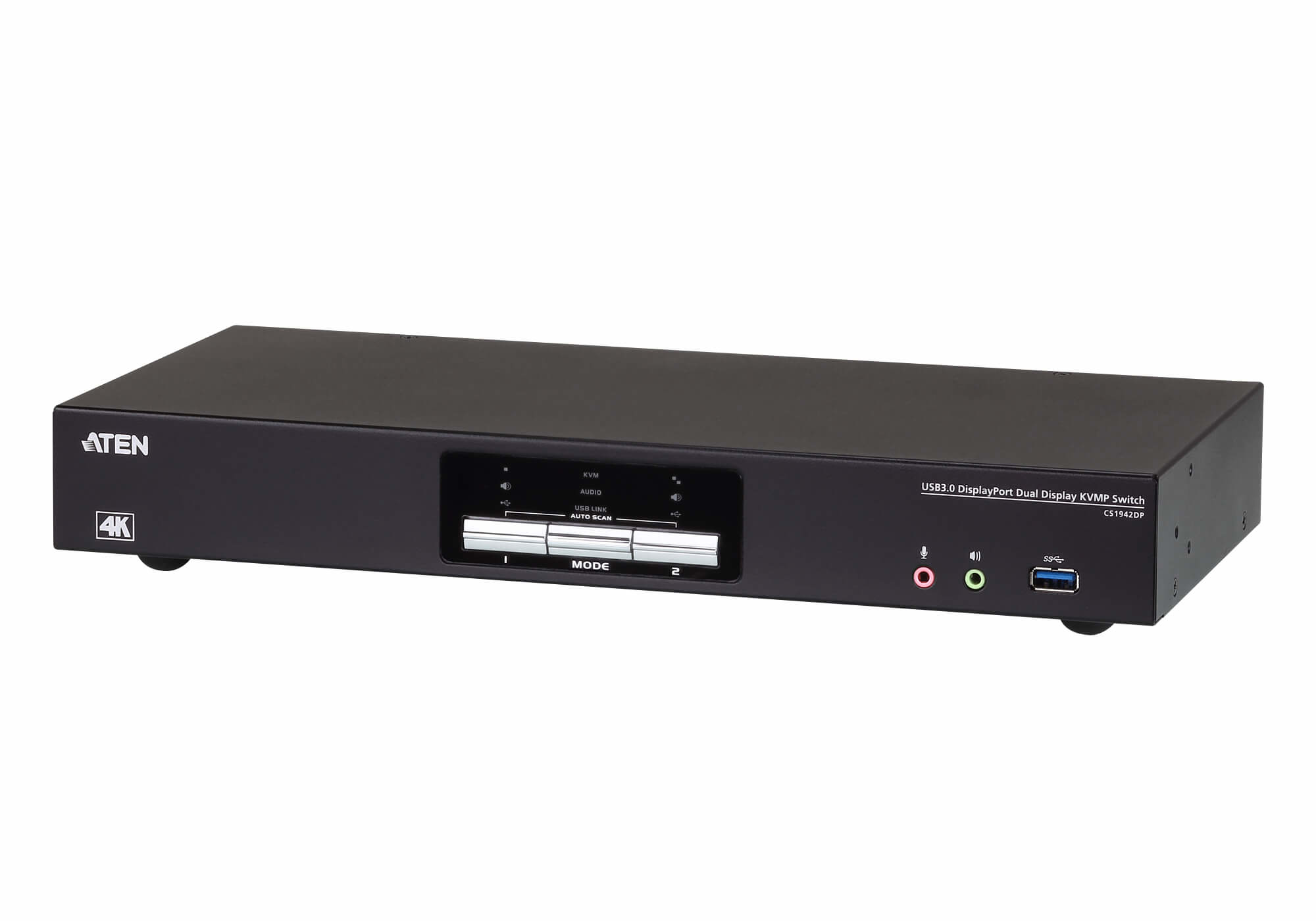

The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors. 1x 2-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch 4x LIN5-20K1-K13G DisplayPort 1.2 Cables 2x LIN6-11C1-E12G USB 3.0 Cables 4x LIN5-0205-21CG/LIN5-0205-21DG Audio Cables 1x LIN2-418K-E12G Power Adapter 1x User Instructions
Key features
Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort
DisplayPorts quantity: 6
DisplayPort version: 1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 2
Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity: 2
USB hub: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
Headphone outputs: 4
Number of microphone inputs: 4
DC-in jack: Yes
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
HD type: 4K Ultra HD
Maximum resolution: 4096 x 2160 pixels
Video bandwidth: 60 Hz
Scan interval: 1,99 s
Auto scan delay (min): 1 s
Auto scan delay (max): 99 s
HDCP: Yes
Daisy chain: Yes
Specifications
Power
Power source
DC
Input voltage
12 V
Power consumption (typical)
3.48 W
Design
Rack mounting
No
Product colour
Black
Housing material
Metal
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Display
Built-in display
No
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Performance
HD type
4K Ultra HD
Maximum resolution
4096 x 2160 pixels
Video bandwidth
60 Hz
Scan interval
1,99 s
Auto scan delay (min)
1 s
Auto scan delay (max)
99 s
HDCP
Yes
Daisy chain
Yes
Firmware upgradeable
Yes
Logistics data
Master (outer) case net weight
8.22 kg
Harmonized System (HS) code
85176200
Master (outer) case width
375 mm
Master (outer) case length
565 mm
Master (outer) case height
258 mm
Master (outer) case gross weight
11.2 kg
Products per master (outer) case
3 pc(s)
Packaging data
Package width
116 mm
Package depth
540 mm
Package height
233 mm
Package weight
3.36 kg
Packaging content
Cables included
Audio (3.5mm), DisplayPort to Mini DisplayPort, USB
Manual
Yes
AC adapter included
Yes
Ports & interfaces
Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
DisplayPorts quantity
6
DisplayPort version
1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
2
Console ports
3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity
2
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
