ATEN 2 PORT USB HDMI CABLE KVM SWTCH Networking > Network Accessories
Brand: ATEN Category: Networking SKU: CS692-AT MPN: CS692-AT Home Networking ATEN ATEN ATEN 2-Port USB HDMI KVM Switch with Audio
SKU CNZ-DD-012774
MPN CS692-AT Price inc GST $135.69
$117.99 ex GST · NZD

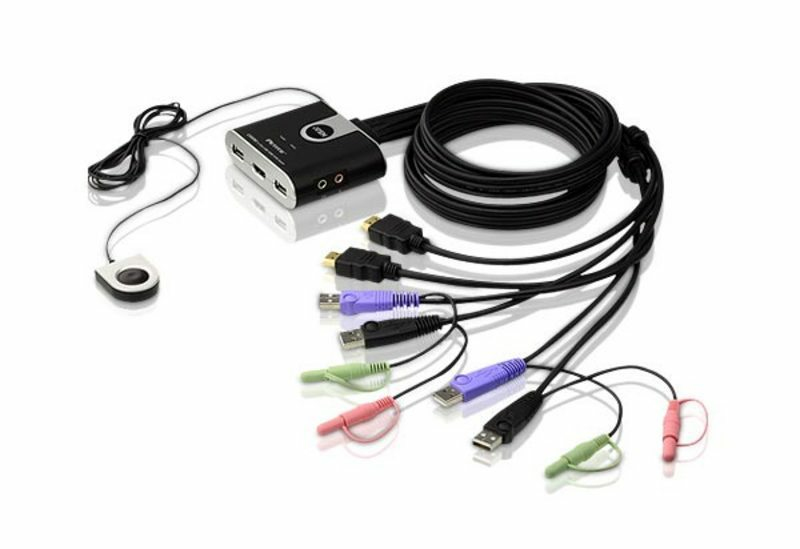

Sign in for trade pricing Tracked courier, NZ-wide. Rates calculated at checkout. Online only, no pick-up.GST tax invoice emailed the moment your order is paid.Genuine NZ warranty , serviced in New Zealand.Your Consumer Guarantees Act rights apply on top. Overview Specifications Questions Overview The CS692 2-Port USB HDMI/Audio Cable KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.
Key features Number of computers controlled: 2 Keyboard port type: USB Mouse port type: USB Video port type: HDMI HDMI ports quantity: 2 Console ports: 3.5mm headphone, 3.5mm mic, HDMI, USB A Console USB ports quantity: 2 USB 2.0 Type-A hub ports quantity: 4 USB connector type: USB Type-A Audio connections: Yes Headphone outputs: 3 Number of microphone inputs: 3 HD type: WUXGA Maximum resolution: 1920 x 1200 pixels Video bandwidth: 60 Hz Scan interval: 3,5,10,20 s Rack mounting: No Product colour: Black Housing material: Plastic LED indicators: Yes Push button: Yes Hot keys: Yes Built-in display: No Power source: DC At a glance Power source DC Input voltage 5 V Power consumption (typical) 0.72 W Rack mounting No Product colour Black Housing material Plastic LED indicators Yes Push button Yes
All 47 specifications Specifications Power Power source DC Input voltage 5 V Power consumption (typical) 0.72 W
Design Rack mounting No Product colour Black Housing material Plastic LED indicators Yes Push button Yes Hot keys Yes
Performance HD type WUXGA Maximum resolution 1920 x 1200 pixels Video bandwidth 60 Hz Scan interval 3,5,10,20 s
Logistics data Master (outer) case net weight 4.09 kg Harmonized System (HS) code 85176200 Master (outer) case width 395 mm Master (outer) case length 405 mm Master (outer) case height 182 mm Master (outer) case gross weight 6.13 kg Products per master (outer) case 10 pc(s)
Packaging data Package width 70 mm Package depth 163 mm Package height 235 mm Package weight 550 g
Packaging content Quick installation guide Yes Manual Yes
Ports & interfaces Number of computers controlled 2 Keyboard port type USB Mouse port type USB Video port type HDMI HDMI ports quantity 2 Console ports 3.5mm headphone, 3.5mm mic, HDMI, USB A Console USB ports quantity 2 USB 2.0 Type-A hub ports quantity 4 USB connector type USB Type-A Audio connections Yes Headphone outputs 3 Number of microphone inputs 3
Weight & dimensions Width 82.4 mm Depth 66.5 mm Height 25.2 mm Weight 409 g
Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 80% Storage relative humidity (H-H) 0 - 80%
$135.69 inc GST
