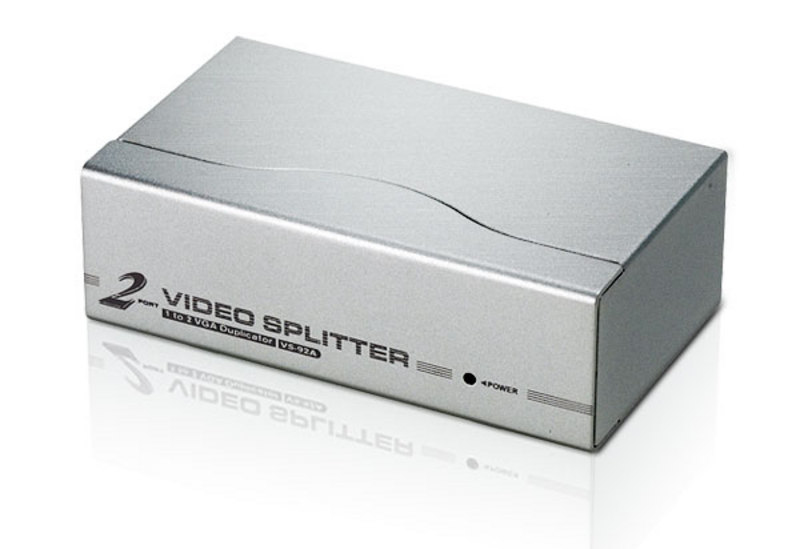

ATEN 2 PORT VGA SPLITTER Networking > Network Accessories
Brand: ATEN Category: Networking SKU: VS92A-AT-U MPN: VS92A-AT-U Home Networking ATEN ATEN ATEN 2-Port VGA Video Splitter (350 MHz) Overview Specifications Questions Overview The VS92A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to two outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 8 displays, and offering bandwidth up to 350 MHz, the VS92A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.
Key features Video port type: VGA Video out: 2x VGA Video ports quantity: 3 DC-in jack: Yes Product colour: Silver Housing material: Metal Maximum resolution: 1920 x 1440 pixels Maximum operating distance: 30 m Maximum refresh rate: 60 Hz Bandwidth: 350 MHz LED indicators: Power AC input voltage: 9 V Power consumption (typical): 1.15 W Width: 75.1 mm Depth: 130 mm Height: 44 mm Weight: 481 g Quantity per pack: 1 pc(s) Package width: 59 mm Package depth: 239 mm Package height: 160 mm Package weight: 130 g Manual: Yes AC adapter included: Yes At a glance AC input voltage 9 V Power consumption (typical) 1.15 W Product colour Silver Housing material Metal Maximum resolution 1920 x 1440 pixels Maximum operating distance 30 m Maximum refresh rate 60 Hz Bandwidth 350 MHz
All 34 specifications Specifications Power AC input voltage 9 V Power consumption (typical) 1.15 W
Features Product colour Silver Housing material Metal Maximum resolution 1920 x 1440 pixels Maximum operating distance 30 m Maximum refresh rate 60 Hz Bandwidth 350 MHz LED indicators Power
Logistics data Master (outer) case net weight 9.62 kg Harmonized System (HS) code 85176990 Master (outer) case width 315 mm Master (outer) case length 490 mm Master (outer) case height 338 mm Master (outer) case gross weight 13.2 kg Products per master (outer) case 20 pc(s)
Packaging data Quantity per pack 1 pc(s) Package width 59 mm Package depth 239 mm Package height 160 mm Package weight 130 g
Packaging content Manual Yes AC adapter included Yes
Ports & interfaces Video port type VGA Video out 2x VGA Video ports quantity 3 DC-in jack Yes
Weight & dimensions Width 75.1 mm Depth 130 mm Height 44 mm Weight 481 g
Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 80%
$75.89 inc GST
