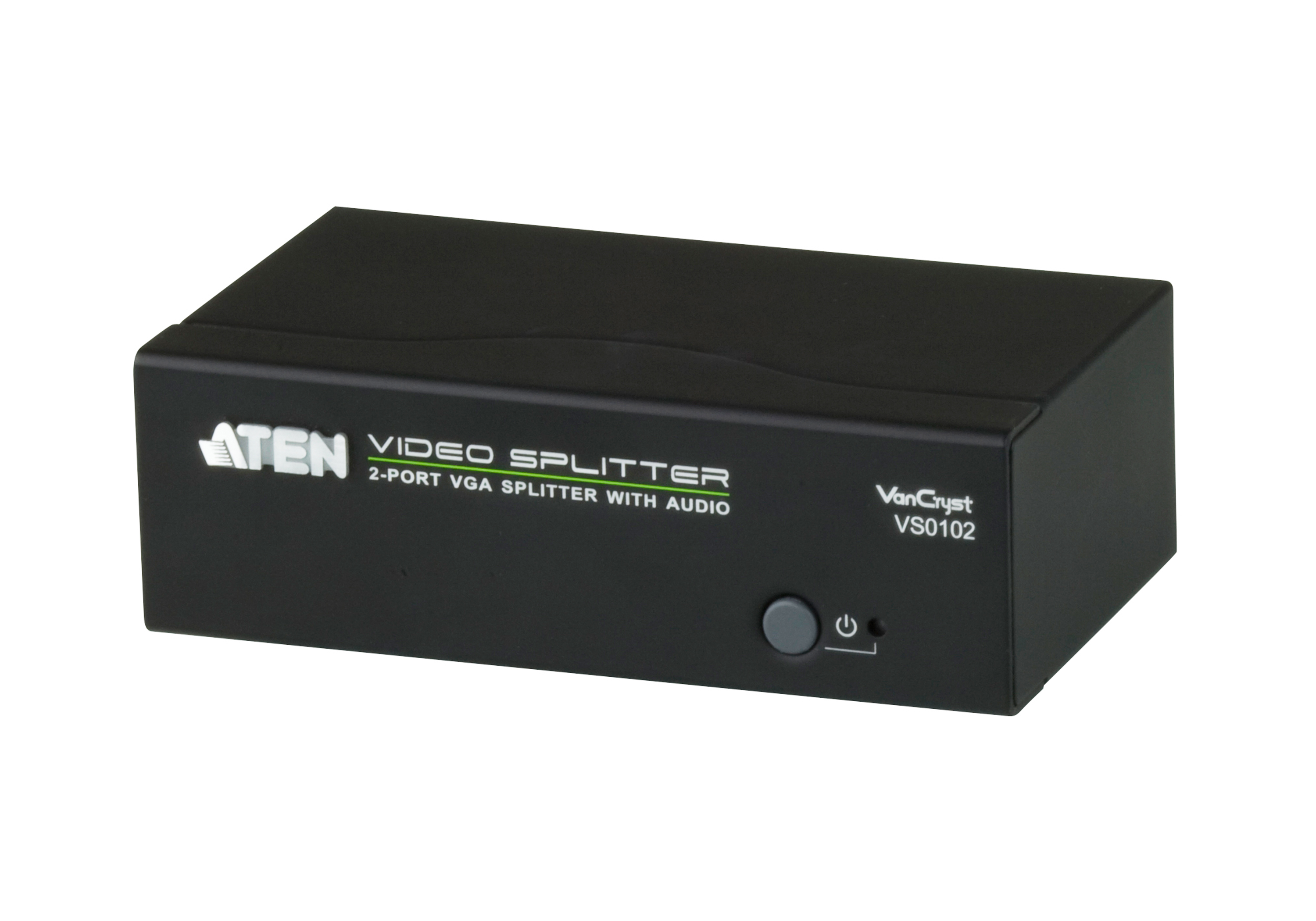

The ATEN VS0102 2-Port VGA Splitter with Audio is VGA splitter that allow a single VGA video & audio signal to be distributed to two output displays with independent stereo control. The splitter support up to 450MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920x1440.
Furthermore, for complete systems integration, serial control is standard through the VS0102 built-in RS-232 ports, which allow the splitter to be controlled through a high-end controller or PC.
Furthermore, for complete systems integration, serial control is standard through the VS0102 built-in RS-232 ports, which allow the splitter to be controlled through a high-end controller or PC.
Key features
Video port type: VGA
Video out: 2x VGA
Video ports quantity: 3
Audio ports quantity: 3
Serial ports quantity: 1
DC-in jack: Yes
Product colour: Black
Housing material: Metal
Maximum resolution: 1920 x 1440 pixels
Maximum operating distance: 30 m
Maximum refresh rate: 60 Hz
Bandwidth: 450 MHz
Extended display identification data (EDID): Yes
Plug and Play: Yes
Ethernet LAN: No
Output voltage: 5.3 V
Power consumption (max): 0.74 W
Width: 76.1 mm
Depth: 130 mm
Height: 44 mm
Weight: 460 g
Quantity per pack: 1 pc(s)
Packaging content: 1x 2-Port VGA Splitter with Audio
1x Power Adapter
1x User Instructions
Operating temperature (T-T): 0 - 50 °C
Specifications
Power
Output voltage
5.3 V
Power consumption (max)
0.74 W
Network
Ethernet LAN
No
Features
Product colour
Black
Housing material
Metal
Maximum resolution
1920 x 1440 pixels
Maximum operating distance
30 m
Maximum refresh rate
60 Hz
Bandwidth
450 MHz
Extended display identification data (EDID)
Yes
Plug and Play
Yes
Packaging data
Quantity per pack
1 pc(s)
Packaging content
Packaging content
1x 2-Port VGA Splitter with Audio
1x Power Adapter
1x User Instructions
