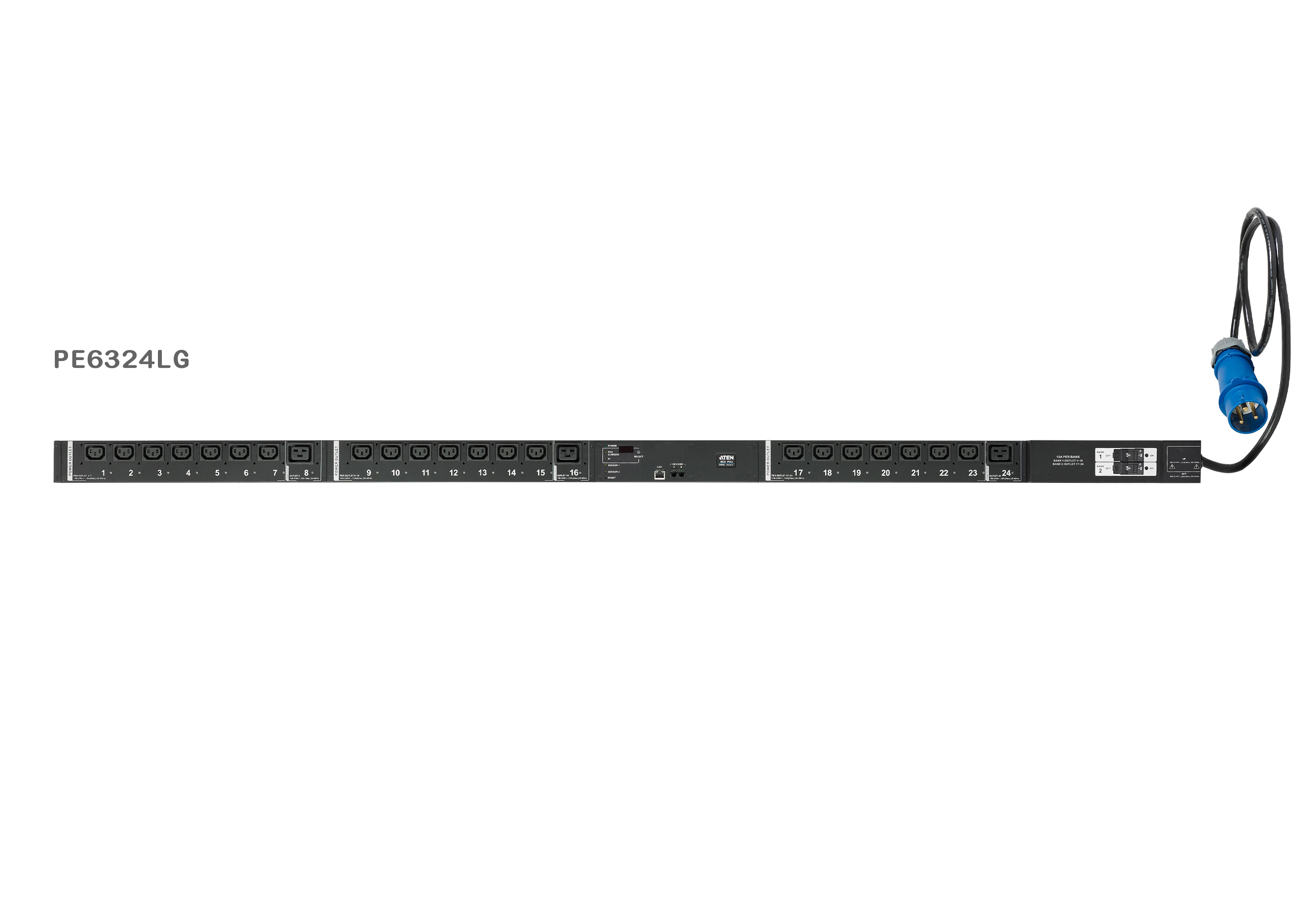

ATEN 24 PORT 0U 32A SMART PDU, 21XC13 + 3XC19 OUTLETS

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: PE6324LG-AX
  • MPN: PE6324LG-AX
ATEN

ATEN 32A 24 Outlet Switched Bank Metered PDU + Free Eco PDU Manager…

Our SKU
MPN

Overview

The NRGence PE6324L eco PDUs are low profile intelligent PDUs that contain 24 AC outlets and are available in various IEC or NEMA socket configurations. The low profile series has a smaller input region on the PDU to provide more installation space for data centers.

The PE6324L eco PDUs offers remote power control with real-time power measurement - allowing you to monitor the power status of devices attached to the PDUs, either at the PDU device or Bank level, from practically any location via a TCP/IP connection. The power status of each outlet can be set individually, allowing users to switch each device On/Off.

NRGence eco PDU supports any 3rd party v1, v2 & v3 SNMP Manager Software and ATEN ecoDC (Energy Management Web GUI). eco DC provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.

Key features

  • PDU types: Metered, Switched
  • Type: Single-phase
  • Rack capacity: 0U
  • Mounting: Vertical
  • Housing material: Metal
  • Product colour: Black
  • AC outlets quantity: 24 AC outlet(s)
  • Power plug: IEC 60309
  • AC outlet types: C13 coupler, C19 coupler
  • Ethernet LAN (RJ-45) ports: 1
  • LED indicators: Yes
  • Cable length: 1.6 m
  • Monitoring: Humidity, Power, Temperature
  • Supported network protocols: TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, SNMP V1, V2&V3, Telnet
  • Nominal input voltage: 100-240 V
  • AC input frequency: 50 - 60 Hz
  • Maximum current: 32 A
  • Nominal output voltage: 100-240 V
  • Load capacity: 7360 VA
  • Power protection features: Overload
  • Compliance certificates: RoHS
  • Certification: CE, CE-LVD
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C

Specifications

Power

Nominal input voltage100-240 V
AC input frequency50 - 60 Hz
Maximum current32 A
Nominal output voltage100-240 V
Load capacity7360 VA
Power protection featuresOverload

Design

PDU typesMetered, Switched
TypeSingle-phase
Rack capacity0U
MountingVertical
Housing materialMetal
Product colourBlack

Features

LED indicatorsYes
Cable length1.6 m

Certificates

Compliance certificatesRoHS
CertificationCE, CE-LVD

Packaging content

ManualYes

Ports & interfaces

AC outlets quantity24 AC outlet(s)
Power plugIEC 60309
AC outlet typesC13 coupler, C19 coupler
Ethernet LAN (RJ-45) ports1

Management features

MonitoringHumidity, Power, Temperature
Supported network protocolsTCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, SNMP V1, V2&V3, Telnet

Weight & dimensions

Width66 mm
Depth1775 mm
Height44 mm
Weight5.76 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Questions

$2,525.39inc GST
