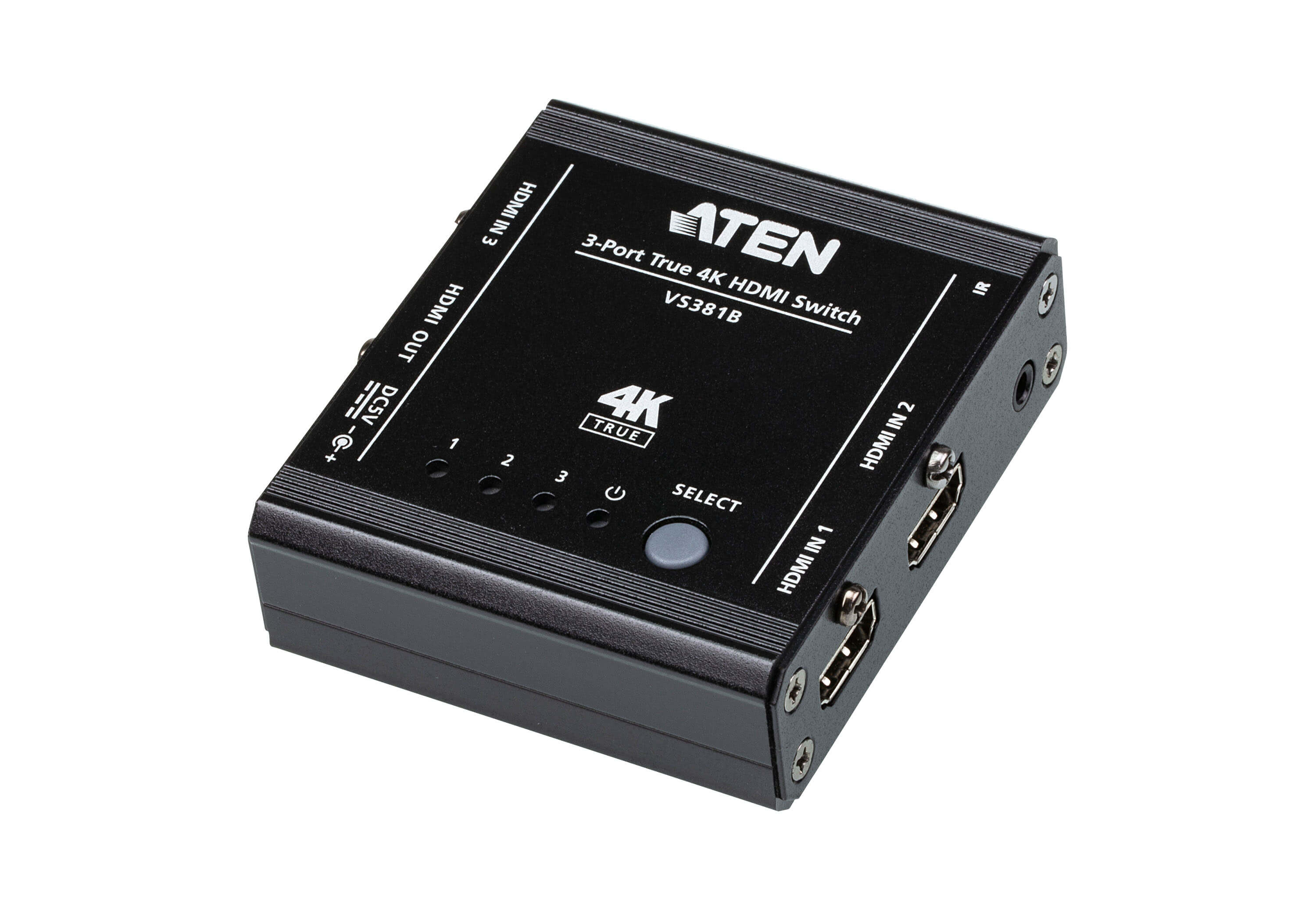

ATEN 3-PORT TRUE 4K HDMI SWITCH
Networking > Network Accessories
- Brand: ATEN
- Category: Switches
- SKU: VS381B-AT
- MPN: VS381B-AT
Overview
The VS381B 3-Port True 4K HDMI Switch with Auto Switching provides you to switch 3 HDMI input sources to an HDMI display. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, HDR, 3D, Deep Color, and HD lossless audio formats. Furthermore, the VS381B offers switching methods between HDMI sources by front panel pushbuttons and IR remote control, enabling users to effortlessly select desired input.
Featuring above functionalities provides you a practical solution for auditorium, home theater, meeting rooms, trade shows, shopping centers, and more.
Package Contents
- 1x VS381B 3-Port True 4K HDMI Switch
- 1x USB to DC Power Cord
- 1x IR Remote Control
- 1x IR Receiver
- 1x User Instructions
Featuring above functionalities provides you a practical solution for auditorium, home theater, meeting rooms, trade shows, shopping centers, and more.
Package Contents
- 1x VS381B 3-Port True 4K HDMI Switch
- 1x USB to DC Power Cord
- 1x IR Remote Control
- 1x IR Receiver
- 1x User Instructions
Key features
- Video port type: HDMI
- HDMI ports quantity: 4
- HDMI in: 3
- Number of HDMI outputs: 1
- 3.5 mm (1/8-inch) in: Yes
- DC-in jack: Yes
- Material: Metal
- Product colour: Black
- Plug and Play: Yes
- HDCP: Yes
- Maximum refresh rate: 60 Hz
- Maximum operating distance: 5 m
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- Bandwidth: 18 Gbit/s
- Bandwidth: 600 MHz
- Maximum resolution: 4096 x 2160 pixels
- External power adapter: Yes
- 3D: Yes
- HD type: 4K Ultra HD
- Dolby technologies: Dolby Vision
- Input impedance: 100 Ω
- HDCP version: 2.2
- Power consumption (typical): 1.46 W
- Width: 71.6 mm
Specifications
Power
| Power consumption (typical) | 1.46 W |
|---|
Features
| Material | Metal |
|---|---|
| Product colour | Black |
| Plug and Play | Yes |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Maximum operating distance | 5 m |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Bandwidth | 600 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| External power adapter | Yes |
| 3D | Yes |
| HD type | 4K Ultra HD |
| Dolby technologies | Dolby Vision |
| Input impedance | 100 Ω |
| HDCP version | 2.2 |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Packaging content
| AC adapter included | Yes |
|---|
Ports & interfaces
| Video port type | HDMI |
|---|---|
| HDMI ports quantity | 4 |
| HDMI in | 3 |
| Number of HDMI outputs | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| DC-in jack | Yes |
Weight & dimensions
| Width | 71.6 mm |
|---|---|
| Depth | 79 mm |
| Height | 25.5 mm |
| Weight | 150 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Questions
$120.74inc GST
