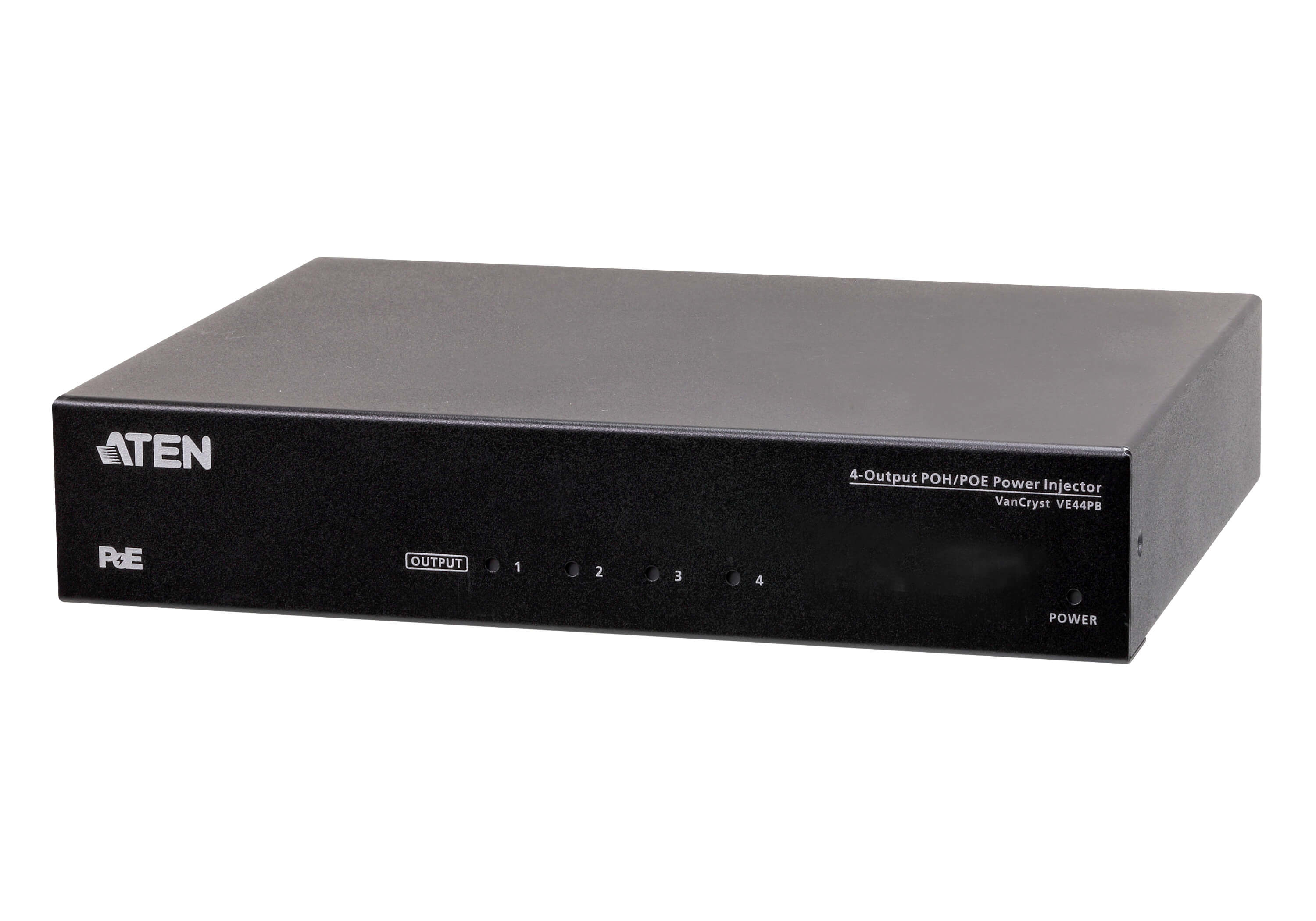

ATEN 4 OUTPUT POE POWER INJECTOR
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VE44PB-AT-U
- MPN: VE44PB-AT-U
ATEN
ATEN VE44PB-AT-U network extender Network transmitter & receiver Black
- Our SKU
- MPN
- Rating
- No reviews yet
−11%
Overview
The ATEN VE44PB is a 4-port power injector for remote power supply for up to four compatible ATEN PoH-powered or PoE-powered devices via Cat 5e/6/6a cables. Deploying the VE44PB in your Pro AV facilities eliminates the need for local power supplies of the connected devices. It supplies up to 15.4W of power per PSE port. Featuring HDBaseT connectivity, the VE44PB can extend HDMI connection over a long distance via Cat 6/6a cables; meanwhile, still ensures unaffected video and image quality. Besides, the status LEDs on its front panel indicates an at-a-glance overview of the connected devices, allowing you to perform real-time monitoring and trouble shooting in the case of emergency. With its compact and rack mountable design, the VE44PB can be flexibly installed anywhere between the transmitter and receiver that require remote PoH / PoE powering.
1x 4-Output POH/POE Power Injector
1x KC06-0040-200G Mounting Kit
1x LIN2-418K-E12G Power Cord Cable
1x User Instructions
1x 4-Output POH/POE Power Injector
1x KC06-0040-200G Mounting Kit
1x LIN2-418K-E12G Power Cord Cable
1x User Instructions
Key features
- Type: Network transmitter & receiver
- Data transfer rate: 10.2 Mbit/s
- Cable types supported: Cat5e, Cat6, Cat6a
- Plug and Play: Yes
- Cabling technology: 10/100Base-T(X)
- Networking standards: IEEE 802.3af
- Ethernet LAN (RJ-45) ports: 8
- RJ-45 ports quantity (transmitter): 4
- Power over Ethernet (PoE) ports quantity: 4
- DC-in jack: Yes
- Product colour: Black
- Housing material: Metal
- Rack mounting: Yes
- LED indicators: Yes
- On/off switch: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (typical): 1.1 W
- Power consumption (max): 1.2 W
- Power over Ethernet (PoE): Yes
- Total Power over Ethernet (PoE) budget: 15.4 W
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating temperature (transmitter): 0 - 80 °C
Specifications
Power
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 1.1 W |
| Power consumption (max) | 1.2 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 15.4 W |
Design
| Product colour | Black |
|---|---|
| Housing material | Metal |
| Rack mounting | Yes |
| LED indicators | Yes |
| On/off switch | Yes |
Network
| Cabling technology | 10/100Base-T(X) |
|---|---|
| Networking standards | IEEE 802.3af |
Performance
| Type | Network transmitter & receiver |
|---|---|
| Data transfer rate | 10.2 Mbit/s |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Plug and Play | Yes |
Packaging data
| Package width | 207 mm |
|---|---|
| Package depth | 414 mm |
| Package height | 117 mm |
| Package weight | 1.91 kg |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 8 |
|---|---|
| RJ-45 ports quantity (transmitter) | 4 |
| Power over Ethernet (PoE) ports quantity | 4 |
| DC-in jack | Yes |
Weight & dimensions
| Width | 161 mm |
|---|---|
| Depth | 215 mm |
| Height | 41 mm |
| Weight | 1.56 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (transmitter) | 0 - 80 °C |
| Storage temperature (transmitter) | 0 - 80 °C |
Questions
$673.89inc GST
