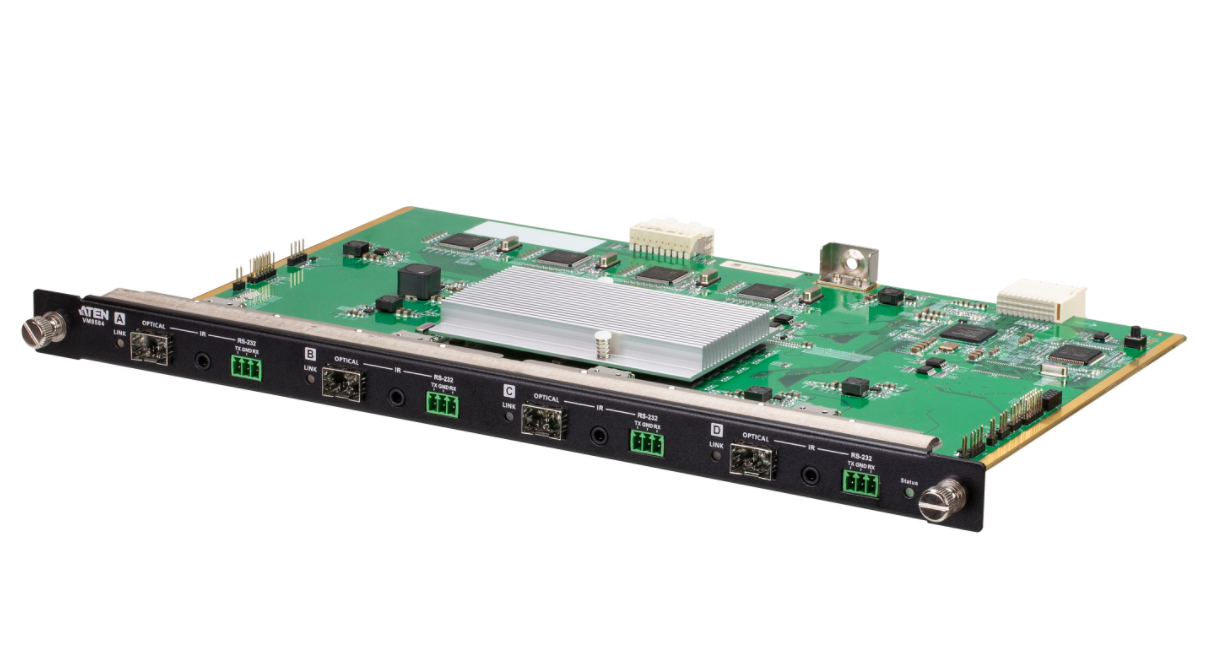

ATEN 4-PORT 10G OPTICAL OUTPUT BOARD 4K@300M MULTI-MODE FIBRE
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VM8584K1-AT
- MPN: VM8584K1-AT
ATEN
ATEN 4-Port 10G Optical Output Board (4K@300m (K1, MM) / 10km (K2,…
- Our SKU
- MPN
- Barcode
- Rating
- No reviews yet
−14%
Overview
The VM8584 4-Port 10G Optical Output Board offers an easy way to route 4 HDMI sources to HDMI displays through optical extenders, and up to 16/32 input and 16/32 output connections on an ATEN Modular Matrix Switch through various AV interfaces. Designed with fiber optics technology for long-distance transmission, the VM8584 along with its SFP+ module extends uncompressed 4K signal up to 300 m (using VM8584K1) or 10 km (using VM8584K2) over duplex fiber optic cables. The optical fiber simplifies cabling by guaranteeing an interference-free long-haul transmission of audio, video, IR, and RS-232 control signals over one single set of duplex cables that easily connects to the SFP+ slot. Moreover, the VM8584 supports a high data rate of 10.2 Gbps and meets HDMI Specifications that include 3D, Deep Color, and 4K to ensure superior video quality.
1x VM8584 4-Port 10G Optical Output Board
4x SFP+ Modules
4x 3-Pole Terminal Blocks
1x IR Receiver
1x IR Emitter
1x User Instructions
1x VM8584 4-Port 10G Optical Output Board
4x SFP+ Modules
4x 3-Pole Terminal Blocks
1x IR Receiver
1x IR Emitter
1x User Instructions
Key features
- Product type: Output board
- Product colour: Black
- Material: Metal
- LED indicators: Yes
- Compatibility: Aten VM3250/VM3200/VM1600A
- Power consumption (typical): 22.96 W
- Width: 238 mm
- Depth: 352 mm
- Height: 23.3 mm
- Weight: 785 g
- Package width: 285 mm
- Package depth: 426 mm
- Package height: 57 mm
- Package weight: 1.14 kg
- Quick start guide: Yes
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 0 - 80%
- Products per master (outer) case: 2 pc(s)
- Master (outer) case gross weight: 2.76 kg
- Master (outer) case length: 440 mm
- Master (outer) case width: 300 mm
- Master (outer) case height: 138 mm
Specifications
Power
| Power consumption (typical) | 22.96 W |
|---|
Design
| Product type | Output board |
|---|---|
| Product colour | Black |
| Material | Metal |
| LED indicators | Yes |
| Compatibility | Aten VM3250/VM3200/VM1600A |
Logistics data
| Products per master (outer) case | 2 pc(s) |
|---|---|
| Master (outer) case gross weight | 2.76 kg |
| Master (outer) case length | 440 mm |
| Master (outer) case width | 300 mm |
| Master (outer) case height | 138 mm |
| Master (outer) case net weight | 1.57 kg |
Packaging data
| Package width | 285 mm |
|---|---|
| Package depth | 426 mm |
| Package height | 57 mm |
| Package weight | 1.14 kg |
Packaging content
| Quick start guide | Yes |
|---|
Weight & dimensions
| Width | 238 mm |
|---|---|
| Depth | 352 mm |
| Height | 23.3 mm |
| Weight | 785 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 80% |
