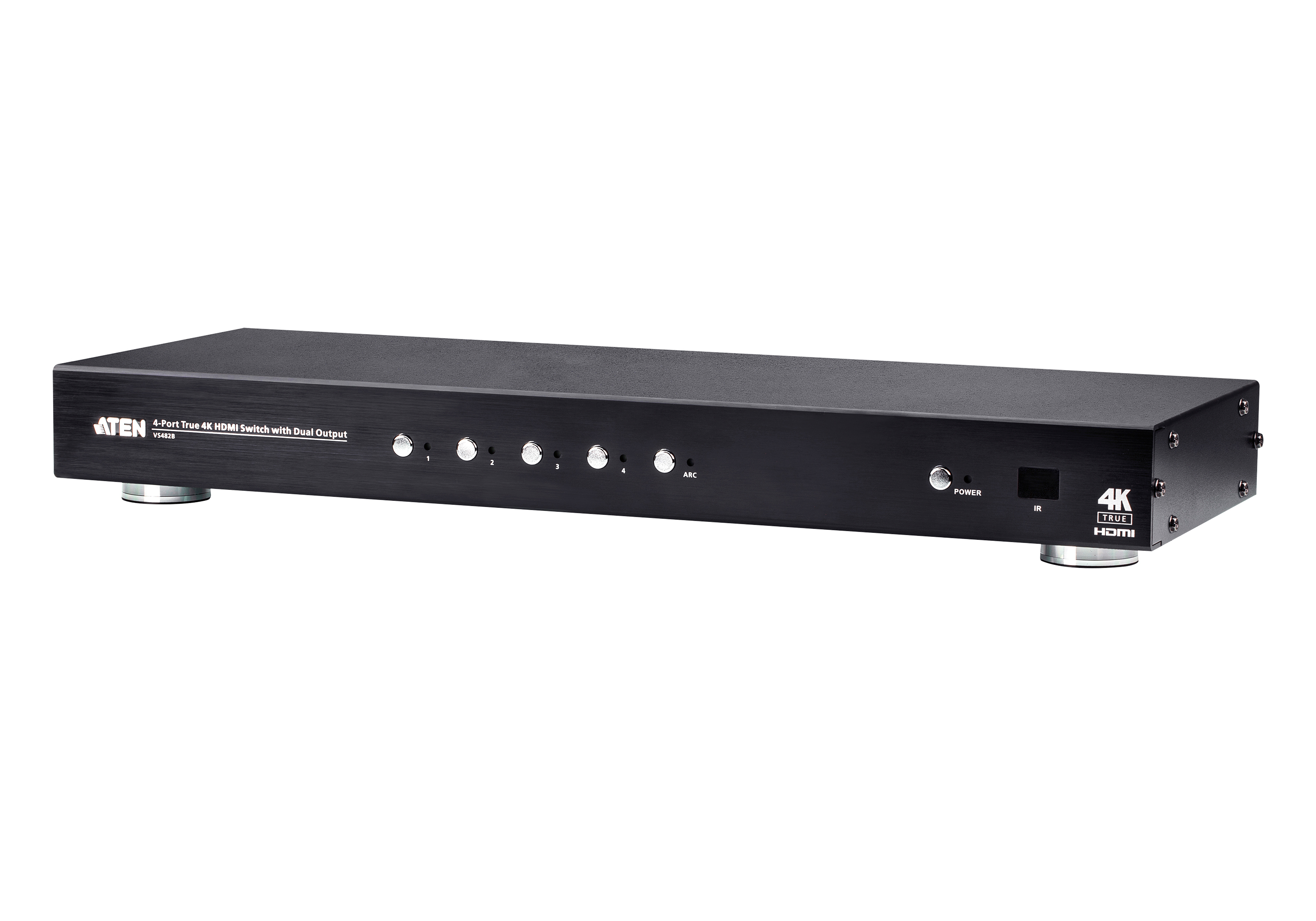

ATEN 4 PORT DUAL OUTPUT TRUE 4K HDMI SWITCH
Networking > Network Accessories
- Brand: ATEN
- Category: Switches
- SKU: VS482B-AT-U
- MPN: VS482B-AT-U
−15%
Overview
The ATEN VS482B Switch is an ideal solution for application requiring superior video resolution of True 4K when connecting 4 HDMI A/V sources to 2 HDMI displays. Complying with HDMI 2.0 standards, the switch's Audio Return Channel (ARC) function allows users to send audio without having to attach a separate audio cable.
1x VS482B 4-Port True 4K HDMI Switch with Dual Output
1x 0AD8-1005-26M1 Power Adapter
1x 2XRT-0010G IR Remote Control Unit
1x Mounting Kit
1x User Instructions
1x VS482B 4-Port True 4K HDMI Switch with Dual Output
1x 0AD8-1005-26M1 Power Adapter
1x 2XRT-0010G IR Remote Control Unit
1x Mounting Kit
1x User Instructions
Key features
- Video port type: HDMI
- HDMI ports quantity: 6
- HDMI version: 2.0
- HDMI in: 4
- Number of HDMI outputs: 2
- RS-232 ports: 1
- DC-in jack: Yes
- Material: Metal
- Product colour: Black
- Consumer Electronics Control (CEC) support: Yes
- HDCP: Yes
- Maximum refresh rate: 60 Hz
- Maximum operating distance: 3 m
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- Bandwidth: 18 Gbit/s
- LED indicators: Yes
- Bandwidth: 600 MHz
- Maximum resolution: 4096 x 2160 pixels
- 3D: Yes
- HD type: 4K Ultra HD
- Input impedance: 100 Ω
- Output impedance: 100 Ω
- HDCP version: 2.2
- Power consumption (typical): 3.29 W
Specifications
Power
| Power consumption (typical) | 3.29 W |
|---|
Features
| Material | Metal |
|---|---|
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Maximum operating distance | 3 m |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Bandwidth | 600 MHz |
| LED indicators | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| 3D | Yes |
| HD type | 4K Ultra HD |
| Input impedance | 100 Ω |
| Output impedance | 100 Ω |
| HDCP version | 2.2 |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|---|
| Master (outer) case width | 375 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 9.27 kg |
| Products per master (outer) case | 3 pc(s) |
| Master (outer) case net weight | 6.48 kg |
Packaging data
| Package width | 116 mm |
|---|---|
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 2.84 kg |
Packaging content
| Mounting kit | Yes |
|---|---|
| AC adapter included | Yes |
Technical details
| Compliance certificates | RoHS |
|---|
Ports & interfaces
| Video port type | HDMI |
|---|---|
| HDMI ports quantity | 6 |
| HDMI version | 2.0 |
| HDMI in | 4 |
| Number of HDMI outputs | 2 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
Weight & dimensions
| Width | 158.8 mm |
|---|---|
| Depth | 437.2 mm |
| Height | 44 mm |
| Weight | 2.16 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
