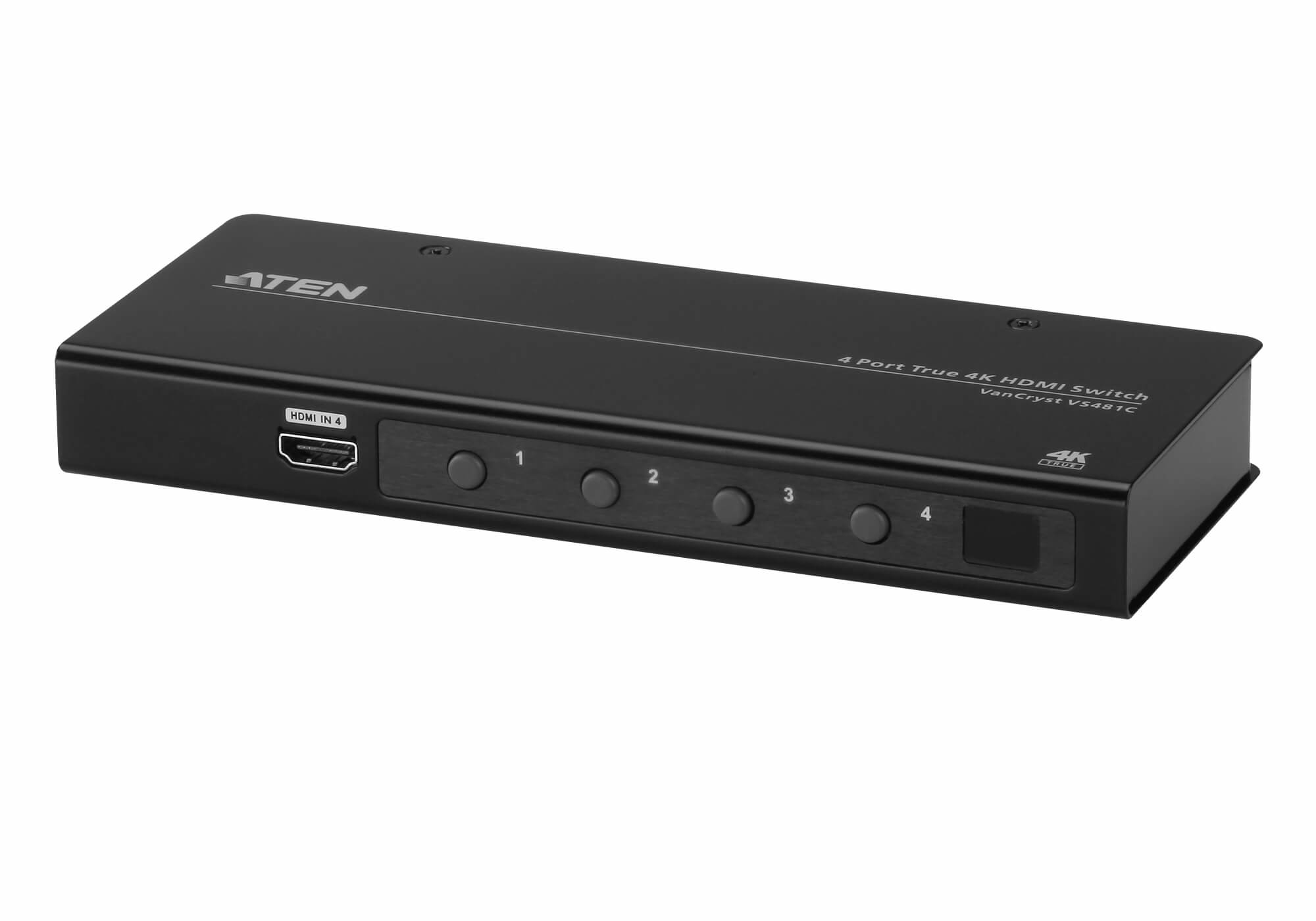

ATEN 4 PORT TRUE 4K HDMI SWITCH
Networking > Network Accessories
- Brand: ATEN
- Category: Switches
- SKU: VS481C-AT-U
- MPN: VS481C-AT-U
−15%
Overview
The ATEN VS481C is designed for applications that require the routing of 4 sources to one compatible display device. It enables the reliable transmission at video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. Integrator-friendly features include Auto Switching modes for auto port selection, bi-directional RS-232, and IR for remote device control.
Engineered to meet today's demand of True 4K signal transmission and user- oriented design, the ATEN VS481C is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.
1x VS481C 4-Port True 4K HDMI Switch
1x 0AD6-1005-10AG Power Adapter
1x 2XRT-0101G IR Remote Control Unit
1x LIN5-19V2-V21G HDMI Cable
1x User Instructions
Engineered to meet today's demand of True 4K signal transmission and user- oriented design, the ATEN VS481C is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.
1x VS481C 4-Port True 4K HDMI Switch
1x 0AD6-1005-10AG Power Adapter
1x 2XRT-0101G IR Remote Control Unit
1x LIN5-19V2-V21G HDMI Cable
1x User Instructions
Key features
- Video port type: HDMI
- HDMI ports quantity: 5
- HDMI version: 2.0
- HDMI in: 4
- Number of HDMI outputs: 1
- RS-232 ports: 1
- DC-in jack: Yes
- Material: Metal
- Product colour: Black
- Consumer Electronics Control (CEC) support: Yes
- Plug and Play: Yes
- HDCP: Yes
- Maximum refresh rate: 60 Hz
- Maximum operating distance: 3 m
- Bandwidth: 18 Gbit/s
- LED indicators: Yes
- Bandwidth: 600 MHz
- Maximum resolution: 4096 x 2160 pixels
- 3D: Yes
- HD type: HD
- Colour depth: 12 bit
- Input impedance: 100 Ω
- Output impedance: 100 Ω
- HDCP version: 2.2
Specifications
Power
| Power consumption (typical) | 0.924 W |
|---|
Features
| Material | Metal |
|---|---|
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| Plug and Play | Yes |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Maximum operating distance | 3 m |
| Bandwidth | 600 MHz |
| LED indicators | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| 3D | Yes |
| HD type | HD |
| Colour depth | 12 bit |
| Input impedance | 100 Ω |
| Output impedance | 100 Ω |
| HDCP version | 2.2 |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|---|
| Master (outer) case width | 315 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 178 mm |
| Master (outer) case gross weight | 8.57 kg |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case net weight | 6.54 kg |
Packaging data
| Package width | 59 mm |
|---|---|
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 822 g |
Ports & interfaces
| Video port type | HDMI |
|---|---|
| HDMI ports quantity | 5 |
| HDMI version | 2.0 |
| HDMI in | 4 |
| Number of HDMI outputs | 1 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
Weight & dimensions
| Width | 82.1 mm |
|---|---|
| Depth | 200 mm |
| Height | 25 mm |
| Weight | 654 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
