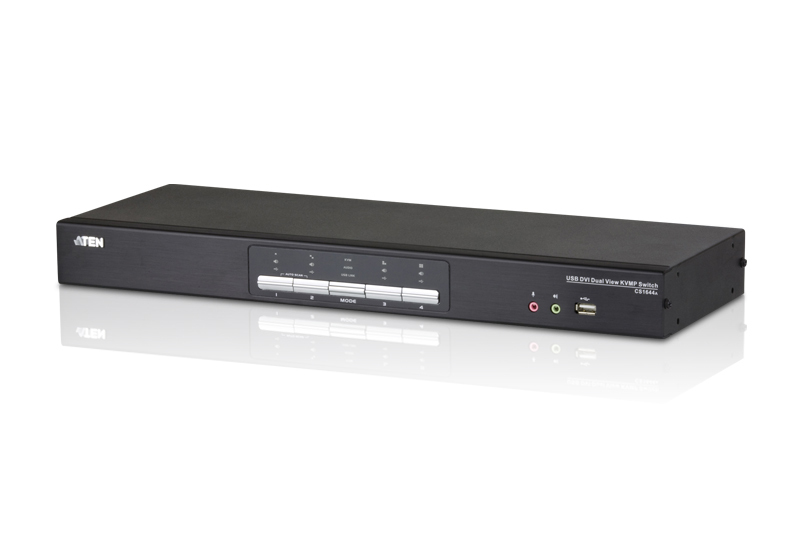

Brand: ATEN Category: Switches SKU: CS1644A-AT-U MPN: CS1644A-AT-U Home Switches ATEN ATEN ATEN 4-Port USB DVI Dual-View KVM Switch with Audio & USB 2.0 Hub… Overview Specifications Questions Overview The CS1644A 4-Port USB DVI Dual View KVMP™ Switch is a multi-application device that integrates a 4-port KVM switch with 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected.
Key features Number of computers controlled: 4 Keyboard port type: USB Mouse port type: USB Video port type: DVI-I DVI-I ports quantity: 10 USB 2.0 Type-B ports quantity: 4 Console ports: 3.5mm headphone, 3.5mm mic, DVI-I, USB A Console USB ports quantity: 2 USB hub: Yes USB 2.0 Type-A hub ports quantity: 2 USB connector type: USB Type-A Audio connections: Yes Headphone outputs: 4 Number of microphone inputs: 4 DC-in jack: Yes Ethernet LAN (RJ-45) ports: 1 HD type: WQXGA Maximum resolution: 2560 x 1600 pixels Video bandwidth: 60 Hz Scan interval: 1,99 s HDCP: Yes Rack mounting: Yes Rack capacity: 1U Product colour: Black At a glance Power source DC Input voltage 5.3 V Power consumption (typical) 12.19 W Rack mounting Yes Rack capacity 1U Product colour Black Housing material Metal, Plastic Push button Yes
All 56 specifications Specifications Power Power source DC Input voltage 5.3 V Power consumption (typical) 12.19 W
Design Rack mounting Yes Rack capacity 1U Product colour Black Housing material Metal, Plastic Push button Yes Hot keys Yes
Network Ethernet LAN (RJ-45) ports 1
Performance HD type WQXGA Maximum resolution 2560 x 1600 pixels Video bandwidth 60 Hz Scan interval 1,99 s HDCP Yes
Logistics data Master (outer) case net weight 13.5 kg Harmonized System (HS) code 85176200 Master (outer) case width 573 mm Master (outer) case length 642 mm Master (outer) case height 264 mm Master (outer) case gross weight 17.9 kg Products per master (outer) case 3 pc(s)
Packaging data Package width 208 mm Package depth 560 mm Package height 240 mm Package weight 5.5 kg
Sustainability Compliance certificates RoHS
Packaging content Cables included KVM Manual Yes
Ports & interfaces Number of computers controlled 4 Keyboard port type USB Mouse port type USB Video port type DVI-I DVI-I ports quantity 10 USB 2.0 Type-B ports quantity 4 Console ports 3.5mm headphone, 3.5mm mic, DVI-I, USB A Console USB ports quantity 2 USB hub Yes USB 2.0 Type-A hub ports quantity 2 USB connector type USB Type-A Audio connections Yes Headphone outputs 4 Number of microphone inputs 4 DC-in jack Yes
System requirements Windows operating systems supported Yes Linux operating systems supported Yes Mac operating systems supported Yes Other operating systems supported FreeBSD
Weight & dimensions Width 437.2 mm Depth 159.8 mm Height 44 mm Weight 2.32 kg
Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 80%
$1,099.39 inc GST
