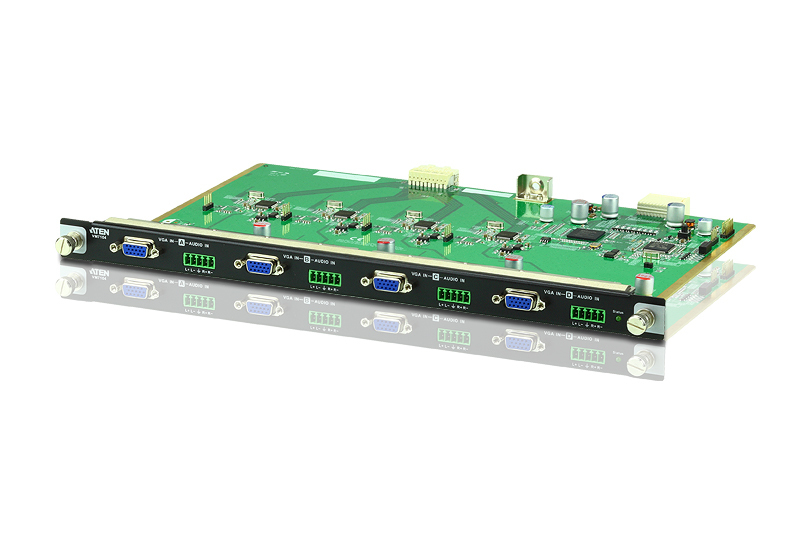

ATEN 4 PORT VGA INPUT BOARD FOR VM1600A/VM3200
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VM7104-AT
- MPN: VM7104-AT
−14%
Overview
The VM7104 4-Port VGA Input Board offers an easy way to route 4 VGA video and audio sources up to 16 displays, when used in combination with the ATEN Modular Matrix Switch. The VM7104 supports RGBHV / RGBS/ Y CbCr/ YPbPr input signals; stereo audio that can be embedded into HDMI Audio output. The board is built with a hot-swappable design that is compatible with the VM1600, so that the unit doesn’t need to be powered off when the board is changed.
- Connects up to 4 VGA or Component inputs
- Supports RGBHV / RGBS/ YCbCr/ YPbPr input signals
- Hot-swappable design for easy integration of I/O boards
- Compatible with the VM1600 and can be mixed with any modular output boards for optimum flexibilit
- Connects up to 4 VGA or Component inputs
- Supports RGBHV / RGBS/ YCbCr/ YPbPr input signals
- Hot-swappable design for easy integration of I/O boards
- Compatible with the VM1600 and can be mixed with any modular output boards for optimum flexibilit
Key features
- Video port type: VGA
- VGA (D-Sub) ports quantity: 4
- Material: Metal
- Product colour: Black, Green
- Supported graphics resolutions: 1920 x 1200 (WUXGA)
- Bandwidth: 300 MHz
- Maximum resolution: 1920 x 1200 pixels
- Power consumption (typical): 7.1 W
- Width: 328 mm
- Height: 228 mm
- Weight: 560 g
- Length: 352 mm
- Manual: Yes
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Specifications
Power
| Power consumption (typical) | 7.1 W |
|---|
Features
| Material | Metal |
|---|---|
| Product colour | Black, Green |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Bandwidth | 300 MHz |
| Maximum resolution | 1920 x 1200 pixels |
Packaging content
| Manual | Yes |
|---|
Ports & interfaces
| Video port type | VGA |
|---|---|
| VGA (D-Sub) ports quantity | 4 |
Weight & dimensions
| Width | 328 mm |
|---|---|
| Height | 228 mm |
| Weight | 560 g |
| Length | 352 mm |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Questions
$3,154.44inc GST
