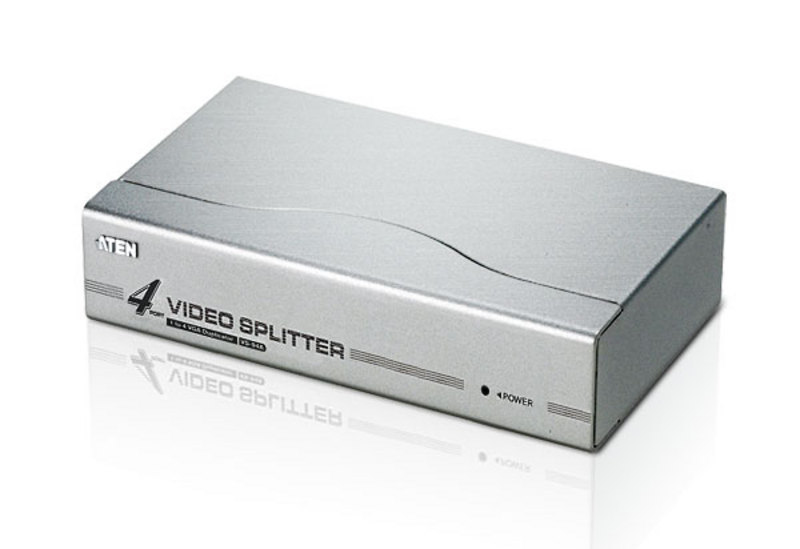

ATEN 4 PORT VGA SPLITTER
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VS94A-AT-U
- MPN: VS94A-AT-U
Overview
The VS94A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to four outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 64 displays, and offering bandwidth up to 350 MHz, the VS94A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.
Features:
* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.
Package Contents
1x 4-Port Video Splitter
1x Power Adapter
1x User Instructions
Features:
* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.
Package Contents
1x 4-Port Video Splitter
1x Power Adapter
1x User Instructions
Key features
- Video port type: VGA
- Video out: 4x VGA
- Video ports quantity: 4
- DC-in jack: Yes
- Maximum resolution: 1920 x 1400 pixels
- Maximum operating distance: 30 m
- Bandwidth: 350 MHz
- Rack mounting: Yes
- Windows operating systems supported: Yes
- Mac operating systems supported: Yes
- AC input voltage: 9 V
- Power consumption (typical): 2.03 W
- Width: 200 mm
- Depth: 75.1 mm
- Height: 44 mm
- Weight: 1.61 kg
- AC adapter included: Yes
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Specifications
Power
| AC input voltage | 9 V |
|---|---|
| Power consumption (typical) | 2.03 W |
Features
| Maximum resolution | 1920 x 1400 pixels |
|---|---|
| Maximum operating distance | 30 m |
| Bandwidth | 350 MHz |
| Rack mounting | Yes |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Packaging content
| AC adapter included | Yes |
|---|
Ports & interfaces
| Video port type | VGA |
|---|---|
| Video out | 4x VGA |
| Video ports quantity | 4 |
| DC-in jack | Yes |
Weight & dimensions
| Width | 200 mm |
|---|---|
| Depth | 75.1 mm |
| Height | 44 mm |
| Weight | 1.61 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Questions
$101.19inc GST
