ATEN 8 DIGITAL I/O EXPANSION BOX

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VK258-AT
  • MPN: VK258-AT
ATEN

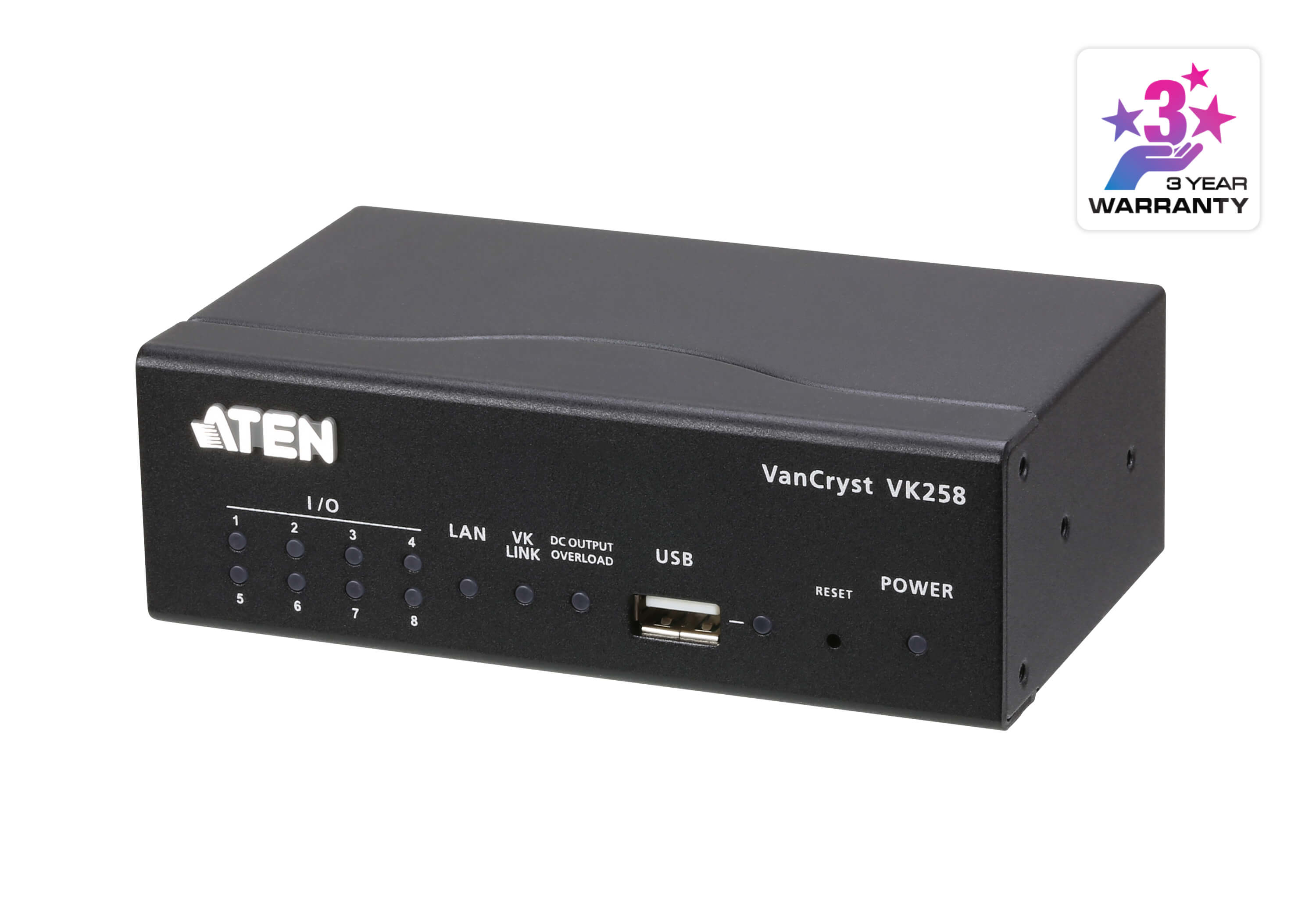

ATEN 8-Channel Digital I/O Expansion Box

SKU
CNZ-DD-044659
MPN
VK258-AT
−25%
ATEN 8 DIGITAL I/O EXPANSION BOX — ATEN

Overview

The VK258 8-Channel Digital I/O Expansion Box provides an additional eight channels of digital input/output for a flexible expansion of the ATEN Control System. This allows users to control more digital I/O devices, such as various sensors, dry contact devices, PCs, and motor-driven devices in environments where more devices need to be centrally controlled. With the advantage of the Ethernet-based connection, the expansion box easily connects to the ATEN Controller via a LAN connection from different locations across a network.
1x VK258 8-Channel Digital I/O Expansion Box
1x Rack Mount Kit
9xTerminal Blocks
1x User Instructions

Key features

  • Module type: Digital
  • Signal direction: Input/output
  • Channels quantity: 8 channels
  • Digital input channels quantity: 8 channels
  • Digital output channels quantity: 8 channels
  • Ethernet LAN (RJ-45) ports: 1
  • Supported network protocols: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
  • Nominal output voltage: 12 V
  • Input impedance: 0.3 Ω
  • Product colour: Black
  • Power consumption: 300 mA
  • Power consumption note: DC5V:2.2W:36BTU, POE:2.75W:39BTU
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Relative humidity: 0 - 80%
  • Width: 75.8 mm
  • Depth: 130 mm
  • Height: 42 mm
  • Weight: 550 g
  • Package width: 59 mm
  • Package depth: 239 mm
  • Package height: 160 mm
  • Package weight: 708 g
  • Products per master (outer) case: 5 pc(s)

Specifications

Power

Power consumption300 mA
Power consumption noteDC5V:2.2W:36BTU, POE:2.75W:39BTU

Features

Module typeDigital
Signal directionInput/output
Channels quantity8 channels
Digital input channels quantity8 channels
Digital output channels quantity8 channels
Ethernet LAN (RJ-45) ports1
Supported network protocolsARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
Nominal output voltage12 V
Input impedance0.3 Ω
Product colourBlack

Logistics data

Products per master (outer) case5 pc(s)
Master (outer) case width250 mm
Master (outer) case length325 mm
Master (outer) case height175 mm
Master (outer) case gross weight3.89 kg
Master (outer) case net weight2.75 kg

Weight & dimensions

Width75.8 mm
Depth130 mm
Height42 mm
Weight550 g
Package width59 mm
Package depth239 mm
Package height160 mm
Package weight708 g

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Relative humidity0 - 80%

Questions

$994.74inc GST
