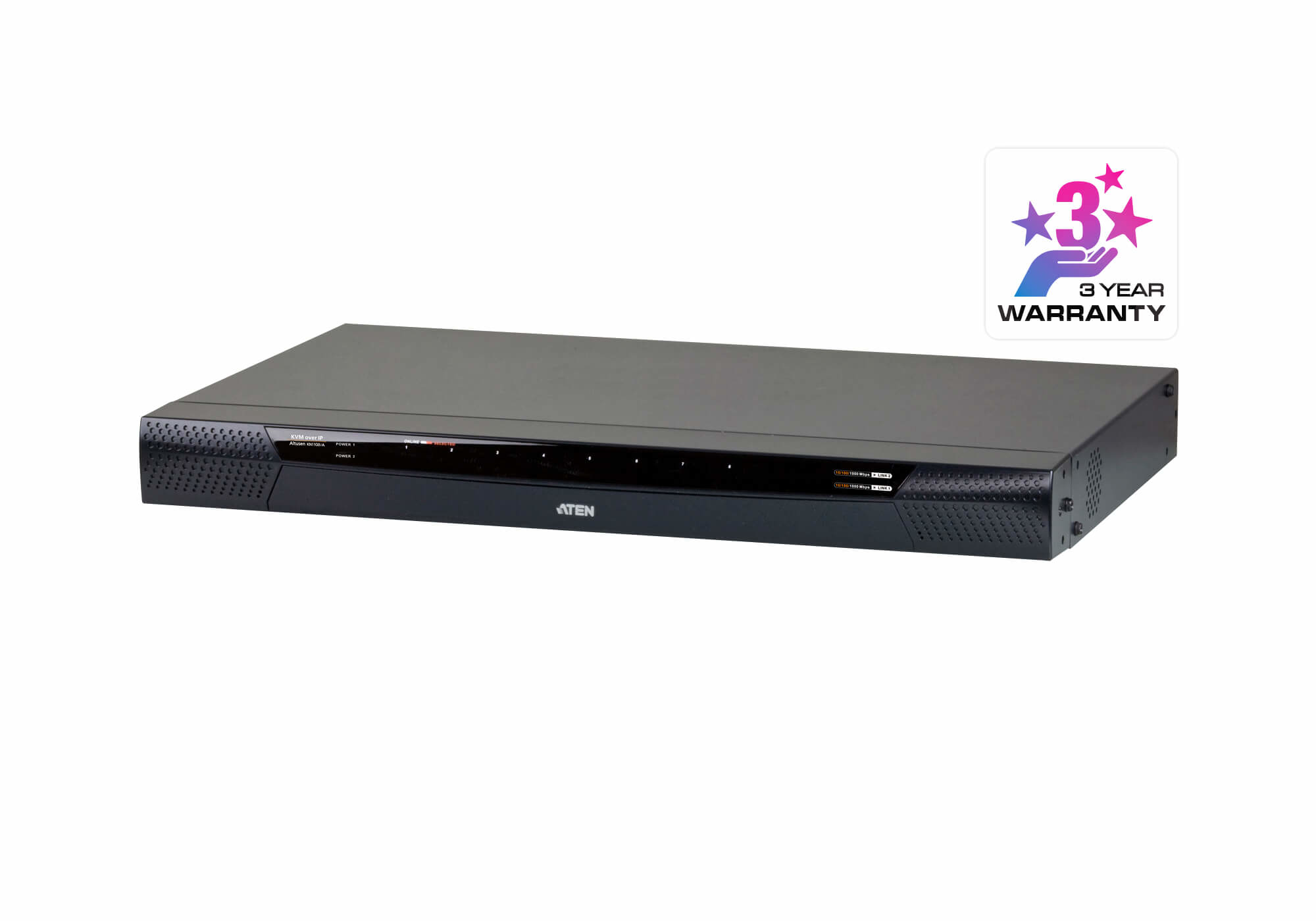

ATEN 8-Port 2-Bus CAT5e/6 KVM Over IP Switch, LUC (Laptop USB…

SKU: CNZ-DD-030646
MPN: KN1108VA-AX-U
Rating: No reviews yet

Overview

Aten's new generation of KVM over IP switches – KN series allows local console access and remote over IP access for operators to monitor and access their entire data center over a network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.
1x KN1108VA KVM over IP Switch
2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
2x LIN2-418K-E12G Power Cords
1x LIN6-04U1-M18G Laptop USB Console Cable
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions

Key features

Number of computers controlled: 8
Keyboard port type: USB, PS/2
Mouse port type: USB, PS/2
Video port type: VGA
Console ports: USB A, Mini-DIN
Console USB ports quantity: 2
USB hub: Yes
USB 2.0 Type-A hub ports quantity: 3
USB connector type: Mini-USB B, USB Type-A
PS/2 ports quantity: 2
Serial port type: RJ-45
Serial ports quantity: 2
Audio connections: Yes
Headphone outputs: 1
Number of microphone inputs: 1
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 14
Cabling technology: 10/100/1000Base-T(X)
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Security algorithms: 802.1x RADIUS, FIPS 140-2, RSA, SSL/TLS
Maximum resolution: 1920 x 1200 pixels
Scan interval: 1,255 s
Number of users: 64 user(s)
Firmware upgradeable: Yes

Specifications

Power

Power source	AC
Input voltage	100 - 240 V
AC input frequency	50 / 60 Hz
Input current	1 A

Design

Rack mounting	No
Rack capacity	1U
Product colour	Black
Housing material	Metal
Wired remote switch	Yes
Cascadable	Yes
LED indicators	Yes
Push button	Yes
Hot keys	Yes

Display

Built-in display	No

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	14
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Security algorithms	802.1x RADIUS, FIPS 140-2, RSA, SSL/TLS

Performance

Maximum resolution	1920 x 1200 pixels
Scan interval	1,255 s
Number of users	64 user(s)
Firmware upgradeable	Yes

Logistics data

Master (outer) case net weight	4.37 kg
Harmonized System (HS) code	85176200
Master (outer) case width	338 mm
Master (outer) case length	515 mm
Master (outer) case height	155 mm
Master (outer) case gross weight	5.58 kg
Products per master (outer) case	1 pc(s)

Packaging data

Package width	338 mm
Package depth	515 mm
Package height	155 mm
Package weight	5.58 kg

Sustainability

Compliance certificates	RoHS

Packaging content

Cables included	AC
Manual	Yes
Rack mount kit	Yes

Ports & interfaces

Number of computers controlled	8
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Console ports	USB A, Mini-DIN
Console USB ports quantity	2
USB hub	Yes
USB 2.0 Type-A hub ports quantity	3
USB connector type	Mini-USB B, USB Type-A
PS/2 ports quantity	2
Serial port type	RJ-45
Serial ports quantity	2
Audio connections	Yes
Headphone outputs	1
Number of microphone inputs	1

System requirements

Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Width	438.4 mm
Depth	287.8 mm
Height	44 mm
Weight	4.37 kg

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Questions

$5,011.69inc GST
