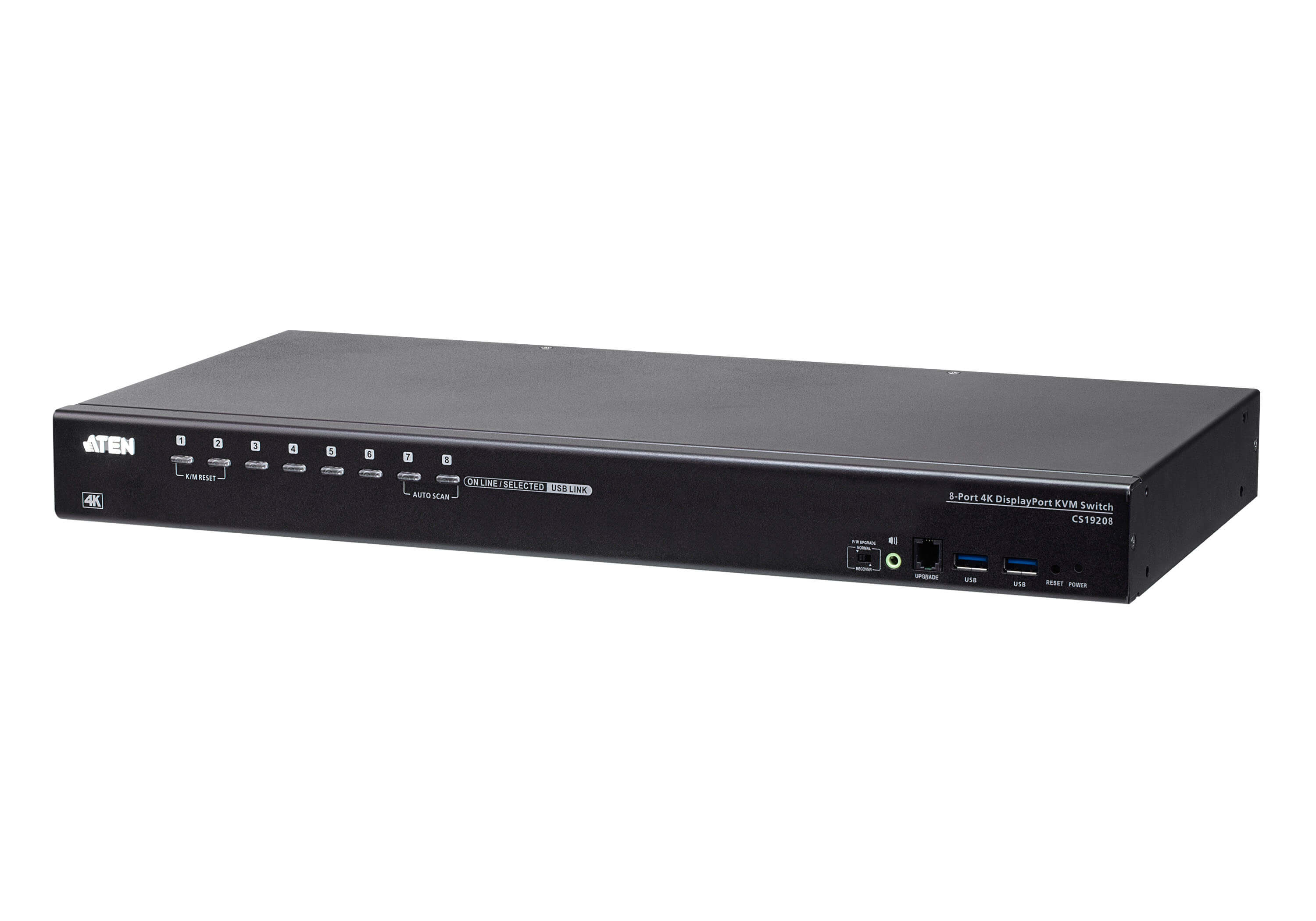

ATEN 8-PORT USB 3.0 4K DISPLAYPORT KVM SWITCH
Networking > Network Accessories
- Brand: ATEN
- Category: Switches
- SKU: CS19208-AT-U
- MPN: CS19208-AT-U
Overview
The ATEN CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch can effectively access and control up to 8 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.
1x CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting Kit
2x LIN5-20K1-K13G DisplayPort 1.4 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cables
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x 0X02-0017-000G Foot Pad Set (4 pcs)
1x 0AD8-8012-33MG + LIN2-418K-E12G Power Adapter
1x User Instructions
1x CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting Kit
2x LIN5-20K1-K13G DisplayPort 1.4 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cables
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x 0X02-0017-000G Foot Pad Set (4 pcs)
1x 0AD8-8012-33MG + LIN2-418K-E12G Power Adapter
1x User Instructions
Key features
- Number of computers controlled: 8
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DisplayPort
- DisplayPorts quantity: 8
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 8
- Console ports: 3.5mm headphone, DisplayPort, HDMI, USB A
- Console USB ports quantity: 2
- USB hub: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
- USB connector type: USB Type-A, USB Type-B
- Audio connections: Yes
- Headphone outputs: 9
- Number of microphone inputs: 1
- DC-in jack: Yes
- HD type: 4K Ultra HD
- Maximum resolution: 4096 x 2160 pixels
- Video bandwidth: 60 Hz
- Scan interval: 1,5,255 s
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Push button: Yes
- Hot keys: Yes
Specifications
Power
| Input voltage | 12 V |
|---|---|
| Power consumption (typical) | 18.44 W |
Design
| Product colour | Black |
|---|---|
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Built-in display | No |
|---|
Performance
| HD type | 4K Ultra HD |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,255 s |
Logistics data
| Master (outer) case net weight | 11.2 kg |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 427 mm |
| Master (outer) case length | 519 mm |
| Master (outer) case height | 348 mm |
| Master (outer) case gross weight | 15.6 kg |
| Products per master (outer) case | 3 pc(s) |
Packaging data
| Package width | 133 mm |
|---|---|
| Package depth | 499 mm |
| Package height | 324 mm |
| Package weight | 4.83 kg |
Packaging content
| Quick installation guide | Yes |
|---|---|
| Manual | Yes |
Ports & interfaces
| Number of computers controlled | 8 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 8 |
| Console ports | 3.5mm headphone, DisplayPort, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 9 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
Weight & dimensions
| Width | 432.4 mm |
|---|---|
| Depth | 214.3 mm |
| Height | 44 mm |
| Weight | 3.75 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Questions
$3,037.14inc GST
