ATEN 8 PORT USB DVI DUAL LINK KVM SWITCH
Networking > Network Accessories
- Brand: ATEN
- Category: Switches
- SKU: CS1788-AT-U
- MPN: CS1788-AT-U
Overview

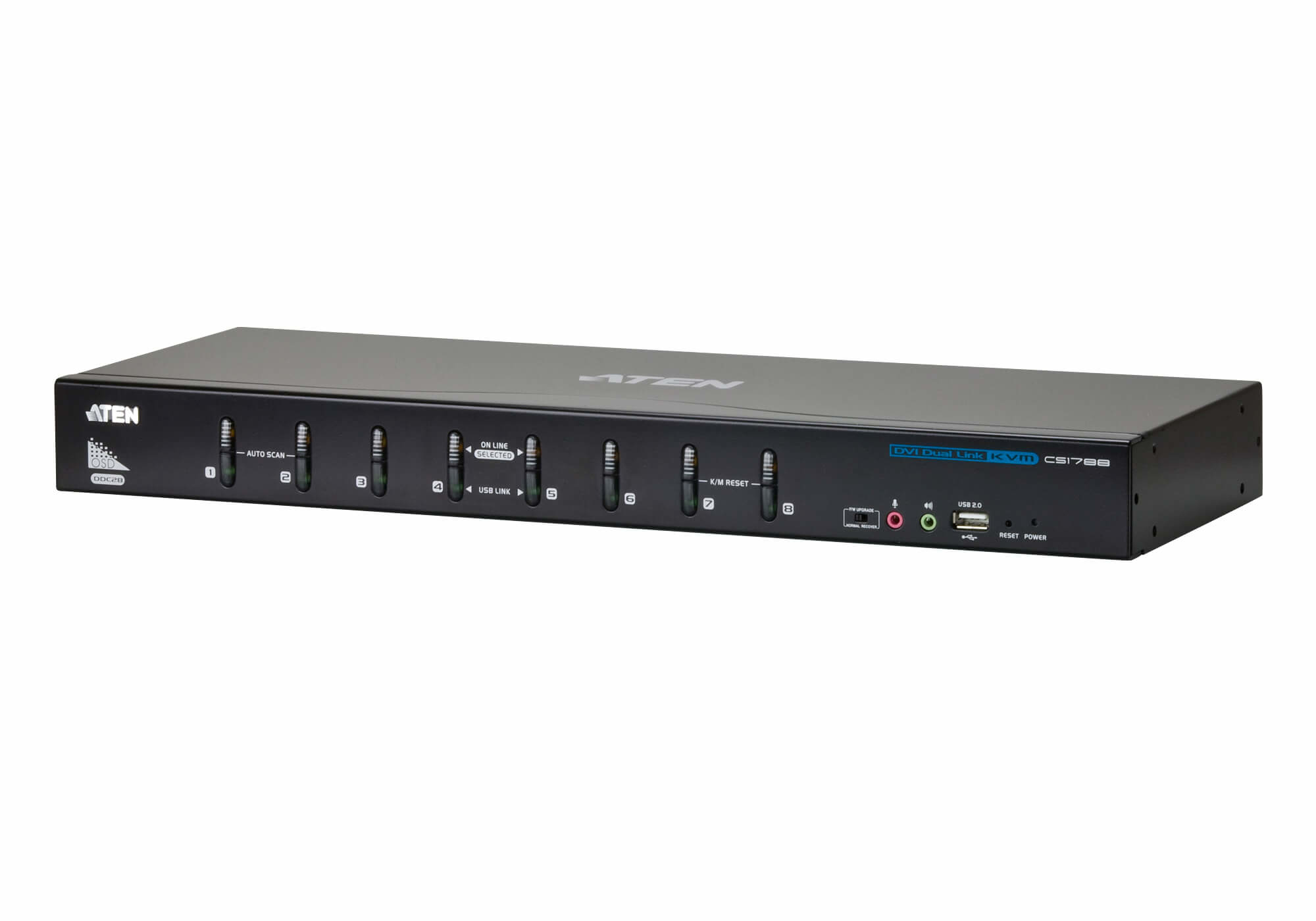

The CS1788 8-Port USB DVI Dual Link KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console.
It can be cascaded to three levels – allowing up to 73 CS1788s to control up to 512 computers – all from the original single console, making it ideal for IT applications and management.
In addition, the CS1788 features multi-display functionality, which enables the use of standard USB cables to stack up to four switches for quad-displaying in multiple-monitor installations where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment.
1x CS1788 8-Port USB DVI KVM Switch with Rack Mounting Kit
2x 2L-7D02UD USB DVI-D Dual Link KVM Cable Sets
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x 0AD8-8605-40MG Power Adapter
1x Foot Pad Set (4 pcs)
1x User Instructions
It can be cascaded to three levels – allowing up to 73 CS1788s to control up to 512 computers – all from the original single console, making it ideal for IT applications and management.
In addition, the CS1788 features multi-display functionality, which enables the use of standard USB cables to stack up to four switches for quad-displaying in multiple-monitor installations where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment.
1x CS1788 8-Port USB DVI KVM Switch with Rack Mounting Kit
2x 2L-7D02UD USB DVI-D Dual Link KVM Cable Sets
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x 0AD8-8605-40MG Power Adapter
1x Foot Pad Set (4 pcs)
1x User Instructions
Key features
- Number of computers controlled: 8
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DVI-I
- DVI-I ports quantity: 8
- USB 2.0 Type-B ports quantity: 8
- Console ports: 3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub)
- Console USB ports quantity: 2
- USB hub: Yes
- USB 2.0 Type-A hub ports quantity: 2
- USB connector type: USB Type-A, USB Type-B
- Audio connections: Yes
- Headphone outputs: 10
- Number of microphone inputs: 10
- DC-in jack: Yes
- HD type: WQXGA
- Maximum resolution: 2560 x 1600 pixels
- Video bandwidth: 60 Hz
- Scan interval: 1,5,255 s
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Push button: Yes
- Built-in display: No
Specifications
Power
| Power source | DC |
|---|---|
| Input voltage | 5.3 V |
| Power consumption (typical) | 8.26 W |
Design
| Product colour | Black |
|---|---|
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
Display
| Built-in display | No |
|---|
Performance
| HD type | WQXGA |
|---|---|
| Maximum resolution | 2560 x 1600 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,255 s |
Packaging data
| Package width | 131 mm |
|---|---|
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 4.48 kg |
Packaging content
| Quick installation guide | Yes |
|---|---|
| Manual | Yes |
Ports & interfaces
| Number of computers controlled | 8 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 8 |
| USB 2.0 Type-B ports quantity | 8 |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 10 |
| Number of microphone inputs | 10 |
| DC-in jack | Yes |
Weight & dimensions
| Width | 437.2 mm |
|---|---|
| Depth | 161.2 mm |
| Height | 44 mm |
| Weight | 3.96 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
