ATEN 8-Port USB - PS/2 VGA KVM Switch

SKU: CNZ-DD-012720
MPN: CS1308-AT-U
Rating: No reviews yet

Overview

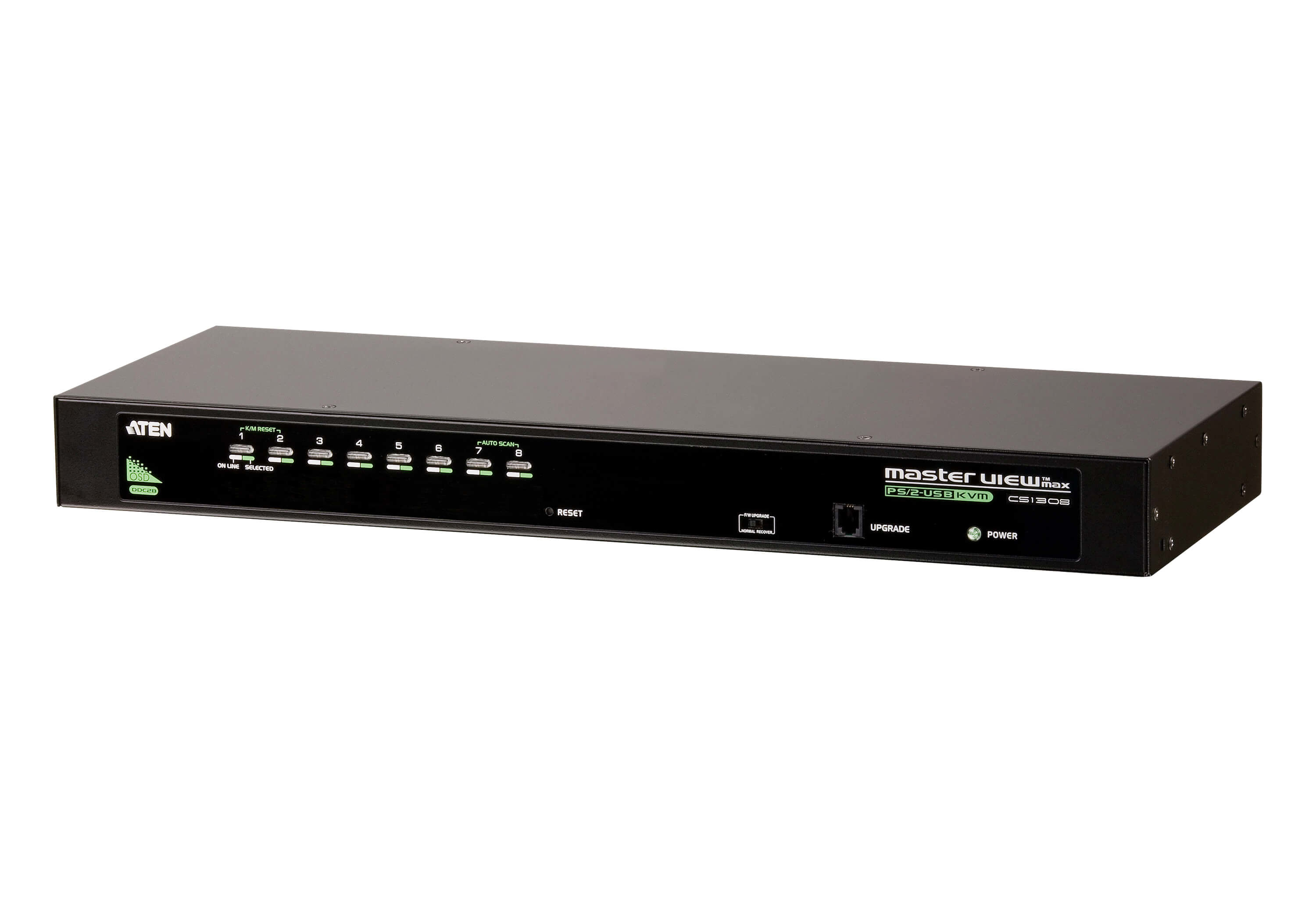

The CS1308 is a 8-Port USB-PS/2 KVM switch (Dual Interface). You're able to control up to 64 Computers from a single console (keyboard, mouse, and monitor).
8 additional switches can be cascaded (2-Level) that's why the total number of connected computers can be up to 64 computers, that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and Computer/PC/Server (Dual Interface.
1x CS1308 KVM Switch with Rack Mount Kit
1x LIN5-27X6-U21G Console cable
1x Firmware Upgrade cable
1x Foot Pad set (4 pads)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions

Key features

Number of computers controlled: 64
Keyboard port type: USB, PS/2
Mouse port type: USB, PS/2
Video port type: VGA
VGA (D-Sub) ports quantity: 8
Console ports: VGA (D-Sub)
DC-in jack: Yes
HD type: QXGA
Maximum resolution: 2048 x 1536 pixels
Scan interval: 1,255 s
DDC2B support: Yes
Firmware upgradeable: Yes
Rack mounting: Yes
Rack capacity: 1U
Product colour: Black
Housing material: Metal
Cascadable: Yes
Push button: Yes
Hot keys: Yes
Built-in display: No
Power source: DC
Input voltage: 5.3 V
Power consumption (typical): 5 W
Windows operating systems supported: Yes

Specifications

Power

Power source	DC
Input voltage	5.3 V
Power consumption (typical)	5 W

Design

Rack mounting	Yes
Rack capacity	1U
Product colour	Black
Housing material	Metal
Cascadable	Yes
Push button	Yes
Hot keys	Yes

Display

Built-in display	No

Performance

HD type	QXGA
Maximum resolution	2048 x 1536 pixels
Scan interval	1,255 s
DDC2B support	Yes
Firmware upgradeable	Yes

Logistics data

Master (outer) case net weight	6.72 kg
Harmonized System (HS) code	85176200
Master (outer) case width	375 mm
Master (outer) case length	565 mm
Master (outer) case height	258 mm
Master (outer) case gross weight	8.7 kg
Products per master (outer) case	3 pc(s)

Packaging data

Package width	116 mm
Package depth	540 mm
Package height	233 mm
Package weight	2.69 kg

Sustainability

Compliance certificates	RoHS

Packaging content

Quick installation guide	Yes
AC adapter included	Yes
Rack mount kit	Yes
Rubber feet	Yes

Ports & interfaces

Number of computers controlled	64
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
VGA (D-Sub) ports quantity	8
Console ports	VGA (D-Sub)
DC-in jack	Yes

System requirements

Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	Yes

Weight & dimensions

Width	161.3 mm
Depth	437.2 mm
Height	44 mm
Weight	1.89 kg

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
