ATEN 8X8 HDMI MATRIX WITH SCALER
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VM5808H-AT-U
- MPN: VM5808H-AT-U
−14%
Overview

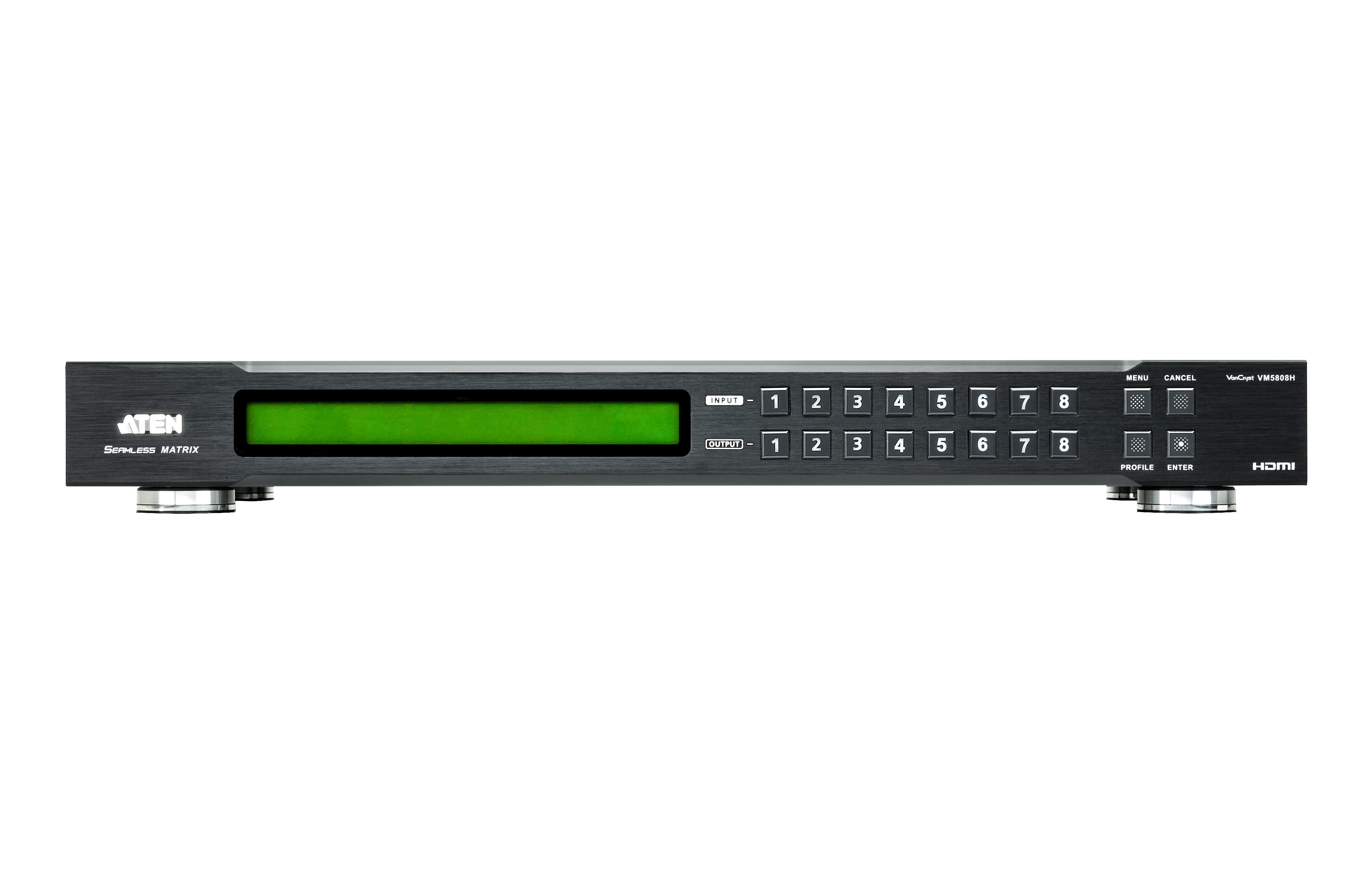

The VM5808H 8 x 8 HDMI Matrix Switch is a distinct HDMI solution that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays, with a quick view of all port connections via the front panel LCD.
The VM5808H includes seamless switching that employs a FPGA matrix architecture that ensures continuous video streams, real-time control and stable signal transmissions. With a built in high-performance scaler, the VM5808H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy to use web GUI that lets you create 16 connection profiles that can be customized into different video wall layouts.
The VM5808H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup in multiple locations, such as for stage presentations, competitions, control centers, and installations that require real-time reports.
The VM5808H includes seamless switching that employs a FPGA matrix architecture that ensures continuous video streams, real-time control and stable signal transmissions. With a built in high-performance scaler, the VM5808H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy to use web GUI that lets you create 16 connection profiles that can be customized into different video wall layouts.
The VM5808H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup in multiple locations, such as for stage presentations, competitions, control centers, and installations that require real-time reports.
Key features
- Video port type: HDMI
- HDMI ports quantity: 16
- HDMI in: 8
- Number of HDMI outputs: 8
- RJ-45 input ports: 1
- RS-232 ports: 1
- Material: Metal
- Product colour: Black
- HDCP: Yes
- Supported video modes: 1080p
- AC input voltage: 100 - 240 V
- AC adapter frequency: 50/60 Hz
- Power consumption (typical): 62 W
- Width: 262.3 mm
- Depth: 432.4 mm
- Height: 44 mm
- Weight: 4.16 kg
- Quantity per pack: 1 pc(s)
- Manual: Yes
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Specifications
Power
| AC input voltage | 100 - 240 V |
|---|---|
| AC adapter frequency | 50/60 Hz |
| Power consumption (typical) | 62 W |
Features
| Material | Metal |
|---|---|
| Product colour | Black |
| HDCP | Yes |
| Supported video modes | 1080p |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|---|
| Manual | Yes |
Ports & interfaces
| Video port type | HDMI |
|---|---|
| HDMI ports quantity | 16 |
| HDMI in | 8 |
| Number of HDMI outputs | 8 |
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
Weight & dimensions
| Width | 262.3 mm |
|---|---|
| Depth | 432.4 mm |
| Height | 44 mm |
| Weight | 4.16 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
