ATEN CONTROL SYSTEM CONTROL BOX GEN. 2 WITH 2 LICENSE KEYS

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VK2100A-AT-U
  • MPN: VK2100A-AT-U
ATEN

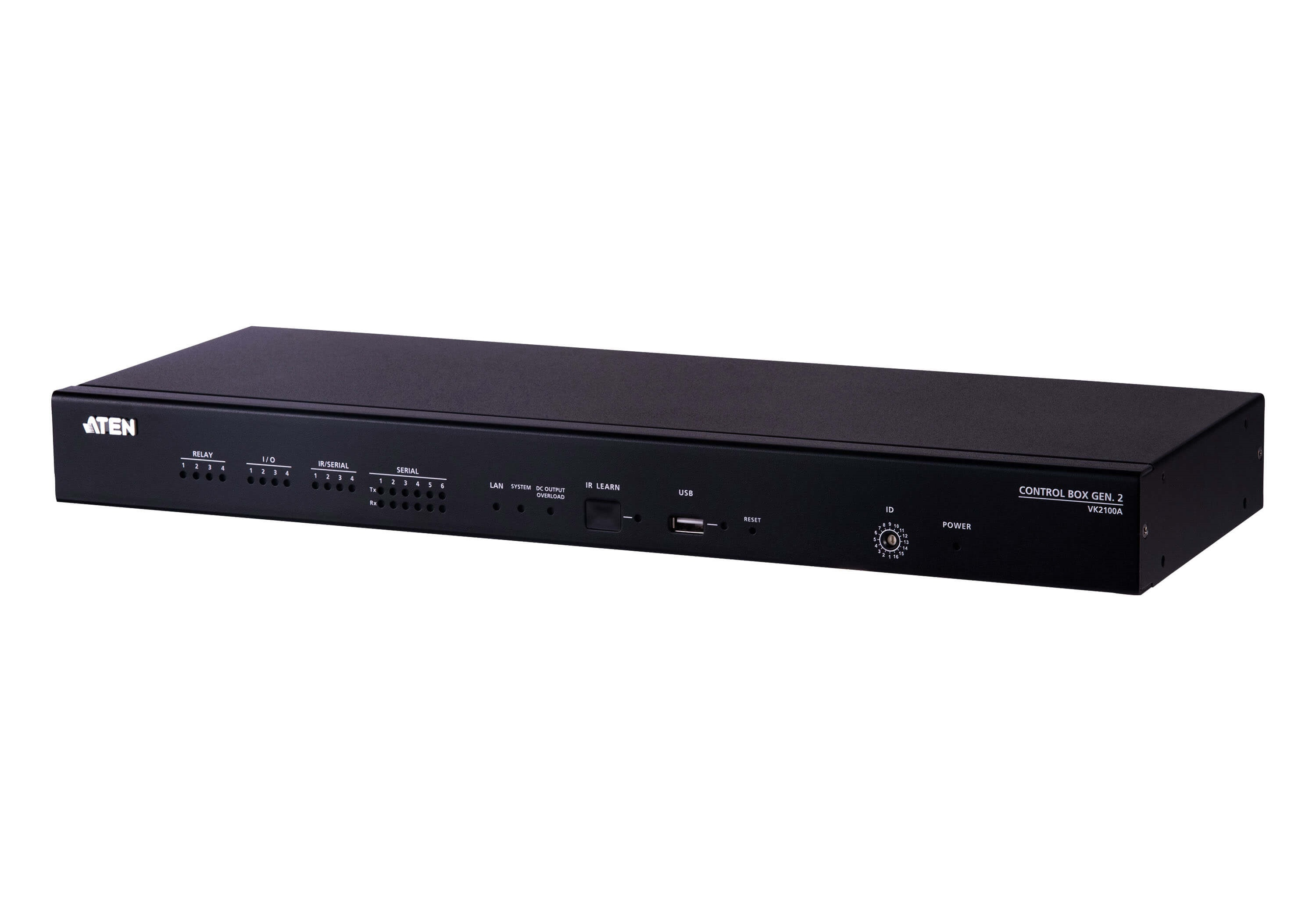

ATEN VK2100A

Our SKU
MPN

Overview

VK2100A ATEN’s 2nd-generation Control Box equipped with a quad-core CPU, Gbps LAN, and 1GB memory size, provides real-time response and status updates and can process complex, high-loading events with customized GUI designs, as well as multiuser access control to connected devices. Its LAN can be connected to ATEN Unizon™, a centralized management platform streamlining daily AV / IT management that provides users with the convenience to monitor, troubleshoot, and maintain multiple systems all at once.

The VK2100A Control Box is designed to easily manage any room setting, and can be deployed into an existing installation environment seamlessly not only with ATEN products, but also nearly any hardware or software device found in a room, including AV equipment, lighting, conference systems, air conditioning, motion sensors, power switches, and many more. VK2100A is the perfect solution for managing mass device deployments such as government agencies, military facilities, corporate organizations, and healthcare institutions.

VK2100A is a part of ATEN’s Control System Series, a standard Ethernet-based management system, which consists of hardware, configurator software, control interfaces, and related services, to control any hardware and software devices within a room setting, such as boardrooms and lecture halls, and to provide direct, centralized management effortlessly via user-defi ned GUIs from any mobile device, ATEN Keypad, and Touch Panel.

Key features

  • Processor cores: 4
  • Product colour: Black
  • Housing material: Metal
  • On/off switch: Yes
  • LED indicators: Yes
  • Reset button: Yes
  • Built-in display: No
  • Heat dissipation: 143 BTU/h
  • Number of relay pins: 8
  • Internal memory: 1 GB
  • Internal memory type: SDRAM
  • Internal storage capacity: 8 GB
  • Storage media type: Flash
  • Ethernet LAN (RJ-45) ports: 1
  • Ethernet interface type: Gigabit Ethernet
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • Cabling technology: 10/100/1000Base-T(X)
  • Supported network protocols: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
  • USB port: Yes
  • USB ports quantity: 1
  • USB port type: USB Type-A
  • Number of analog I/O pins: 5
  • IR connectivity: Yes
  • DC-in jack: Yes

Specifications

Power

Power consumption (max)6.5 W
Power consumption (typical)5.2 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power supply locationInternal

Memory

Internal memory1 GB
Internal memory typeSDRAM
Internal storage capacity8 GB
Storage media typeFlash

Network

Ethernet LAN (RJ-45) ports1
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000Base-T(X)
Supported network protocolsARP, ICMP, TCP/IP, DHCP, HTTPS, SSH

Features

Processor cores4
Product colourBlack
Housing materialMetal
On/off switchYes
LED indicatorsYes
Reset buttonYes
Built-in displayNo
Heat dissipation143 BTU/h
Number of relay pins8

Packaging data

Package width131 mm
Package depth540 mm
Package height233 mm
Package weight3.51 kg
Package typeBox

Packaging content

Terminal block includedYes
License quantity2 license(s)
ManualYes
Power cord includedYes

Ports & interfaces

USB portYes
USB ports quantity1
USB port typeUSB Type-A
Number of analog I/O pins5
IR connectivityYes
DC-in jackYes
Serial interface typeRS-232, RS-232/422/485

Weight & dimensions

Width163.2 mm
Depth432.4 mm
Height44 mm
Weight2.59 kg

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Questions

$3,182.04inc GST
