ATEN DANTE AUDIO INTERFACE
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VE66DTH-AT-U
- MPN: VE66DTH-AT-U
−11%
Overview

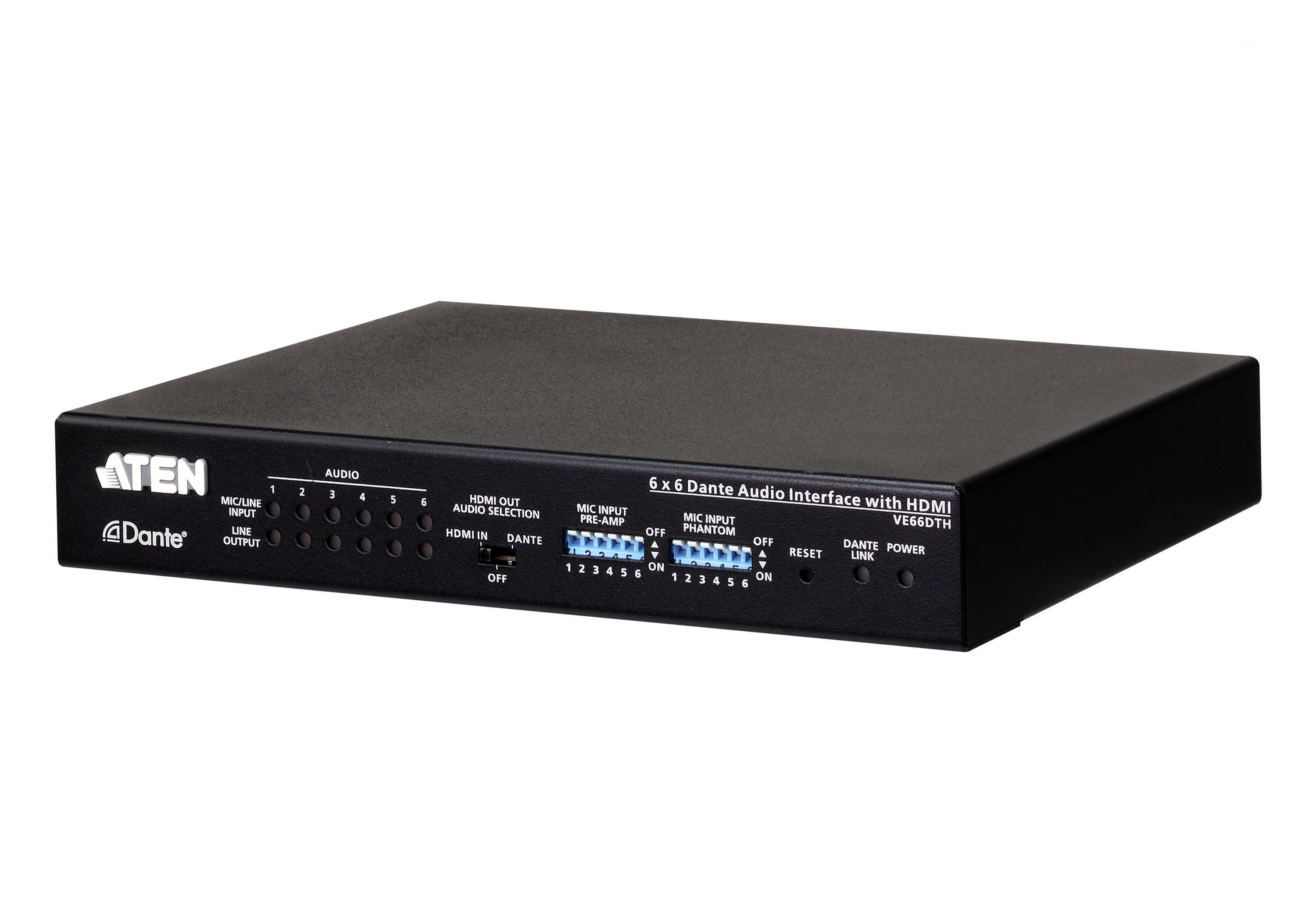

ATEN VE66DTH is a Dante-enabled six−input/six−output Audio Interface with HDMI. Using Dante™ – the most popular audio networking solution created by Audinate, the VE66DTH is capable of delivering uncompressed, close-to-zero latency digital audio signals across your standard IP network. The VE66DTH transmits and receives up to 6-channel of audio inputs and outputs via a Dante network – the audio inputs can support not only the line input but also the dynamic and condenser microphones at the same time. Additionally, the device can also provide condenser microphones with 48V Phantom power supply. With its built-in PoE (Power over Ethernet), the VE66DTH can be powered by a compatible PSE device through Ethernet cable. Moreover, the VE66DTH provides flexible audio capability with audio de-embedding and embedding. It can de-embed HDMI stereo audio signals to the Dante networking system and embed Dante audio signals into the HDMI output.
1x VE66DTH 6 x 6 Dante Audio Interface with HDMI
6x 5-Pole Terminal Blocks
4x Foot Pads
1x KC06-0040-100G Mounting Kit
1x 0AD8-1F05-30M1 Power Adapter
1x User Instructions
1x VE66DTH 6 x 6 Dante Audio Interface with HDMI
6x 5-Pole Terminal Blocks
4x Foot Pads
1x KC06-0040-100G Mounting Kit
1x 0AD8-1F05-30M1 Power Adapter
1x User Instructions
Key features
- HDMI in: 1
- DC-in jack: Yes
- Number of HDMI outputs: 1
- Maximum transfer distance: 1.8 m
- Product colour: Black
- Maximum resolution: 4096 x 2160 pixels
- Housing material: Metal
- Operating voltage: 5 V
- External power adapter: Yes
- Power consumption (typical): 8.9 W
- Width: 174.2 mm
- Depth: 154.9 mm
- Height: 28.8 mm
- Weight: 1.1 kg
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
- Quantity: 1
Specifications
Power
| Operating voltage | 5 V |
|---|---|
| External power adapter | Yes |
| Power consumption (typical) | 8.9 W |
Inputs
| HDMI in | 1 |
|---|---|
| DC-in jack | Yes |
Outputs
| Number of HDMI outputs | 1 |
|---|
Packaging data
| Quantity | 1 |
|---|
Technical details
| Maximum transfer distance | 1.8 m |
|---|---|
| Product colour | Black |
| Maximum resolution | 4096 x 2160 pixels |
| Housing material | Metal |
Weight & dimensions
| Width | 174.2 mm |
|---|---|
| Depth | 154.9 mm |
| Height | 28.8 mm |
| Weight | 1.1 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
