ATEN DP HDBASET-LITE EXTENDER
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VE901-AT-U
- MPN: VE901-AT-U
ATEN

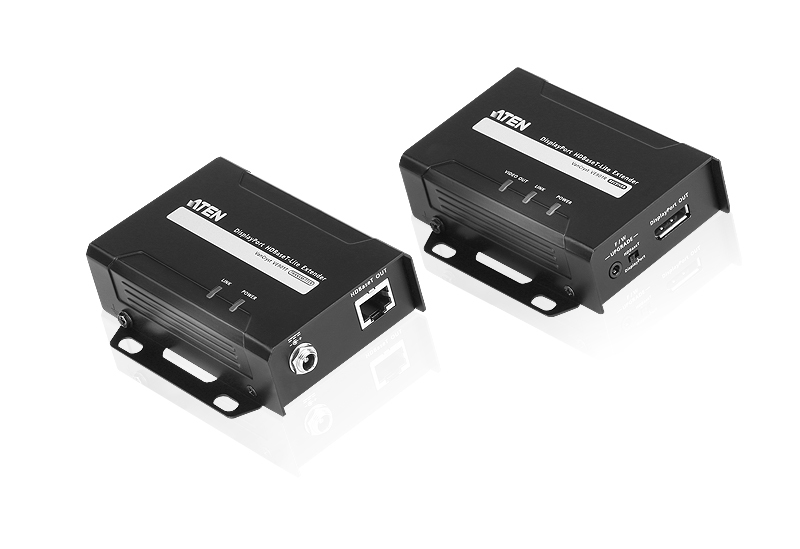

ATEN DisplayPort HDBaseT-Lite Extender 4K/40m;1080p/70m
- SKU
- CNZ-DD-044617
- MPN
- VE901-AT-U
- Rating
- No reviews yet
−12%
Overview
The VE901 DisplayPort HDBaseT-Lite Extender is able to extend a DisplayPort display up to 70 m using a Cat 6/6a/ATEN 2L-2910 Cat 6 cable. This combination of ATEN and HDBaseT™ technology supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
1x VE901T DisplayPort HDBaseT-Lite Transmitter
1x VE901R DisplayPort HDBaseT-Lite Receiver
2x 0AD8-1F05-26M1 Power Adapters
1x User Instructions
1x VE901T DisplayPort HDBaseT-Lite Transmitter
1x VE901R DisplayPort HDBaseT-Lite Receiver
2x 0AD8-1F05-26M1 Power Adapters
1x User Instructions
Key features
- Type: AV transmitter & receiver
- Maximum resolution: 4096 x 2160 pixels
- Cable types supported: Cat5e, Cat6, Cat6a
- Maximum transfer distance: 70 m
- LED indicators: Yes
- Supported video modes: 1080p
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- Bandwidth: 10.2 Gbit/s
- Bandwidth: 297 MHz
- HDCP: Yes
- Material: Metal
- Rack mounting: Yes
- Plug and Play: Yes
- Impedance: 100 Ω
- HDCP version: 1.4
- Product colour: Black
- HDBaseT certified: Yes
- Connectivity technology: Wired
- RJ-45 input ports: 1
- RJ-45 output ports: 1
- HDBaseT port: Yes
- DisplayPorts in: 1
- DisplayPorts out: 1
- DC-in jack: Yes
Specifications
Power
| Operating voltage (transmitter) | 5 V |
|---|---|
| Operating voltage (receiver) | 5 V |
| Power consumption (TX) | 2.84 W |
| Power consumption (RX) | 5.72 W |
Features
| Type | AV transmitter & receiver |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 70 m |
| LED indicators | Yes |
| Supported video modes | 1080p |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Bandwidth | 297 MHz |
| HDCP | Yes |
| Material | Metal |
| Rack mounting | Yes |
| Plug and Play | Yes |
| Impedance | 100 Ω |
| HDCP version | 1.4 |
| Product colour | Black |
| HDBaseT certified | Yes |
Logistics data
| Master (outer) case width | 250 mm |
|---|---|
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 4.85 kg |
| Master (outer) case net weight | 3.75 kg |
| Products per master (outer) case | 5 pc(s) |
Packaging data
| Package width | 59 mm |
|---|---|
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 855 g |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| DC-in jack | Yes |
Weight & dimensions
| Weight | 750 g |
|---|---|
| Receiver dimensions (WxDxH) | 94.2 x 66 x 29 mm |
| Receiver weight | 270 g |
| Transmitter dimensions (WxDxH) | 94.2 x 66 x 29 mm |
| Transmitter weight | 240 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Questions
$699.19inc GST
