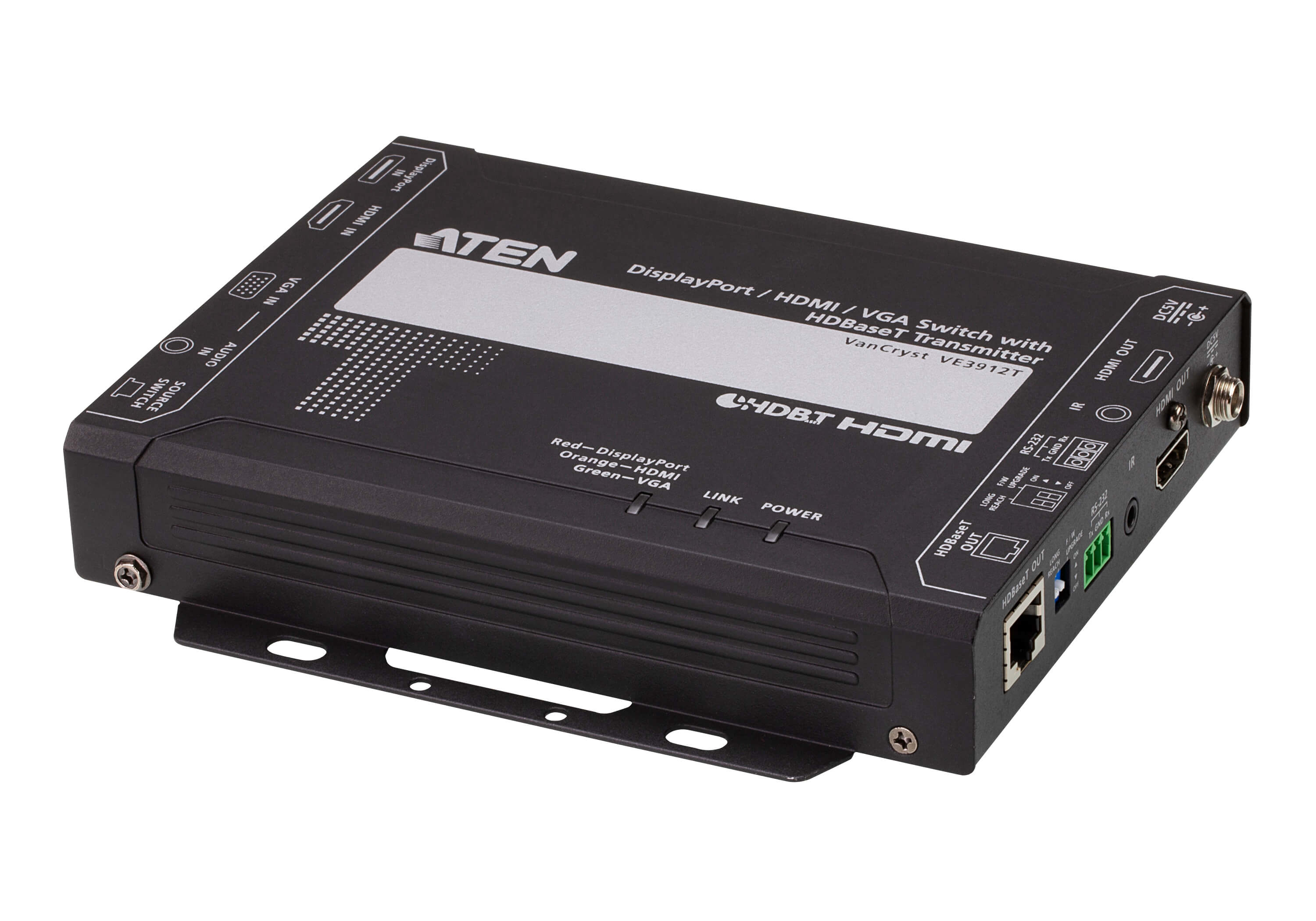

ATEN DP/HDMI/VGA SWITCH WITH HDBASET TRANSMITTER
Networking > Network Accessories
- Brand: ATEN
- Category: Switches
- SKU: VE3912T-AT-U
- MPN: VE3912T-AT-U
−14%
Overview
The ATEN VE3912T is an HDBaseT transmitter that extends 4K DisplayPort, HDMI, or VGA video signals up to 100 m over a single Cat 6/6a or ATEN 2L-2910 Cat 6 cable. Featuring multiple video input formats and output resolutions up to 4K, it ensures a superior video quality for applications that require digital/analog sources conversion and extension.
1x VE3912T DisplayPort / HDMI / VGA Switch with HDBaseT Transmitter
1x RS-232 Terminal Block
1x 0AD8-1F05-30M1 Power Adapter
4x Foot Pads
1x User Instructions
1x VE3912T DisplayPort / HDMI / VGA Switch with HDBaseT Transmitter
1x RS-232 Terminal Block
1x 0AD8-1F05-30M1 Power Adapter
4x Foot Pads
1x User Instructions
Key features
- Type: AV transmitter
- Maximum resolution: 4096 x 2160 pixels
- Maximum transfer distance: 100 m
- Supported video modes: 1080p, 2160p
- Supported graphics resolutions: 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 4096 x 2160
- Bandwidth: 10.2 Gbit/s
- Bandwidth: 340 MHz
- Power: 8.77 W
- On/off switch: Yes
- HDCP: Yes
- Material: Metal
- Control type: Buttons
- Consumer Electronics Control (CEC) support: Yes
- Impedance: 100 Ω
- HDCP version: 2.2
- Product colour: Black
- Connectivity technology: Wired
- Ethernet LAN: Yes
- RJ-45 input ports: 1
- VGA (D-Sub) input ports: 1
- HDMI in: 1
- Number of HDMI outputs: 1
- DisplayPorts in: 1
- RS-232 output ports: 1
Specifications
Power
| Power consumption (max) | 8.77 W |
|---|---|
| External power adapter | Yes |
Features
| Type | AV transmitter |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 100 m |
| Supported video modes | 1080p, 2160p |
| Supported graphics resolutions | 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 4096 x 2160 |
| Bandwidth | 340 MHz |
| Power | 8.77 W |
| On/off switch | Yes |
| HDCP | Yes |
| Material | Metal |
| Control type | Buttons |
| Consumer Electronics Control (CEC) support | Yes |
| Impedance | 100 Ω |
| HDCP version | 2.2 |
| Product colour | Black |
Packaging data
| Package width | 62 mm |
|---|---|
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.12 kg |
Packaging content
| AC adapter included | Yes |
|---|---|
| Quick start guide | Yes |
| Mounting brackets included | Yes |
Technical details
| Compliance certificates | RoHS |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| VGA (D-Sub) input ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DisplayPorts in | 1 |
| RS-232 output ports | 1 |
| Video in | 1 x HDMI Type A |
| Video out | 1 x HDMI Type A |
| VGA (D-Sub) ports quantity | 2 |
| Audio input | 1 x HDMI Type A |
| AUX in | Yes |
| DC-in jack | Yes |
Weight & dimensions
| Width | 147 mm |
|---|---|
| Depth | 173 mm |
| Height | 30 mm |
| Weight | 1.04 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
