ATEN DVI HDBASET MINI KVM EXTENDER Networking > Network Accessories
Brand: ATEN Category: Networking SKU: CE611-AT-U MPN: CE611-AT-U Home Networking ATEN ATEN ATEN Mini USB DVI HDBaseT KVM Extender
SKU CNZ-DD-011336
MPN CE611-AT-U Price inc GST $1,484.64
$1,290.99 ex GST · NZD
Saving $93.23 was $1,577.87
Order in from supplier · ETA on request Dispatches as soon as supplier stock lands
Sign in for trade pricing Tracked courier, NZ-wide. Rates calculated at checkout. Online only, no pick-up.GST tax invoice emailed the moment your order is paid.Genuine NZ warranty , serviced in New Zealand.Your Consumer Guarantees Act rights apply on top.

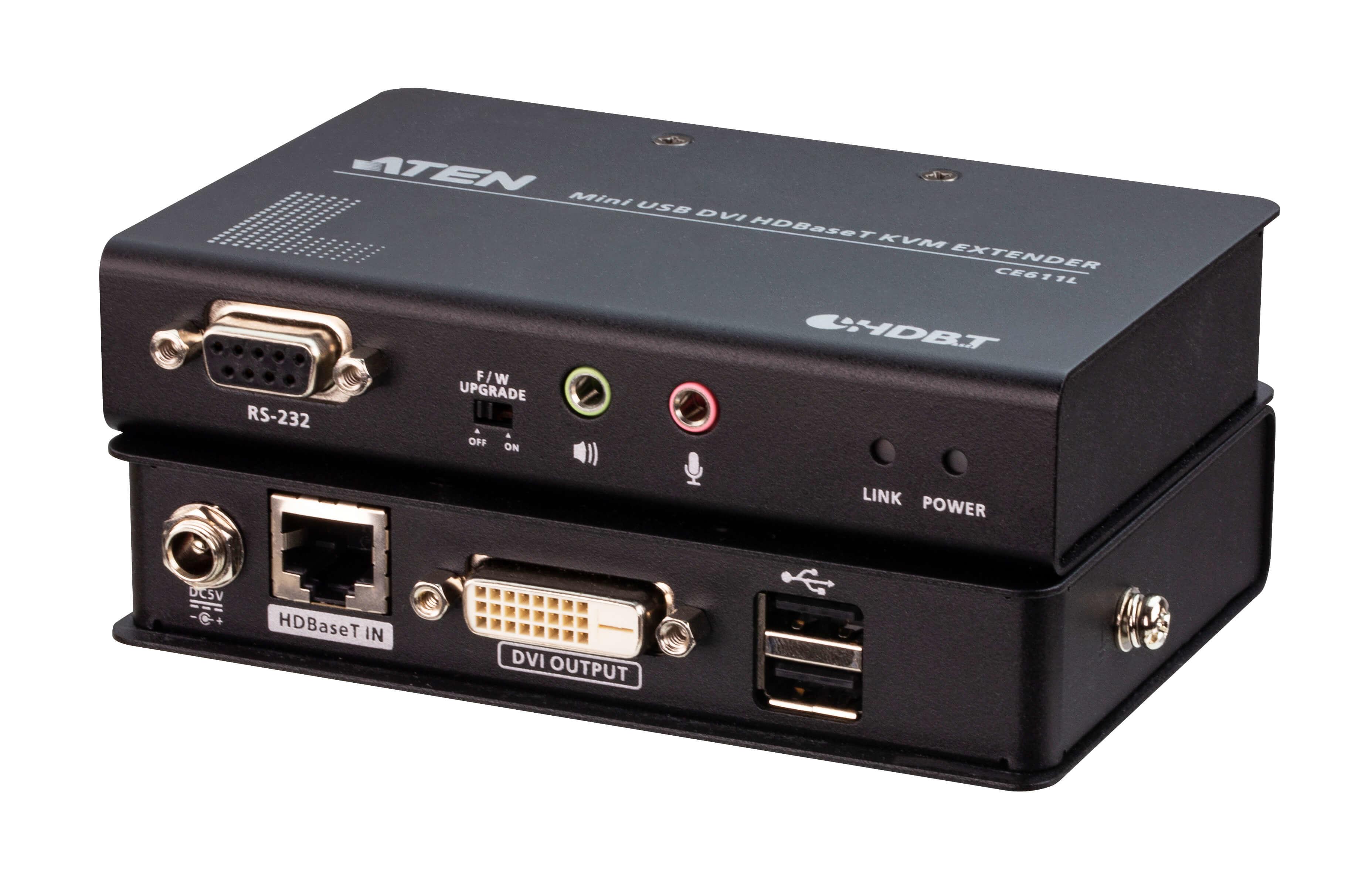

Overview Specifications Questions Overview The ATEN CE611 is a USB DVI HDBaseT™ KVM Extender that integrates the latest HDBaseT™ technologies to transmit 1920 x 1200 DVI video, stereo audio, USB, and RS-232 signals up to 100 meters using a single Cat6 / 6a cable / ATEN 2L-2910 Cat 6 cable. This cost-effective extender comes with a small form factor design that includes DVI/audio interfaces, USB 2.0 full-speed ports, and serial console to fulfill most of extended KVM control and console demands. With an easy cable installation that supports various signals, the CE611 is ideal for applications where convenient remote access is required, such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
Key features Type: Transmitter & receiver Connectivity technology: Wired Maximum transfer distance: 100 m Cable types supported: Cat6, Cat6a Maximum digital resolution: 1920 x 1200 pixels Supported resolutions: 1920x1200
1920x1080
1600x1200 Product colour: Black Material: Metal LED indicators: Yes Certification: RoHS Transmitter video port type: DVI-D Transmitter local keyboard/mouse port type: USB RJ-45 ports quantity (transmitter): 1 Receiver local video port type: DVI-D Receiver local keyboard/mouse port type: USB RJ-45 ports quantity (receiver): 1 USB 2.0 ports quantity: 2 USB data transfer rates: 480 Mbit/s RS-232 ports: 2 RJ-45 ports quantity: 2 PC Audio in: Yes PC Audio out: Yes Power consumption (transmitter) (max): 2.494 W Power consumption (receiver) (max): 4.816 W At a glance Power consumption (transmitter) (max) 2.494 W Power consumption (receiver) (max) 4.816 W Type Transmitter & receiver Connectivity technology Wired Maximum transfer distance 100 m Cable types supported Cat6, Cat6a Maximum digital resolution 1920 x 1200 pixels Supported resolutions 1920x1200
1920x1080
1600x1200
All 51 specifications Specifications Power Power consumption (transmitter) (max) 2.494 W Power consumption (receiver) (max) 4.816 W
Features Type Transmitter & receiver Connectivity technology Wired Maximum transfer distance 100 m Cable types supported Cat6, Cat6a Maximum digital resolution 1920 x 1200 pixels Supported resolutions 1920x1200
1920x1080
1600x1200 Product colour Black Material Metal LED indicators Yes Certification RoHS
Receiver Receiver local video port type DVI-D Receiver local keyboard/mouse port type USB RJ-45 ports quantity (receiver) 1
Transmitter Transmitter video port type DVI-D Transmitter local keyboard/mouse port type USB RJ-45 ports quantity (transmitter) 1
Logistics data Master (outer) case net weight 5.25 kg Harmonized System (HS) code 84733080 Master (outer) case width 292 mm Master (outer) case length 517 mm Master (outer) case height 194 mm Master (outer) case gross weight 6.32 kg Products per master (outer) case 5 pc(s)
Packaging data Package width 100 mm Package depth 283 mm Package height 173 mm Package weight 1.18 kg
Packaging content AC adapter included Yes Manual Yes
Ports & interfaces USB 2.0 ports quantity 2 USB data transfer rates 480 Mbit/s RS-232 ports 2 RJ-45 ports quantity 2 PC Audio in Yes PC Audio out Yes
Weight & dimensions Transmitter width 12.8 cm Transmitter depth 8.69 cm Transmitter height 2.5 cm Transmitter weight 350 g Receiver width 12.8 cm Receiver depth 8.69 cm Receiver height 2.5 cm Receiver weight 340 g
Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 80% Storage relative humidity (H-H) 0 - 80%
$1,484.64 inc GST
