ATEN HDMI HDBASET EXTENDER
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VE812-AT-U
- MPN: VE812-AT-U
ATEN

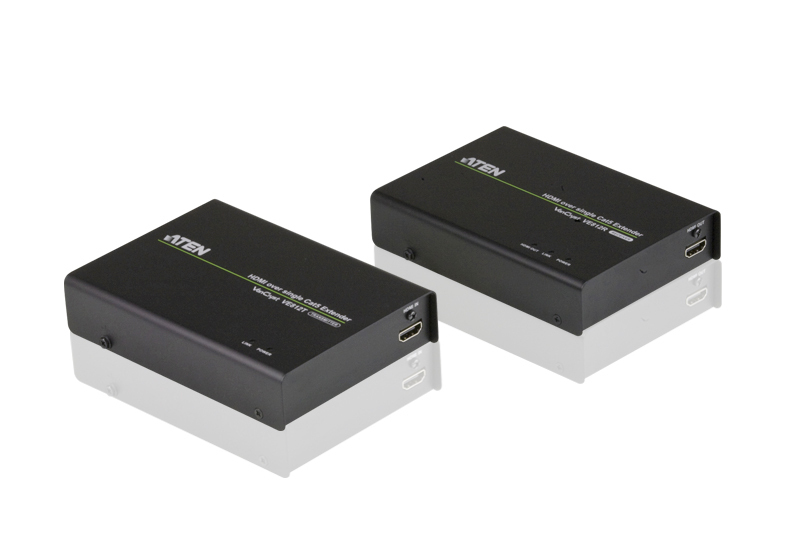

ATEN VE812-AT-U AV extender AV transmitter & receiver Black
- SKU
- CNZ-DD-044599
- MPN
- VE812-AT-U
- Rating
- No reviews yet
−11%
Overview
The VE812 HDMI over Single Cat 5 Extender enables an HDMI display to be located up to 100 meters away from the source device. It can conveniently be extended using only one Cat 5e cable, which is cost-effective.
The VE812 not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k x 2k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display.
The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.
The VE812 not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k x 2k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display.
The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.
Key features
- Type: AV transmitter & receiver
- Maximum resolution: 4000 x 2000 pixels
- Cable types supported: Cat5e
- Maximum transfer distance: 100 m
- LED indicators: Yes
- Supported video modes: 1080p
- Product colour: Black
- Connectivity technology: Wired
- Ethernet LAN: Yes
- RJ-45 input ports: 1
- RJ-45 output ports: 1
- HDMI in: 1
- Number of HDMI outputs: 1
- DC-in jack: Yes
- Operating voltage: 5.3 V
- External power adapter: Yes
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Receiver dimensions (WxDxH): 103 x 141.7 x 30 mm
- Receiver weight: 400 g
- Transmitter dimensions (WxDxH): 103 x 141.7 x 30 mm
- Transmitter weight: 400 g
- Compliance certificates: RoHS
Specifications
Power
| Operating voltage | 5.3 V |
|---|---|
| External power adapter | Yes |
Features
| Type | AV transmitter & receiver |
|---|---|
| Maximum resolution | 4000 x 2000 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 100 m |
| LED indicators | Yes |
| Supported video modes | 1080p |
| Product colour | Black |
Technical details
| Compliance certificates | RoHS |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
Weight & dimensions
| Receiver dimensions (WxDxH) | 103 x 141.7 x 30 mm |
|---|---|
| Receiver weight | 400 g |
| Transmitter dimensions (WxDxH) | 103 x 141.7 x 30 mm |
| Transmitter weight | 400 g |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Questions
