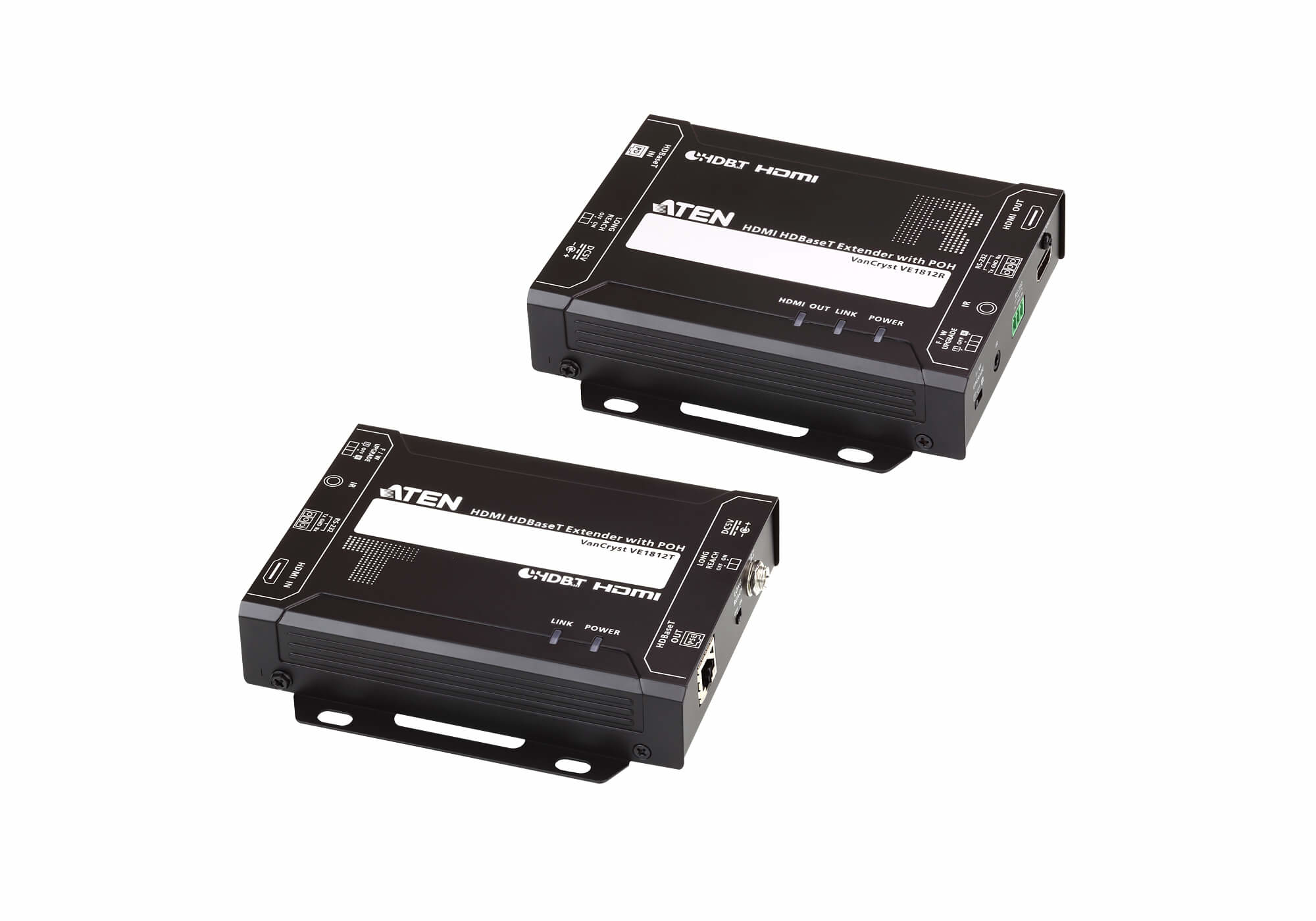

ATEN HDMI HDBASET EXTENDER WITH POH
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VE1812-AT-U
- MPN: VE1812-AT-U
−11%
Overview
The VE1812 HDMI HDBaseT Extender with POH is the ideal solution for connecting equipment in remote locations up to 100m over a single Cat 5e / 6 / 6a cable. With Long Reach Mode enabled, the VE1812 can extend HDMI signal up to 150m @1080p.
1x VE1812 HDMI HDBaseT Transmitter with POH
1x VE1812 HDMI HDBaseT Receiver with POH
1x 0AD8-1F05-30M1 Power Adapter
1x 2XRT-0004G IR Transmitter
1x 2XRT-0003G-1 IR Receiver
2x RS-232 Terminal Blocks
1x User Instructions
1x VE1812 HDMI HDBaseT Transmitter with POH
1x VE1812 HDMI HDBaseT Receiver with POH
1x 0AD8-1F05-30M1 Power Adapter
1x 2XRT-0004G IR Transmitter
1x 2XRT-0003G-1 IR Receiver
2x RS-232 Terminal Blocks
1x User Instructions
Key features
- Type: AV transmitter & receiver
- Maximum resolution: 4096 x 2160 pixels
- Cable types supported: Cat5e, Cat6, Cat6a
- Maximum transfer distance: 150 m
- LED indicators: Yes
- Supported video modes: 1080p
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- Bandwidth: 10.2 Gbit/s
- Bandwidth: 340 MHz
- HDCP: Yes
- Material: Metal
- 3D: Yes
- Firmware upgradeable: Yes
- Consumer Electronics Control (CEC) support: Yes
- Impedance: 100 Ω
- HDCP version: 2.2
- Product colour: Black
- Connectivity technology: Wired
- Ethernet LAN: Yes
- RJ-45 input ports: 1
- RJ-45 output ports: 1
- HDBaseT port: Yes
- HDMI in: 1
- Number of HDMI outputs: 1
Specifications
Power
| Operating voltage (transmitter) | 5 V |
|---|---|
| Operating voltage (receiver) | 5 V |
| Power consumption (transmitter) (max) | 3.2 W |
| Power consumption (receiver) (max) | 5.33 W |
| External power adapter | Yes |
Features
| Type | AV transmitter & receiver |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 150 m |
| LED indicators | Yes |
| Supported video modes | 1080p |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Firmware upgradeable | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| Impedance | 100 Ω |
| HDCP version | 2.2 |
| Product colour | Black |
Logistics data
| Master (outer) case width | 292 mm |
|---|---|
| Master (outer) case length | 517 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 6.98 kg |
| Master (outer) case net weight | 6.5 kg |
| Products per master (outer) case | 5 pc(s) |
Packaging data
| Quantity per pack | 1 pc(s) |
|---|---|
| Package width | 100 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.4 kg |
Packaging content
| AC adapter included | Yes |
|---|---|
| Quick start guide | Yes |
Technical details
| Compliance certificates | RoHS |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Video in | 1 |
| Video out | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Weight & dimensions
| Weight | 1.3 kg |
|---|---|
| Receiver dimensions (WxDxH) | 123 x 140.4 x 30 mm |
| Receiver weight | 450 g |
| Transmitter dimensions (WxDxH) | 123 x 140.4 x 30 mm |
| Transmitter weight | 470 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
