ATEN HDMI HDBASET-LITE RECEIVER WITH SCALER

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VE805R-AT-U
  • MPN: VE805R-AT-U
ATEN

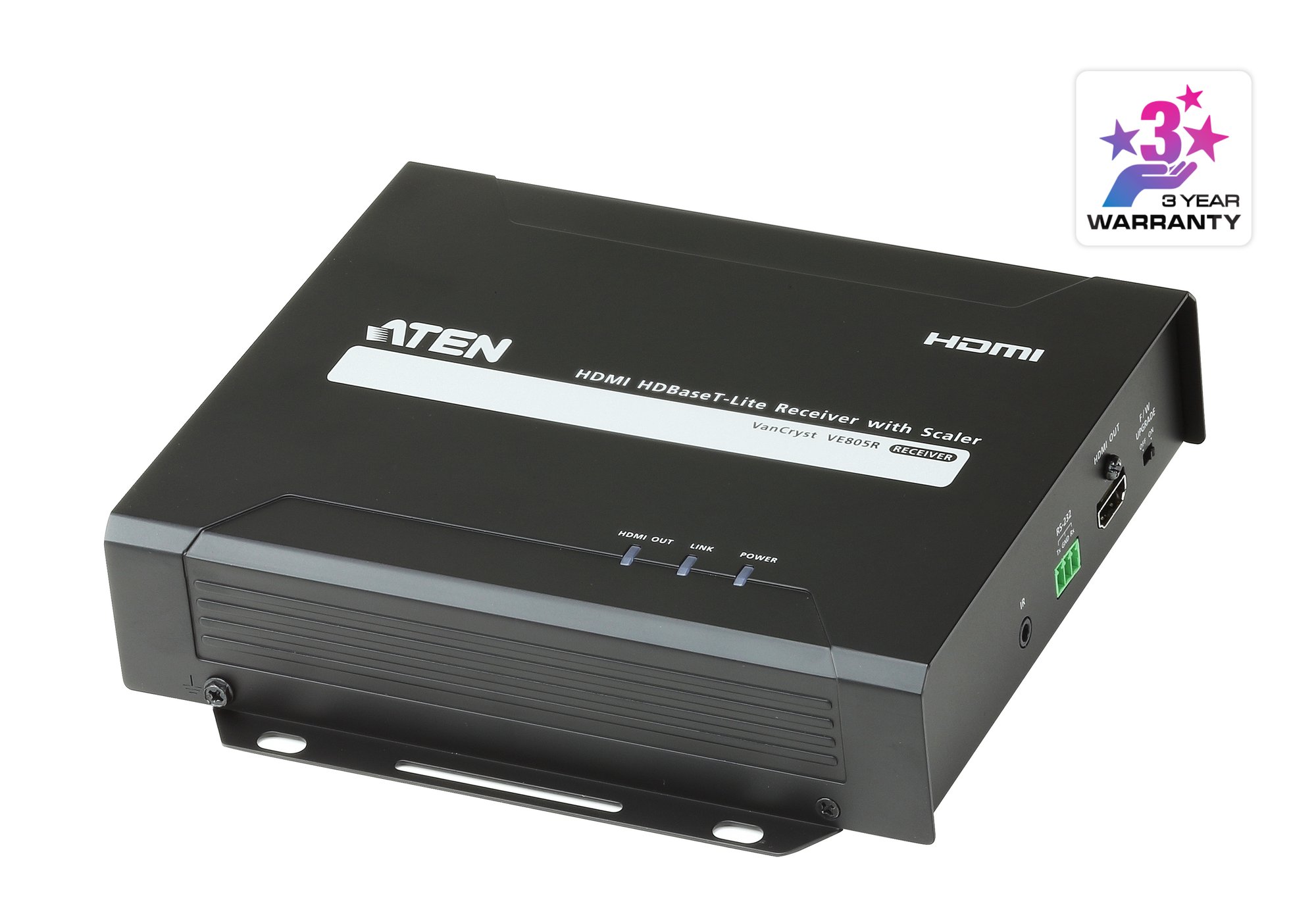

ATEN VE805R-AT-U AV extender AV receiver Black

Our SKU
MPN

Overview

The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.

With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch™ functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.

Key features

  • Type: AV receiver
  • Maximum resolution: 1920 x 1080 pixels
  • Cable types supported: Cat5e, Cat6, Cat6a
  • Maximum transfer distance: 70 m
  • RS-232 pass-through: Yes
  • Supported video modes: 1080p
  • Bandwidth: 6.75 Gbit/s
  • Bandwidth: 225 MHz
  • On/off switch: Yes
  • HDCP: Yes
  • Material: Metal
  • Wall mountable: Yes
  • Impedance: 100 Ω
  • HDCP version: 1.4
  • Product colour: Black
  • Connectivity technology: Wired
  • Ethernet LAN: Yes
  • RJ-45 input ports: 1
  • Number of HDMI outputs: 1
  • HDMI version: 1.4
  • RS-232 input ports: 1
  • Remote (IR) input: 1
  • DC-in jack: Yes
  • Power source type: DC

Specifications

Power

Power source typeDC
Operating voltage5 V
Power consumption (typical)9.5 W

Features

TypeAV receiver
Maximum resolution1920 x 1080 pixels
Cable types supportedCat5e, Cat6, Cat6a
Maximum transfer distance70 m
RS-232 pass-throughYes
Supported video modes1080p
Bandwidth225 MHz
On/off switchYes
HDCPYes
MaterialMetal
Wall mountableYes
Impedance100 Ω
HDCP version1.4
Product colourBlack

Packaging data

Quantity per pack1 pc(s)

Ports & interfaces

Connectivity technologyWired
Ethernet LANYes
RJ-45 input ports1
Number of HDMI outputs1
HDMI version1.4
RS-232 input ports1
Remote (IR) input1
DC-in jackYes

Weight & dimensions

Receiver dimensions (WxDxH)169.2 x 181.8 x 42 mm
Receiver weight830 g

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Questions

$1,216.69inc GST
