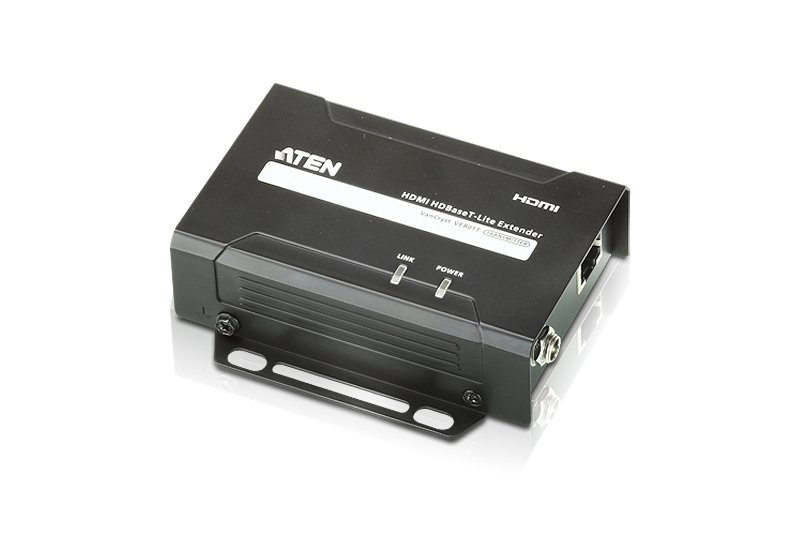

ATEN HDMI HDBASET-LITE TRANSMITTER

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VE801T-AT-U
  • MPN: VE801T-AT-U
ATEN

ATEN VE801T-AT-U AV extender AV transmitter Black

Our SKU
MPN

Overview

The VE801T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801T all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801T is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended at great distances.

Key features

  • Type: AV transmitter
  • Maximum resolution: 3840 x 2160 pixels
  • Cable types supported: Cat5, Cat6, Cat6a
  • Maximum transfer distance: 70 m
  • LED indicators: Yes
  • Supported video modes: 1080p
  • Bandwidth: 340 MHz
  • HDCP: Yes
  • Material: Metal
  • Product colour: Black
  • Connectivity technology: Wired
  • Ethernet LAN: Yes
  • RJ-45 output ports: 1
  • HDMI in: 1
  • DC-in jack: Yes
  • Power consumption (typical): 1.85 W
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 87 mm
  • Depth: 103 mm
  • Height: 30 mm
  • Weight: 240 g
  • Quantity per pack: 1 pc(s)

Specifications

Power

Power consumption (typical)1.85 W

Features

TypeAV transmitter
Maximum resolution3840 x 2160 pixels
Cable types supportedCat5, Cat6, Cat6a
Maximum transfer distance70 m
LED indicatorsYes
Supported video modes1080p
Bandwidth340 MHz
HDCPYes
MaterialMetal
Product colourBlack

Packaging data

Quantity per pack1 pc(s)

Packaging content

AC adapter includedYes

Technical details

Compliance certificatesRoHS

Ports & interfaces

Connectivity technologyWired
Ethernet LANYes
RJ-45 output ports1
HDMI in1
DC-in jackYes

Weight & dimensions

Width87 mm
Depth103 mm
Height30 mm
Weight240 g

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Questions

$287.49inc GST
