ATEN HDMI HDBASET RECEIVER

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VE801R-AT-U
  • MPN: VE801R-AT-U
ATEN

ATEN HDMI Receiver only over 1 CAT5e/6 Cable (70m) ,4K /…

Our SKU
MPN
Barcode

Overview

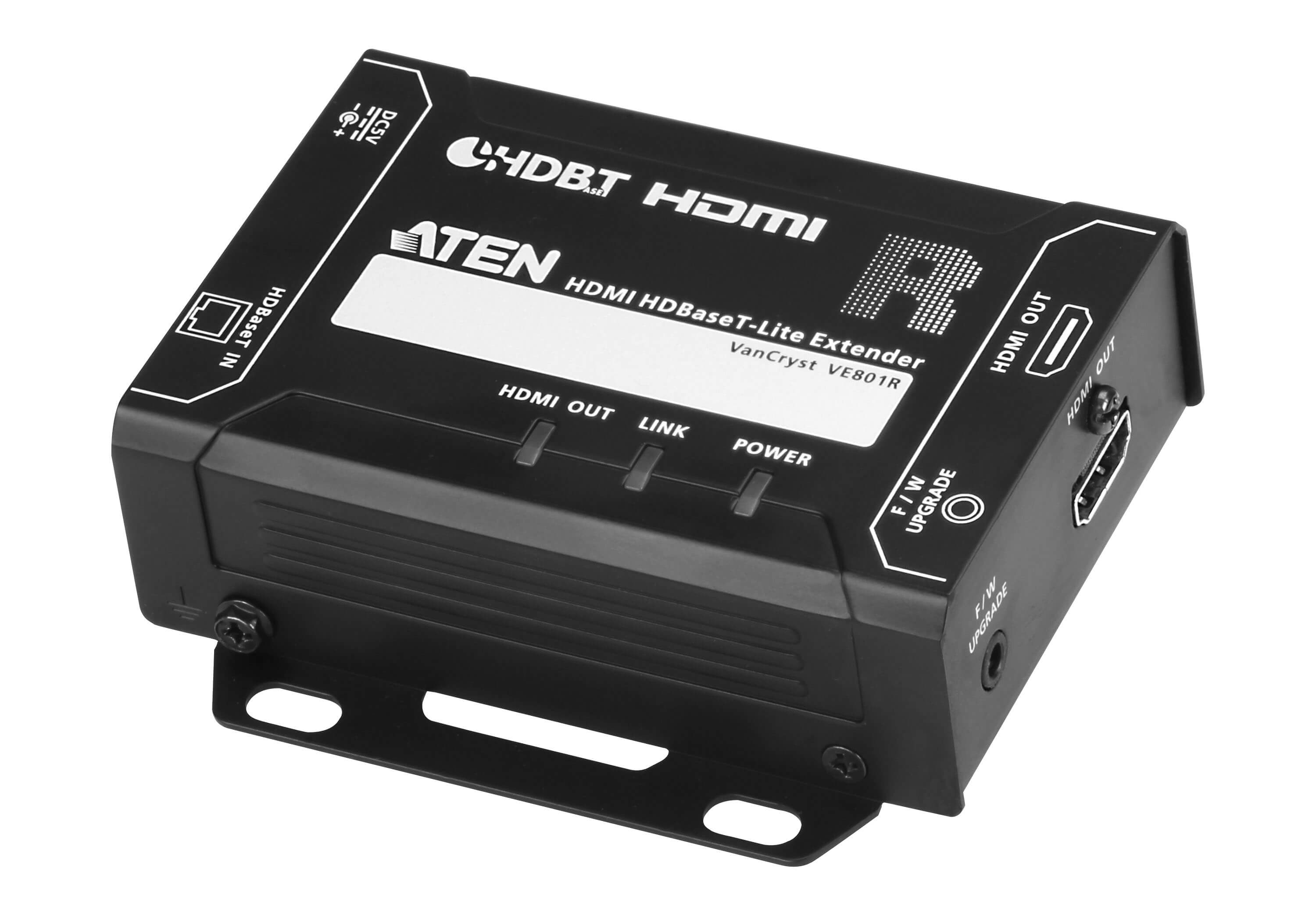

The VE801R HDMI HDBaseT-Lite Receiver incorporating connects with HDBaseT transmitters* to extend signal up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801R all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801R is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.

* Compatible HDBaseT Transmitter Units: VE801T

Key features

  • Type: AV receiver
  • Maximum resolution: 3840 x 2160 pixels
  • Cable types supported: Cat5e, Cat6, Cat6a
  • Maximum transfer distance: 70 m
  • LED indicators: Yes
  • Supported video modes: 1080p
  • Bandwidth: 340 MHz
  • HDCP: Yes
  • Material: Metal
  • Product colour: Black
  • Ethernet LAN: Yes
  • RJ-45 input ports: 1
  • Number of HDMI outputs: 1
  • DC-in jack: Yes
  • Power consumption (typical): 4.23 W
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Dimensions (WxDxH): 87 x 103 x 30 mm
  • Weight: 250 g
  • AC adapter included: Yes
  • Compliance certificates: RoHS

Specifications

Power

Power consumption (typical)4.23 W

Features

TypeAV receiver
Maximum resolution3840 x 2160 pixels
Cable types supportedCat5e, Cat6, Cat6a
Maximum transfer distance70 m
LED indicatorsYes
Supported video modes1080p
Bandwidth340 MHz
HDCPYes
MaterialMetal
Product colourBlack

Packaging content

AC adapter includedYes

Technical details

Compliance certificatesRoHS

Ports & interfaces

Ethernet LANYes
RJ-45 input ports1
Number of HDMI outputs1
DC-in jackYes

Weight & dimensions

Dimensions (WxDxH)87 x 103 x 30 mm
Weight250 g

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Questions

$292.09inc GST
