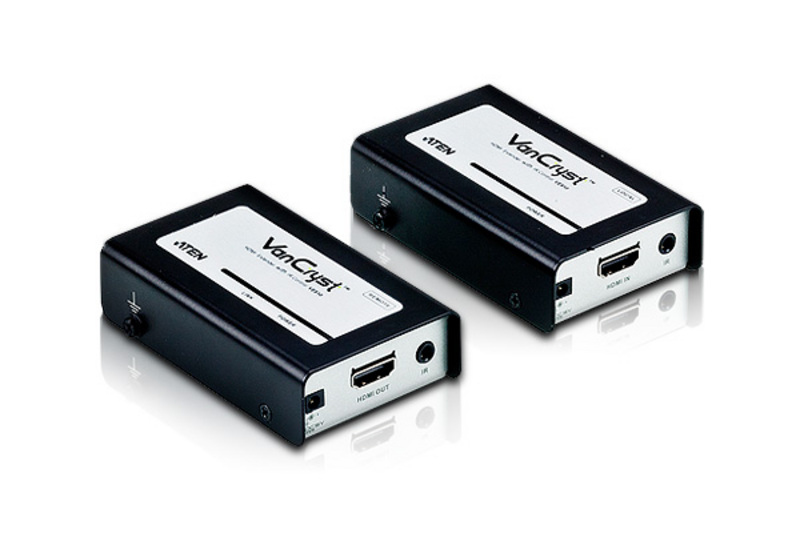

The VE810 HDMI Extender extends your HDMI display up to 60 m from your HDMI source device using two Cat 5e cables. In addition, VE810 is equipped with IR signaling pass-through which allows the IR channel to control from the remote to local unit, to control the HDMI source, or from the local to remote unit, to control the display device.
For flexibility and convenience, the VE810 setup requires only one power adapter for both units. The VE810R remote unit will function without the need of an additional power adapter because it will be powered by the VE810 local unit.
Key features
Type: AV transmitter & receiver
Maximum resolution: 1920 x 1200 pixels
Cable types supported: Cat5e
Maximum transfer distance: 60 m
Audio system: Multichannel
LED indicators: Yes
Supported video modes: 1080i, 1080p, 480p, 720p
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Bandwidth: 6.75 Gbit/s
Material: Metal
Impedance: 100 Ω
Product colour: Black
Connectivity technology: Wired
RJ-45 input ports: 2
RJ-45 output ports: 2
HDMI in: 1
Number of HDMI outputs: 1
Audio input: 1
Audio output: 1
DC-in jack: Yes
Operating voltage: 5 V
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Specifications
Power
Operating voltage
5 V
Features
Type
AV transmitter & receiver
Maximum resolution
1920 x 1200 pixels
Cable types supported
Cat5e
Maximum transfer distance
60 m
Audio system
Multichannel
LED indicators
Yes
Supported video modes
1080i, 1080p, 480p, 720p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
