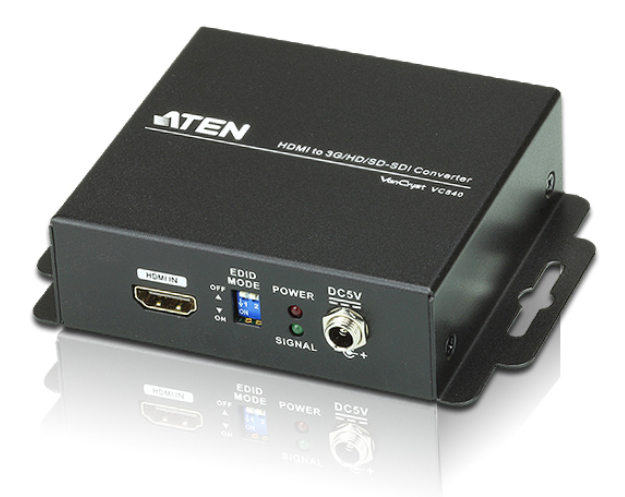

ATEN VC840-AT-U video signal converter

SKU: CNZ-DD-044547
MPN: VC840-AT-U
Rating: No reviews yet

ATEN HDMI TO 3G/HD/SD-SDI CONVERTER — ATEN

Overview

The VC840 HDMI to 3G/HD/SD SDI Converter provides a professional way to exchange high definition signals in real time. The SDI and HDMI signal conversion is 100% digital and guarantees no loss of quality for both the audio and video transmission. The VC840 provides 2 low jitter SDI outputs for dual display. The VC840 is the most dependable way to convert signals with confidence when monitoring in any post or broadcast application.

Key features

Extended display identification data (EDID): Yes
Product colour: Black
Housing material: Metal
Supported video modes: 720p, 1080i, 1080p
Bandwidth: 2.97 Gbit/s
Bandwidth: 148.5 MHz
Host interface: HDMI
Output interface: BNC
Video in: HDMI
Video out: 2 x BNC
Audio output: Analog 2 x RCA, Digital 1 x RCA
DC-in jack: Yes
Power consumption (typical): 3.225 W
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 90%
Width: 107 mm
Depth: 122 mm
Height: 30.4 mm
Weight: 290 g

At a glance

Power consumption (typical)	3.225 W
Supported video modes	720p, 1080i, 1080p
Bandwidth	148.5 MHz
Extended display identification data (EDID)	Yes
Product colour	Black
Housing material	Metal
Host interface	HDMI
Output interface	BNC

All 19 specifications

Specifications

Power

Power consumption (typical)	3.225 W

Video

Supported video modes	720p, 1080i, 1080p
Bandwidth	148.5 MHz

Features

Extended display identification data (EDID)	Yes
Product colour	Black
Housing material	Metal

Ports & interfaces

Host interface	HDMI
Output interface	BNC
Video in	HDMI
Video out	2 x BNC
Audio output	Analog 2 x RCA, Digital 1 x RCA
DC-in jack	Yes

Weight & dimensions

Width	107 mm
Depth	122 mm
Height	30.4 mm
Weight	290 g

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%

Questions

$525.54inc GST
