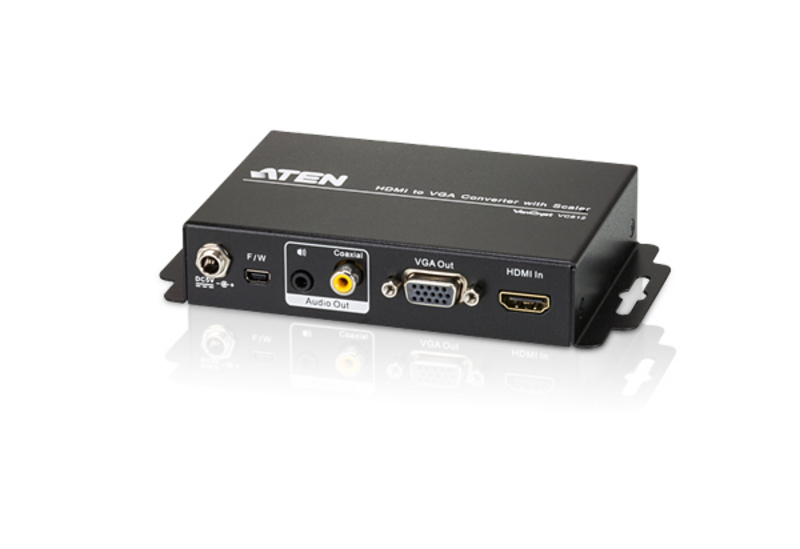

The VC812 HDMI to VGA converter with Scaler offers an easy and convenient way of converting HDMI input signals into analog video (VGA). The VC812 carries a high-performing scaling engine that converts the video resolution to give you the best image quality. 1 x VC812 HDMI to VGA Converter with Scaler 1 x 0AD6-1F05-26EG Power Adapter 1 x Software CD 1 x User Instructions
Key features
Converter type: Scaler video converter
On Screen Display (OSD): Yes
LED indicators: Yes
Product colour: Black
Housing material: Metal
Maximum video resolution: 1920 x 1200 pixels
Video resolutions: 800 x 600,1024 x 768,1280 x 1024,1280 x 720,1400 x 1050,1600 x 1200,1680 x 1050,1920 x 1200
Supported video modes: 480i, 480p, 576i, 576p, 1080i, 1080p
Host interface: HDMI
Output interface: VGA
VGA (D-Sub) output ports: 1
3.5 mm connector: Yes
DC-in jack: Yes
USB powered: No
Input voltage: 5 V
Compliance certificates: RoHS
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 90%
Width: 83 mm
Depth: 110 mm
Height: 28 mm
Weight: 400 g
AC adapter included: Yes
Specifications
Power
USB powered
No
Input voltage
5 V
Video
Maximum video resolution
1920 x 1200 pixels
Video resolutions
800 x 600,1024 x 768,1280 x 1024,1280 x 720,1400 x 1050,1600 x 1200,1680 x 1050,1920 x 1200
