ATEN SMALL FORM HDMI HDBASET EXTENDER
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VE811-AT-U
- MPN: VE811-AT-U
−11%
Overview

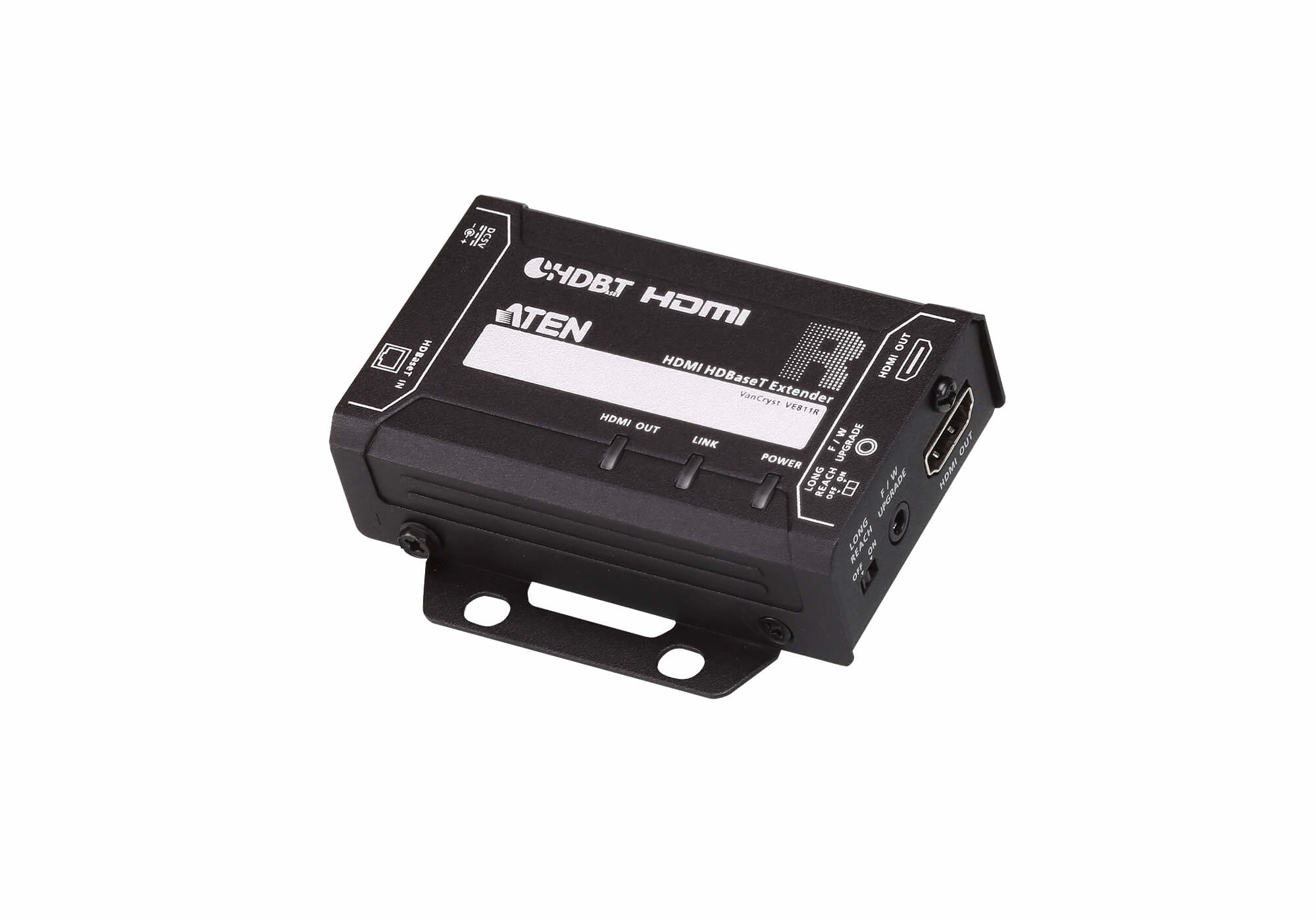

The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum HDMI connection up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE811 meets HDMI Specification features including 3D, Deep Color, HD lossless audio formats and CEC pass-through. It supports Dolby Digital 5.1, DTS HD audio and video signals at resolutions up to 4K. In addition, the VE811 supports long reach mode, providing an effective means for extending HDMI signals up to 150m over a single Cat 5e/6 cable.
Pushing the technology and design to the limit, the compact design makes the VE811 easy to mount in any location. Engineered for today’s digital trends, the VE811 is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.
Pushing the technology and design to the limit, the compact design makes the VE811 easy to mount in any location. Engineered for today’s digital trends, the VE811 is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.
Key features
- Type: AV transmitter & receiver
- Maximum resolution: 4096 x 2160 pixels
- Cable types supported: Cat5e, Cat6, Cat6a
- Maximum transfer distance: 150 m
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- Bandwidth: 10.2 Gbit/s
- HDCP: Yes
- Material: Metal
- 3D: Yes
- Rack mounting: Yes
- Firmware upgradeable: Yes
- Consumer Electronics Control (CEC) support: Yes
- Plug and Play: Yes
- Impedance: 100 Ω
- Product colour: Black
- Connectivity technology: Wired
- Ethernet LAN: Yes
- HDMI in: 1
- Number of HDMI outputs: 1
- DC-in jack: Yes
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Receiver dimensions (WxDxH): 73 x 86.4 x 24.7 mm
Specifications
Features
| Type | AV transmitter & receiver |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 150 m |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Bandwidth | 10.2 Gbit/s |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Rack mounting | Yes |
| Firmware upgradeable | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| Plug and Play | Yes |
| Impedance | 100 Ω |
| Product colour | Black |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN | Yes |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
Weight & dimensions
| Receiver dimensions (WxDxH) | 73 x 86.4 x 24.7 mm |
|---|---|
| Receiver weight | 170 g |
| Transmitter dimensions (WxDxH) | 73 x 86.4 x 24.7 mm |
| Transmitter weight | 160 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
