ATEN SMF 10G SFP+ TRANSCEIVER MODULE, 10KM, G.652D, LC Networking > Network Accessories

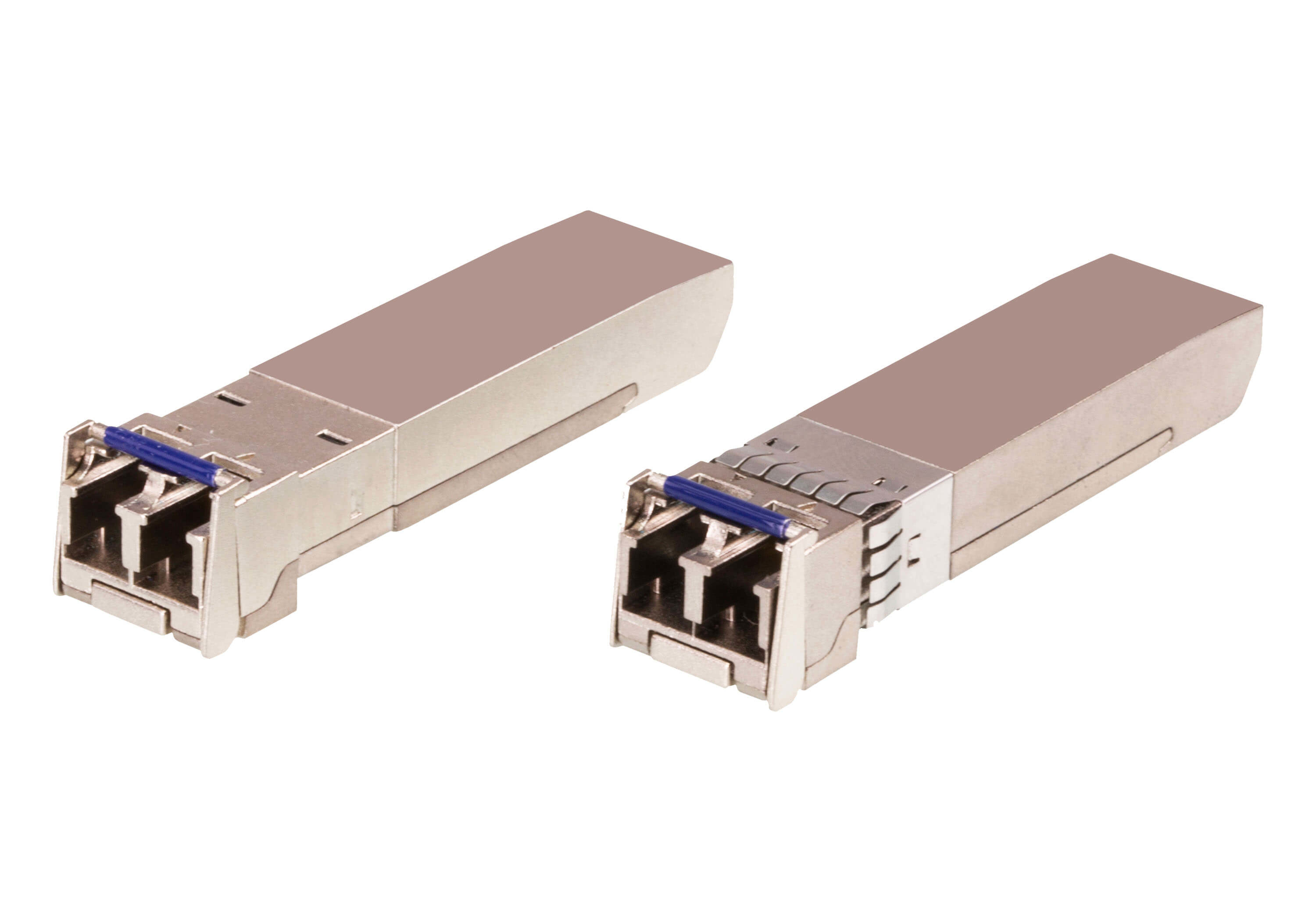

Brand: ATEN Category: Network Accessories SKU: 2A-142G MPN: 2A-142G Home Network Accessories ATEN ATEN ATEN 10G Single-Mode/10KM Fiber SFP+ Module Overview Specifications Questions Overview The 2A-142G 10G Single-Mode/10KM Fiber SFP+ Module is designed for use in 10GbE Ethernet environment that allows you to connect a single-mode Gigabit Ethernet network cable to a network switch’s SFP+ port.The 2A-142G provides 10GbE connectivity at distances up to 10 kilometers. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-142G works with single-mode-fiber (SMF) connections and operates at a nominal wavelength of 1310 nm. This makes the module a cost-effective and highperformance transceiver to significantly increase the span of a compatible network switch.
Key features SFP transceiver type: Fiber optic Maximum data transfer rate: 10000 Mbit/s Interface type: SFP+ Single-mode fiber (SMF) supported: Yes Networking standards: IEEE 802.3ae Digital Diagnostics Monitoring (DDM): Yes Product colour: Stainless steel Hot-Plug support: Yes Compliance certificates: RoHS Certification: RoHS Operating temperature (T-T): 0 - 70 °C Storage temperature (T-T): -40 - 85 °C Width: 14.6 mm Depth: 55.9 mm Height: 13 mm Weight: 44 g Quantity per pack: 2 pc(s) Package width: 42 mm Package depth: 124 mm Package height: 129 mm Package weight: 80 g Master (outer) case net weight: 440 g Master (outer) case width: 237 mm Master (outer) case length: 288 mm At a glance Product colour Stainless steel Hot-Plug support Yes SFP transceiver type Fiber optic Maximum data transfer rate 10000 Mbit/s Interface type SFP+ Single-mode fiber (SMF) supported Yes Networking standards IEEE 802.3ae Digital Diagnostics Monitoring (DDM) Yes
All 28 specifications Specifications Features Product colour Stainless steel Hot-Plug support Yes
Performance SFP transceiver type Fiber optic Maximum data transfer rate 10000 Mbit/s Interface type SFP+ Single-mode fiber (SMF) supported Yes Networking standards IEEE 802.3ae Digital Diagnostics Monitoring (DDM) Yes
Certificates Compliance certificates RoHS Certification RoHS
Logistics data Master (outer) case net weight 440 g Master (outer) case width 237 mm Master (outer) case length 288 mm Harmonized System (HS) code 85369010 Master (outer) case height 157 mm Master (outer) case gross weight 1.27 kg Products per master (outer) case 10 pc(s)
Packaging data Package width 42 mm Package depth 124 mm Package height 129 mm Package weight 80 g
Weight & dimensions Width 14.6 mm Depth 55.9 mm Height 13 mm Weight 44 g
Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -40 - 85 °C
$611.79 inc GST
