ATEN TRUE 4K HDMI REPEATER WITH AUDIO EMBEDDER AND DE-EMBEDDER

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VC882-AT-U
  • MPN: VC882-AT-U
ATEN

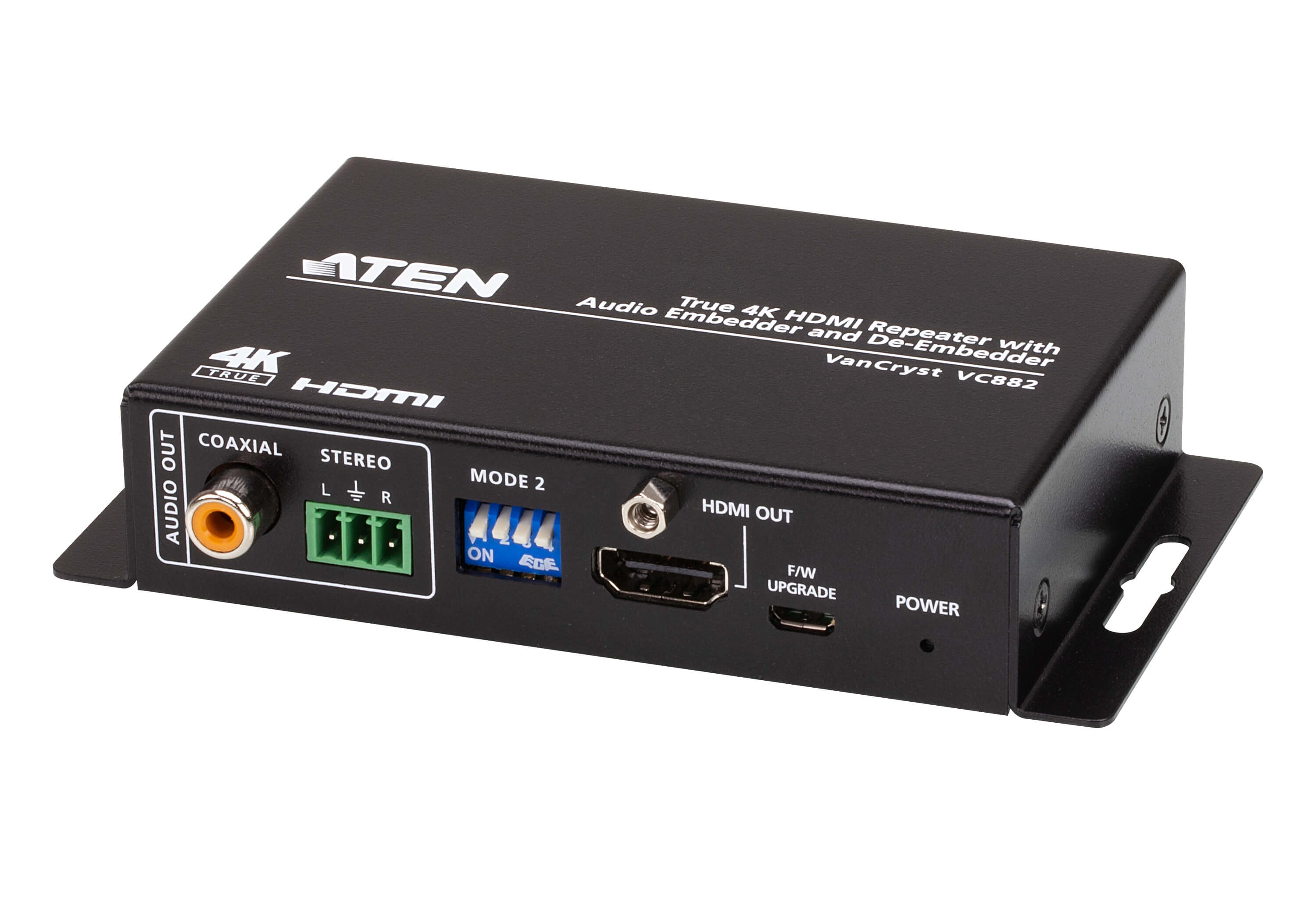

ATEN VC882 AV extender AV repeater Black

SKU
CNZ-DD-044550
MPN
VC882-AT-U

Overview

The VC882 is a True 4K HDMI Repeater with Audio Embedder and De-Embedder capable of embedding or de-embedding the HDMI audio signal, while supporting the HDMI signal transmission distance up to 5 meters with True 4K resolution. Apart from embedding a separate audio to an outgoing HDMI signal, the VC882 also allows audio extraction from the HDMI signal, and outputs the extracted signal through an alternative audio system.

In terms of the audio aspect, the VC882 works with versatile pass-through of HDMI audio formats – LPCM2.0, Dolby Digital 2.0, Dolby Digital 5.1 and DTS Digital 5.1. The VC882 also supports ARC function which eliminates the need of bulky cable setups when connecting an AV receiver, or a home theater system to a TV. When it comes to the video aspect, the VC882 supports True 4K (4096 x 2160 @ 60Hz 4:4:4) in HDR10, HDR10+, Dolby Vision and Hybrid Log-Gamma (HLG) formats to provide staggeringly crisp images. It is HDCP 2.2-compliant for content protection. The compact enclosure design, True 4K signal transmission, and embedding / de-embedding capability have made the VC882 ideal for training and conference rooms, video production, and home theater installations.

Key features

  • Type: AV repeater
  • Maximum resolution: 4096 x 2160 pixels
  • Maximum transfer distance: 5 m
  • Maximum refresh rate: 60 Hz
  • LED indicators: Yes
  • Supported graphics resolutions: 4096 x 2160
  • Bandwidth: 18 Gbit/s
  • Bandwidth: 600 MHz
  • HDCP: Yes
  • Material: Metal
  • Impedance: 100 Ω
  • HDCP version: 2.2
  • Product colour: Black
  • Connectivity technology: Wired
  • HDMI in: 1
  • Number of HDMI outputs: 1
  • HDMI version: 2.0
  • USB ports quantity: 1
  • USB connector type: Micro-USB
  • Digital audio coaxial in: 1
  • Digital audio coaxial out: 1
  • DC-in jack: Yes
  • External power adapter: Yes
  • Operating temperature (T-T): 0 - 40 °C

Specifications

Power

External power adapterYes

Features

TypeAV repeater
Maximum resolution4096 x 2160 pixels
Maximum transfer distance5 m
Maximum refresh rate60 Hz
LED indicatorsYes
Supported graphics resolutions4096 x 2160
Bandwidth600 MHz
HDCPYes
MaterialMetal
Impedance100 Ω
HDCP version2.2
Product colourBlack

Packaging data

Quantity per pack1 pc(s)
Package width250 mm
Package depth325 mm
Package height175 mm
Package weight970 g

Packaging content

AC adapter includedYes
ManualYes

Ports & interfaces

Connectivity technologyWired
HDMI in1
Number of HDMI outputs1
HDMI version2.0
USB ports quantity1
USB connector typeMicro-USB
Digital audio coaxial in1
Digital audio coaxial out1
DC-in jackYes

Weight & dimensions

Width82.2 mm
Depth122.2 mm
Height25 mm
Weight240 g

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Questions
