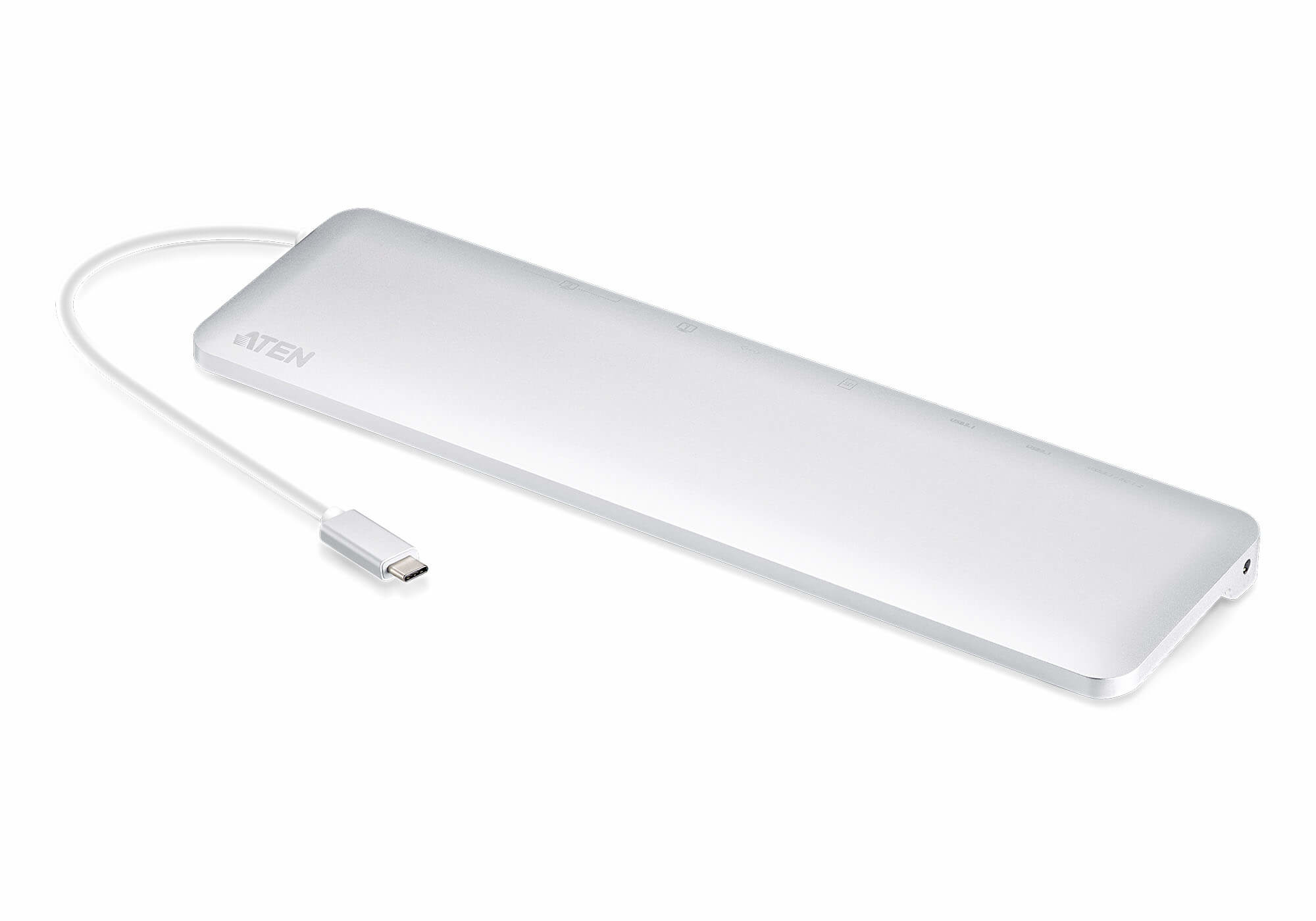

ATEN USB-C MULTIPORT DUAL VIEW DOCK WITH POWER PASS-THROUGH 60W

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: UH3234-AT
  • MPN: UH3234-AT
ATEN

ATEN USB-C Multiport Dock with Power Pass-Thr

Our SKU
MPN
Barcode

Overview

The ATEN UH3234 USB-C Ultra-Slim Multiport Dock is an ultra-sleek, one-step total upgrade for your laptop that provides all the extra expansion capabilities that you need. Simply use one cable to add up to 10 devices, with power delivery pass-through to boost your productivity with extra HDMI, DisplayPort, VGA, USB 3.1 Gen 1, SD/MMC/MicroSD, Ethernet and Audio connectivity.

With Power Delivery Pass-Through up to 60W, UH3234 can charge your laptop while connected to the docking station. The UH3234 provides power to matched USB-C Windows or Mac laptops with PD Profile specifications of 20V/ 3A, 12V/3A, 9V/3A and 5V/3A.

Enjoy stunning 4K video or a dual HD monitor setup with HDMI, VGA, and DisplayPort functionality. The UH3234 routes video from a source computer to a DisplayPort or HDMI monitor via a single cable while maintaining the highest quality 4K resolution. You can also mirror or extend your Windows USB-C laptop to two monitors in 1080P.

This ergonomic, plug-and-play device (no software drivers are needed) is compatible with all major operating systems (Windows and OS X). Save space on your desktop by placing your laptop directly on top of the lightweight yet rugged docking station or display the dock next to your monitors for a stylish, minimalist workstation.

Key features

  • Connectivity technology: Wired
  • Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
  • USB Power Delivery (USB PD): Yes
  • USB Power Delivery revision: 2.0
  • USB Power Delivery up to: 60 W
  • HDMI ports quantity: 1
  • VGA (D-Sub) ports quantity: 1
  • DisplayPorts quantity: 1
  • Combo headphone/mic port: Yes
  • Headphone outputs: 1
  • Ethernet LAN: Yes
  • Ethernet LAN (RJ-45) ports: 1
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
  • Maximum memory card size: 128 GB
  • Maximum digital resolution: 3840 x 2160 pixels
  • Maximum analog resolution: 1920 x 1200 pixels
  • Number of displays supported: 2
  • Maximum refresh rate: 60 Hz
  • Product colour: Silver
  • Charging function: Yes

Specifications

Power

Power source typeUSB
Output voltage5 V
Power consumption (typical)15 W

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s

Performance

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
Maximum memory card size128 GB
Maximum digital resolution3840 x 2160 pixels
Maximum analog resolution1920 x 1200 pixels
Number of displays supported2
Maximum refresh rate60 Hz
Product colourSilver
Charging functionYes
Housing materialAluminium

Logistics data

Products per master (outer) case10 pc(s)
Master (outer) case width250 mm
Master (outer) case length360 mm
Master (outer) case height200 mm
Master (outer) case gross weight4.88 kg
Master (outer) case net weight3.21 kg
Harmonized System (HS) code84733020

Packaging data

Quantity per pack1 pc(s)
Package width115 mm
Package depth340 mm
Package height35 mm
Package weight460 g

Packaging content

ManualYes

Technical details

Compliance certificatesRoHS

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB Power Delivery (USB PD)Yes
USB Power Delivery revision2.0
USB Power Delivery up to60 W
HDMI ports quantity1
VGA (D-Sub) ports quantity1
DisplayPorts quantity1
Combo headphone/mic portYes
Headphone outputs1

Weight & dimensions

Width75 mm
Depth280 mm
Height14.5 mm
Weight321 g

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 90%
